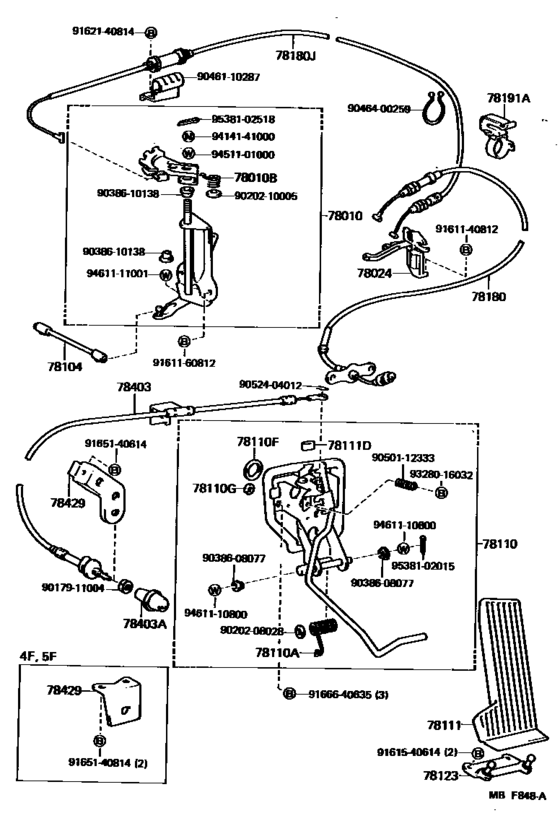

Accelerator Link ([08.1983 - ] (8308- )LS120..RHD) Diagram Toyota CROWN/ MAJESTA
- Year
- 1983 - 1987
- Sales region
- Europe
- Frame
- LS120
- grade
- STD
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 08.1983
- To
- 08.1987
- Gear Shift Type
- 4H
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78010B
|
78010B
90508-16010 Spring, Torsion (For Accelerator Link)[08.1983 - 08.1987] LS120 |
90508-16010 |
US $5.39 |
||
|
78024
|
78024
78024-30040
Bracket Sub-Assy, Accelerator Control Cable
[08.1983 - 01.1984] LS120 |
78024-30040 |
— | ||
|
78024
|
78024
78024-30041 Bracket Sub-Assy, Accelerator Control Cable[01.1984 - 08.1987] LS120 |
78024-30041 |
US $116.48 |
||
|
78104
|
78104
78104-30120
Rod Sub-Assy, Accelerator Connecting, No.2
[08.1983 - 08.1987] LS120 |
78104-30120 |
— | ||
|
78110
|
78110
78120-30360 Rod Assy, Accelerator Pedal[08.1983 - 08.1987] LS120..RHD |
78120-30360 |
US $68.14 |
||
| replacement | |||||
|
78110
|
78110
78120-30470 Rod Assy, Accelerator Pedal[08.1983 - 08.1987] LS120..RHD |
78120-30470 |
US $132.50 |
||
|
78110A
|
78110A
90508-23026 Spring (For Accelerator Pedal Rod)[08.1983 - 08.1987] LS120..RHD |
90508-23026 |
US $3.93 |
||
|
78110F
|
78110F
78129-30050
Seal, No.1 (For Accelerator Pedal Rod)
[08.1983 - 08.1987] LS120,MS12#,YS120..RHD |
78129-30050 |
— | ||
|
78110G
|
78110G
78139-30050
Seal, No.2 (For Accelerator Pedal Rod)
[08.1983 - 08.1987] LS120,MS12#,YS120..RHD |
78139-30050 |
— | ||
|
78111
|
78111
78111-30080 Pedal, Accelerator[08.1983 - 08.1987] LS120,MS12#,YS120..RHD |
78111-30080 |
US $15.14 |
||
| replacement | |||||
|
78111
|
78111
78111-30081 Pedal, Accelerator[08.1983 - 08.1987] LS120,MS12#,YS120..RHD |
78111-30081 |
US $10.13 |
||
|
78111D
|
78111D
78119-30050 Stopper (For Accelerator Pedal)[08.1983 - 08.1987] LS120,MS12#,YS120..RHD |
78119-30050 |
US $2.77 |
||
|
78123
|
78123
78114-30050 Bracket, Accelerator Pedal Support[08.1983 - 08.1987] LS120,MS12#,YS120..RHD |
78114-30050 |
US $7.34 |
||
|
78180
|
78180
78180-30570 Wire Assy, Accelerator[08.1983 - 08.1987] LS120..RHD |
78180-30570 |
US $49.21 |
||
|
78180J
|
78180J
21960-54010 Wire Assy, Accelerator, No.2[08.1983 - 08.1987] LS120 |
21960-54010 |
US $122.30 |
||
|
78191A
|
78191A
78183-30070 Clamp, Accelerator Control Cable[08.1983 - 08.1987] LS120,MS12#,YS120..RHD |
78183-30070 |
US $12.67 |
||
|
78403
|
78403
78401-30080 Cable Sub-Assy, Throttle ControlTHROTTLE CONTROL [08.1983 - 08.1987] LS120..RHD |
78401-30080 |
US $50.23 |
||
|
78403A
|
78403A
78411-30040 Knob, Throttle ControlTHROTTLE CONTROL [08.1983 - 08.1987] LS120 |
78411-30040 |
US $9.46 |
||
|
78429
|
78429
78371-30060 Bracket, Throttle Rod[08.1983 - 08.1987] LS120..RHD..4H |
78371-30060 |
US $13.10 |
||
|
9017911004
|
9017911004
90179-11004 New Genuine Part |
90179-11004 |
US $2.18 |
||
|
9020208028
|
9020208028
90202-08028 New Genuine Part |
90202-08028 |
US $0.96 |
||
|
9020210005
|
9020210005
90202-10005 New Genuine Part |
90202-10005 |
US $1.89 |
||
|
9038608077
|
9038608077
90386-08077 Bush (For Throttle Cam Shaft) |
90386-08077 |
from US $1.44 |
||
|
9038610138
|
9038610138
90386-10138 Bush (For Throttle Cam Shaft) |
90386-10138 |
US $3.84 |
||
|
9046110287
|
9046110287
90461-10287
Clamp (For Accelerator Wire Set)
|
90461-10287 |
— | ||
|
9046400259
|
9046400259
90464-00259 New Genuine Part |
90464-00259 |
US $2.77 |
||
| replacement | |||||
|
9046400259
|
9046400259
90464-00215 New Genuine Part |
90464-00215 |
US $3.06 |
||
|
9050112333
|
9050112333
90501-12333 Spring, Compression (For Throttle Valve) |
90501-12333 |
US $2.18 |
||
|
9052404012
|
9052404012
90524-04012 New Genuine Part |
90524-04012 |
US $5.10 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161540614
|
9161540614
91615-40614 Screw Or Bolt(for Valve Rocker Shaft Lock) |
91615-40614 |
US $1.89 |
||
| replacement | |||||
|
9161540614
|
9161540614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
|
9162140814
|
9162140814
91621-40814 Bolt |
91621-40814 |
US $1.44 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.57 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9166640635
|
9166640635
91666-40635 New Genuine Part |
91666-40635 |
US $1.89 |
||
|
9328016032
|
9328016032
93280-16032 New Genuine Part |
93280-16032 |
US $2.33 |
||
|
9414141000
|
9414141000
94141-41000 NUT |
94141-41000 |
US $2.88 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
US $1.28 |
||
|
9461111001
|
9461111001
94611-11001 Plate, Rear Seat Back Stopper |
94611-11001 |
US $1.28 |
||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $1.60 |
||
|
9538102518
|
9538102518
95381-02518
PIN
|
95381-02518 |
— | ||
