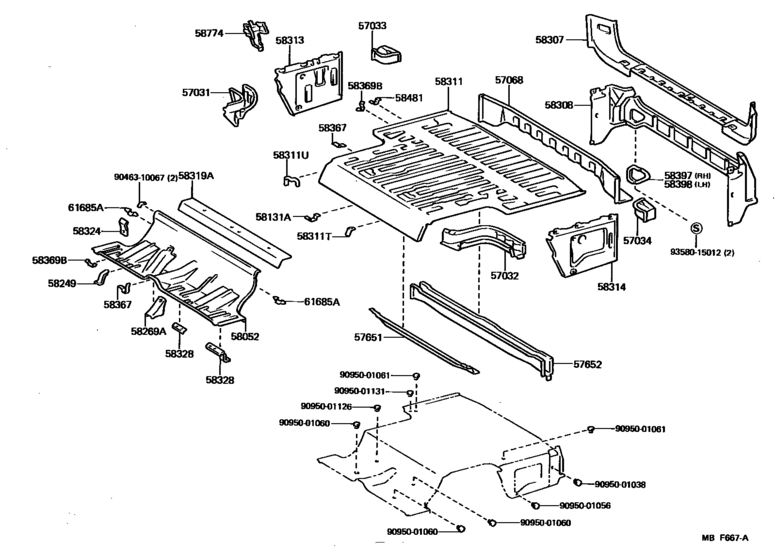

Floor Pan & Lower Back Panel ([08.1983 - ] (8308- )GS126,LS126) Diagram Toyota CROWN/ MAJESTA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- LS126
- grade
- DLX
- body
- V
- ENGINE
- 2L
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1983
- To
- 08.1987
- Gear Shift Type
- 4FC
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57031
|
57031
57031-91705 Bracket Sub-Assy, No.7 Body Mounting, Rh[08.1983 - 08.1987] GS126,LS126 |
57031-91705 |
US $149.97 |
||
| replacement | |||||
|
57031
|
57031
57031-31010 Bracket Sub-Assy, No.7 Body Mounting, Rh[08.1983 - 08.1987] GS126,LS126 |
57031-31010 |
US $147.06 |
||
|
57032
|
57032
57032-91706 Bracket Sub-Assy, No.7 Body Mounting, Lh[08.1983 - 08.1987] GS126,LS126 |
57032-91706 |
US $149.97 |
||
| replacement | |||||
|
57032
|
57032
57032-31010 Bracket Sub-Assy, No.7 Body Mounting, Lh[08.1983 - 08.1987] GS126,LS126 |
57032-31010 |
US $147.06 |
||
|
57033
|
57033
57033-91706 Bracket Sub-Assy, No.8 Body Mounting, Rh[08.1983 - 08.1987] GS126,LS126 |
57033-91706 |
US $99.01 |
||
| replacement | |||||
|
57033
|
57033
57033-31010 Bracket Sub-Assy, No.8 Body Mounting, Rh[08.1983 - 08.1987] GS126,LS126 |
57033-31010 |
US $99.01 |
||
|
57034
|
57034
57034-91706 Bracket Sub-Assy, No.8 Body Mounting, Lh[08.1983 - 08.1987] GS126,LS126 |
57034-91706 |
US $99.01 |
||
| replacement | |||||
|
57034
|
57034
57034-31010 Bracket Sub-Assy, No.8 Body Mounting, Lh[08.1983 - 08.1987] GS126,LS126 |
57034-31010 |
US $99.01 |
||
|
57068
|
57068
57068-91711 Member Sub-Assy, Rear Floor Rear Cross, Inner[08.1983 - 08.1987] GS126,LS126 |
57068-91711 |
US $279.55 |
||
|
57651
|
57651
57605-91704 Member Sub-Assy, Rear Floor Cross, No.1[08.1983 - 08.1987] GS126,LS126 |
57605-91704 |
US $246.06 |
||
|
57652
|
57652
57606-91703 Crossmember, Rear Floor, No.2[08.1983 - 08.1987] GS126,LS126 |
57606-91703 |
US $182 |
||
|
58052
|
58052
58211-91707 Pan Sub-Assy, Center Floor[08.1983 - 08.1987] GS126,LS126 |
58211-91707 |
US $246.06 |
||
|
58131A
|
58131A
58131-12020 Bracket, Mounting, Floor, No.1[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
58131-12020 |
US $3.06 |
||
| replacement | |||||
|
58131A
|
58131A
58131-14030
Bracket, Mounting, Floor, No.1
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
58131-14030 |
— | ||
|
58249
|
58249
58249-91701
Hanger, Parking Brake Return Spring
[08.1983 - 08.1987] GS126,LS126 |
58249-91701 |
— | ||
|
58269A
|
58269A
58269-30050
Bracket, Parking Brake Cable Guide, No.3
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 LH |
58269-30050 |
— | ||
|
58307
|
58307
58307-91704 Panel Sub-Assy, Body Lower Back[08.1983 - 08.1987] GS126,LS126 |
58307-91704 |
US $256.26 |
||
|
58308
|
58308
58308-91703 Panel Sub-Assy, Body Lower Back, Inner[08.1983 - 08.1987] GS126,LS126 |
58308-91703 |
US $329.06 |
||
|
58311
|
58311
58311-91706 Pan, Rear Floor[08.1983 - 08.1987] GS126,LS126 |
58311-91706 |
US $793.52 |
||
|
58311T
|
58311T
90463-10067 Clamp, No.1(For Rear Floor)[08.1983 - 08.1987] LS126 |
90463-10067 |
US $2.62 |
||
|
58313
|
58313
58313-91703 Panel, Rear Floor Side, Rh[08.1983 - 08.1987] GS126,LS126 |
58313-91703 |
US $228.59 |
||
|
58314
|
58314
58314-91704 Panel, Rear Floor Side, Lh[08.1983 - 08.1987] GS126,LS126 |
58314-91704 |
US $151.42 |
||
| replacement | |||||
|
58314
|
58314
58314-31010 Panel, Rear Floor Side, Lh[08.1983 - 08.1987] GS126,LS126 |
58314-31010 |
US $147.06 |
||
|
58319A
|
58319A
58024-91702 Plate, Rear Floor Panel, Front[08.1983 - 08.1987] GS126,LS126 |
58024-91702 |
US $42.37 |
||
|
58324
|
58324
58326-91701
Bracket, Flexible Hose
[08.1983 - 08.1987] GS126,LS126 |
58326-91701 |
— | ||
| replacement | |||||
|
58324
|
58324
58326-31010 Bracket, Flexible Hose Mounting[08.1983 - 08.1987] GS126,LS126 |
58326-31010 |
US $14.41 |
||
|
58328
|
58328
57805-91701 Reinforcement Sub-Assy, Belt Anchor[08.1983 - 08.1987] GS126,LS126 LH |
57805-91701 |
US $14.71 |
||
| replacement | |||||
|
58328
|
58328
57805-31020 Reinforcement Sub-Assy, Belt Anchor[08.1983 - 08.1987] GS126,LS126 LH |
57805-31020 |
US $24.32 |
||
|
58328
|
58328
58161-91702 Reinforcement, Safety Belt Anchorage[08.1983 - 08.1987] GS126,LS126 RH |
58161-91702 |
US $14.56 |
||
| replacement | |||||
|
58328
|
58328
58161-31030 Reinforcement, Safety Belt Anchorage[08.1983 - 08.1987] GS126,LS126 RH |
58161-31030 |
US $14.41 |
||
|
58367
|
58367
58367-91704 Bracket, Fuel Tube Clamp[08.1983 - 08.1987] GS126,LS126 CTR FLOOR |
58367-91704 |
US $14.56 |
||
| replacement | |||||
|
58367
|
58367
58367-31010
Bracket, Fuel Tube
[08.1983 - 08.1987] GS126,LS126 CTR FLOOR |
58367-31010 |
— | ||
|
58397
|
58397
58397-91703 Cover, Lower Back, Outer Rh[08.1983 - 08.1987] GS120,126,LS12#..V,WG |
58397-91703 |
US $30.28 |
||
|
58398
|
58398
58398-91703 Cover, Lower Back, Outer Lh[08.1983 - 08.1987] GS120,126,LS12#..V,WG |
58398-91703 |
US $30.28 |
||
|
58481
|
58481
58481-91701
Plate, Bleether Tube Catch
[08.1983 - 08.1987] GS120,126,LS12#..V,WG |
58481-91701 |
— | ||
| replacement | |||||
|
58481
|
58481
58369-31010 Bracket, Fuel Tube, No.3[08.1983 - 08.1987] GS120,126,LS12#..V,WG |
58369-31010 |
US $10.63 |
||
|
58774
|
58774
58709-91703 Carrier Sub-Assy, Jack[08.1983 - 08.1987] GS126,LS126 |
58709-91703 |
US $170.35 |
||
|
61685A
|
61685A
61685-91602 Bracket, Rear Seat Back Mounting[08.1983 - 08.1987] GS120,126,LS12#..(V,WG)..(DLX,SDX,STD) |
61685-91602 |
US $2.77 |
||
|
9046310067
|
9046310067
90463-10067 Clamp, No.1(For Rear Floor) |
90463-10067 |
US $2.62 |
||
|
9095001038
|
9095001038
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.32 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001061
|
9095001061
90950-01061
Plug, Hole, No.3(For Dash Panel)
|
90950-01061 |
— | ||
| replacement | |||||
|
9095001061
|
9095001061
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $5.76 |
||
|
9095001131
|
9095001131
90950-01131
PLUG HOLE
|
90950-01131 |
— | ||
| replacement | |||||
|
9095001131
|
9095001131
90950-01865 PLUG HOLE |
90950-01865 |
from US $1.31 |
||
|
9358015012
|
9358015012
93580-15012 New Genuine Part |
93580-15012 |
US $1.31 |
||
| replacement | |||||
|
9358015012
|
9358015012
90099-00324 New Genuine Part |
90099-00324 |
US $1.46 |
||
