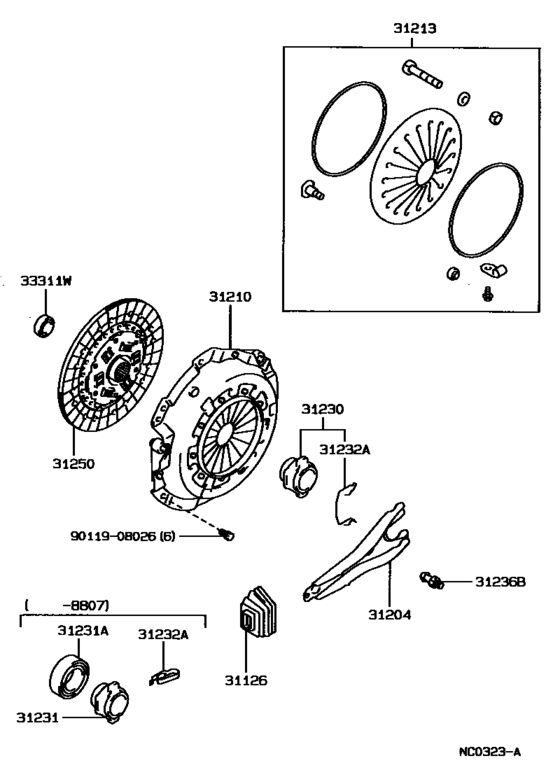

Clutch & Release Fork ([09.1987 - 08.1989] (8709-8908)GS13#,LS13#,MS130..MTM) Diagram Toyota CROWN/ MAJESTA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- LS130
- grade
- DLX
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1987
- To
- 10.1991
- Gear Shift Type
- 5F
- Body Shape
- NOB
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-20070 Boot, Clutch Release Fork[09.1987 - 10.1991] GS13#,LS13#,MS130..MTM |
31126-20070 |
from US $14.70 |
||
|
31204
|
31204
31204-20090 Fork Sub-Assy, Clutch Release[09.1987 - 07.1988] GS13#,LS13#..MTM |
31204-20090 |
US $34.35 |
||
|
31204
|
31204
31204-35050 Fork Sub-Assy, Clutch Release[07.1988 - 10.1991] GS13#,LS13#..MTM |
31204-35050 |
from US $16.95 |
||
|
31210
|
31210
31210-28020 Cover Assy, Clutch[08.1988 - 08.1989] LS13#..MTM..DSL |
31210-28020 |
US $200.93 |
||
| replacement | |||||
|
31210
|
31210
31210-30221 Cover Assy, Clutch[08.1988 - 08.1989] LS13#..MTM..DSL |
31210-30221 |
US $199.47 |
||
|
31210
|
31210
31210-35090
Cover Assy, Clutch
[08.1989 - 10.1991] LS130,136..MTM..DSL |
31210-35090 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-22101 Cover Assy, Clutch[08.1989 - 10.1991] LS130,136..MTM..DSL |
31210-22101 |
from US $194.84 |
||
|
31210
|
31210
31210-36029 Cover Assy, Clutch[09.1987 - 08.1988] LS13#..MTM..DSL |
31210-36029 |
US $200.93 |
||
| replacement | |||||
|
31210
|
31210
31210-30221 Cover Assy, Clutch[09.1987 - 08.1988] LS13#..MTM..DSL |
31210-30221 |
US $199.47 |
||
|
31230
|
31230
31230-35070
Bearing Assy, Clutch Release
[07.1988 - 08.1989] LS13#..MTM |
31230-35070 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-35071 Bearing Assy, Clutch Release[07.1988 - 08.1989] LS13#..MTM |
31230-35071 |
from US $50.16 |
||
|
31231
|
31231
31231-20090 Hub, Clutch Release Bearing[09.1987 - 07.1988] LS13#..MTM |
31231-20090 |
US $23.76 |
||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[09.1987 - 07.1988] GS13#,LS13#,MS130..MTM |
90363-40022 |
from US $41.80 |
||
|
31232A
|
31232A
31232-22010 Clip Or Spring, Release Bearing Hub[09.1987 - 07.1988] GS13#,LS13#,MS130..MTM |
31232-22010 |
from US $0.82 |
||
|
31232A
|
31232A
31232-35020 Clip Or Spring, Release Bearing Hub[07.1988 - 08.1989] LS13#..MTM NSK BEARING; GS13#,MS130..MTM |
31232-35020 |
from US $2.62 |
||
|
31232A
|
31232A
31232-35030 Clip Or Spring, Release Bearing Hub[07.1988 - 08.1989] LS13#..MTM NSK BEARING |
31232-35030 |
from US $2.62 |
||
|
31236B
|
31236B
31236-30060 Ball, Release Fork[09.1987 - 10.1991] GS13#,LS13#,MS130,YS130..MTM |
31236-30060 |
from US $10.24 |
||
|
31250
|
31250
31250-30360 Disc Assy, Clutch[09.1987 - 07.1988] LS13#..MTM..DSL |
31250-30360 |
US $259.17 |
||
| replacement | |||||
|
31250
|
31250
31250-35222 Disc Assy, ClutchCLUTCH [09.1987 - 07.1988] LS13#..MTM..DSL |
31250-35222 |
from US $254.80 |
||
|
31250
|
31250
31250-35190 Disc Assy, Clutch[07.1988 - 08.1989] LS13#..MTM |
31250-35190 |
US $254.80 |
||
| replacement | |||||
|
31250
|
31250
31250-35222 Disc Assy, ClutchCLUTCH [07.1988 - 08.1989] LS13#..MTM |
31250-35222 |
from US $254.80 |
||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[09.1987 - 10.1991] LS13#,MS130,YS130..MTM |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[09.1987 - 10.1991] LS13#,MS130,YS130..MTM |
90363-12024 |
from US $5.91 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.70 |
||
