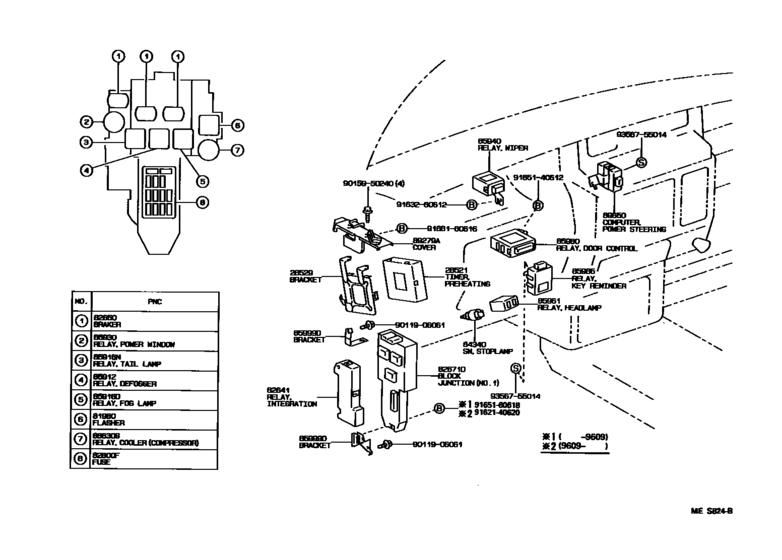

Switch & Relay & Computer ([10.1991 - ] COWL LH (9110- )LHD) Diagram Toyota CROWN/ MAJESTA
- Year
- 1991 - 1993
- Sales region
- General
- Frame
- LS130
- grade
- STD
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 10.1991
- To
- 08.1993
- Gear Shift Type
- 4F
- Driver's Position
- LHD
- Grade Mark
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28521
|
28521
28521-54450
Timer, Preheating
[10.1991 - 08.1993] 2L..LS130..LHD |
28521-54450 |
— | ||
| replacement | |||||
|
28521
|
28521
28521-54560 Timer, PreheatingPREHEATING [10.1991 - 08.1993] 2L..LS130..LHD |
28521-54560 |
US $125.54 |
||
|
28529
|
28529
28529-54140 Bracket, Preheating Timer, No.1PREHEATING TIMER, NO.1 [10.1991 - 05.1995] 2L..LS130 |
28529-54140 |
US $8.88 |
||
|
81980
|
81980
81980-22110
Flasher Assy, Turn Signal
[10.1991 - 08.1993] LS130..LHD;GS131,JZS133,YS132; LS130..RHD W/O TAXI PACKAGE |
81980-22110 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[10.1991 - 08.1993] LS130..LHD;GS131,JZS133,YS132; LS130..RHD W/O TAXI PACKAGE |
81980-32010 |
from US $54.54 |
||
|
81980
|
81980
81980-30110 Flasher Assy, Turn Signal[10.1991 - 08.1993] LS130..LHD TAXI PACKAGE(GENERAL) |
81980-30110 |
US $104.83 |
||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[10.1991 - 08.1993] LS130..LHD TAXI PACKAGE(GENERAL) |
81980-32010 |
from US $54.54 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[10.1991 - 08.1993] GS131,JZS133,LS130,YS132 15A |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 20A |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[10.1991 - 08.1993] GS131,JZS133,LS130,YS132 7.5A |
90982-09005 |
from US $0.99 |
||
|
82641
|
82641
82641-30130 Relay, Integration No.1INTEGRATION NO.1 [10.1991 - 08.1993] GS131,JZS133,LS130,YS132..LHD..GEN |
82641-30130 |
US $324.69 |
||
|
82650
|
82650
82650-20011 Breaker Assy, Wiring Circuit, No.1[10.1991 - 04.2001] LS130,YS132;GS131,JZS133..RHD 30A |
82650-20011 |
US $14.08 |
||
|
82671D
|
82671D
82671-30090 Block, Junction[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
82671-30090 |
US $410.59 |
||
|
84340
|
84340
84340-32090
Switch Assy, Stop Lamp
[10.1991 - 04.2001] GS131,JZS133,LS130,YS132..GCC,GEN |
84340-32090 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-42010 Switch Assy, Stop Lamp[10.1991 - 04.2001] GS131,JZS133,LS130,YS132..GCC,GEN |
84340-42010 |
from US $21.28 |
||
|
85912
|
85912
90987-02008 Relay, Defogger[10.1991 - 04.1999] GS131,JZS133,LS130,YS132..LHD |
90987-02008 |
US $57.08 |
||
|
85916N
|
85916N
90987-02008 Relay, Defogger[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
90987-02008 |
US $57.08 |
||
|
85940
|
85940
85940-30190 Relay Assy, Windshield WiperWINDSHIELD WIPER [10.1991 - 04.1999] GS131,JZS133,LS130,YS132..LHD |
85940-30190 |
US $205.30 |
||
|
85999D
|
85999D
85999-30270 Bracket, Relay, No.2RELAY, NO.2 [10.1991 - 08.1993] GS131,JZS133,LS130,YS132..LHD NO.1 J/B LOWER |
85999-30270 |
US $12.38 |
||
|
85999D
|
85999D
85999-30300 Bracket, Relay, No.2RELAY, NO.2 [10.1991 - 08.1993] GS131,JZS133,LS130,YS132..LHD NO.1 J/B UPPER |
85999-30300 |
US $12.38 |
||
|
88630G
|
88630G
88630-87010
Relay Assy (For Heater Blower Motor)
[10.1991 - 04.1999] GS131,JZS133,LS130,YS132..LHD |
88630-87010 |
— | ||
|
89279A
|
89279A
89279-30020 Cover, ComputerCOMPUTER [10.1991 - 08.1993] LS130..LHD |
89279-30020 |
US $18.64 |
||
|
9011906061
|
9011906061
90119-06061 New Genuine Part |
90119-06061 |
US $0.87 |
||
|
9015950240
|
9015950240
90159-50240
New Genuine Part
|
90159-50240 |
— | ||
|
9162140620
|
9162140620
91621-40620 Bolt |
91621-40620 |
from US $1.92 |
||
|
9163260612
|
9163260612
91632-60612 BOLT WWASHER |
91632-60612 |
US $1.46 |
||
| replacement | |||||
|
9163260612
|
9163260612
91631-J0612 BRACKET |
91631-J0612 |
US $1.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165160618
|
9165160618
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.19 |
||
|
9166160616
|
9166160616
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
