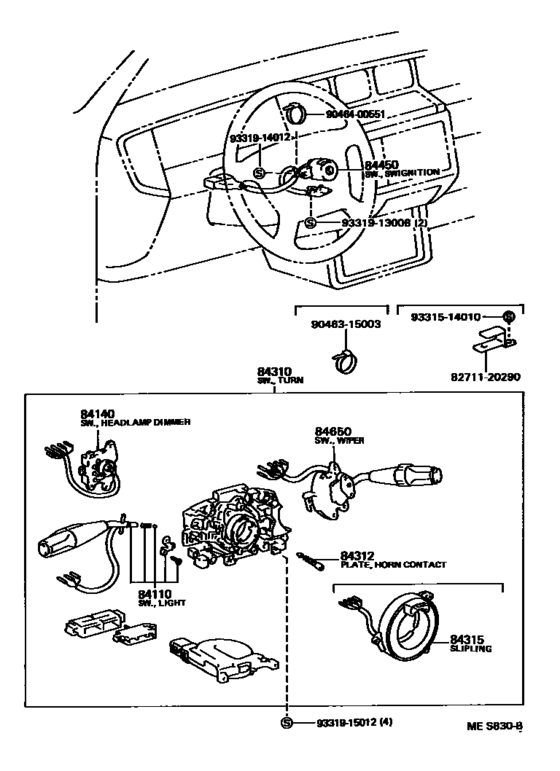

Switch & Relay & Computer ([10.1991 - ] COMBINATION SWITCH (9110- )LHD) Diagram Toyota CROWN/ MAJESTA
- Year
- 1991 - 1993
- Sales region
- General
- Frame
- LS130
- grade
- STD
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 10.1991
- To
- 08.1993
- Gear Shift Type
- 4F
- Driver's Position
- LHD
- Grade Mark
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-30110 Switch Assy, Headlamp Dimmer[10.1991 - 12.1995] GS131,JZS133,LS130,YS132..LHD..(B,D,G) |
84140-30110 |
US $77.17 |
||
| replacement | |||||
|
84140
|
84140
84140-30120
Switch Assy, Headlamp Dimmer
[10.1991 - 12.1995] GS131,JZS133,LS130,YS132..LHD..(B,D,G) |
84140-30120 |
— | ||
|
84310
|
84310
84310-30680 Switch Assy, Turn SignalTURN SIGNAL [10.1991 - 12.1995] JZS133,LS130,YS132..LHD..(B,D,G) |
84310-30680 |
US $289.74 |
||
|
84312
|
84312
84312-12040 Plate, Horn Contact[10.1991 - 04.1992] GS131,JZS133,LS130,YS132..GCC,GEN |
84312-12040 |
from US $6.51 |
||
|
84450
|
84450
84450-30220 Switch Assy, Ignition Or Starter[10.1991 - 04.1992] LS130,YS132..4F; JZS133..D W/O(TILT & TELESCOPIC STEERING) |
84450-30220 |
US $69.45 |
||
|
84450
|
84450
84450-30230
Switch Assy, Ignition Or Starter
[04.1992 - 04.2001] LS130..4H;LS130..LHD;GS131,JZS133,YS132 |
84450-30230 |
— | ||
|
84650
|
84650
84652-30230 Switch Assy, Windshield Wiper[10.1991 - 12.1995] GS131,JZS133,LS130,YS132..LHD..(B,D,G) |
84652-30230 |
US $126.67 |
||
| replacement | |||||
|
84650
|
84650
84652-30240 Switch Assy, Windshield Wiper[10.1991 - 12.1995] GS131,JZS133,LS130,YS132..LHD..(B,D,G) |
84652-30240 |
US $132.50 |
||
|
8271120290
|
8271120290
82711-20290 Wire, Fuse To Fuse(for Combustion Heater) |
82711-20290 |
US $8.74 |
||
|
9046315003
|
9046315003
90463-15003 New Genuine Part |
90463-15003 |
US $2.56 |
||
|
9046400551
|
9046400551
90464-00551 New Genuine Part |
90464-00551 |
US $1.79 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.76 |
||
|
9331913008
|
9331913008
93319-13008 New Genuine Part |
93319-13008 |
US $0.73 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
