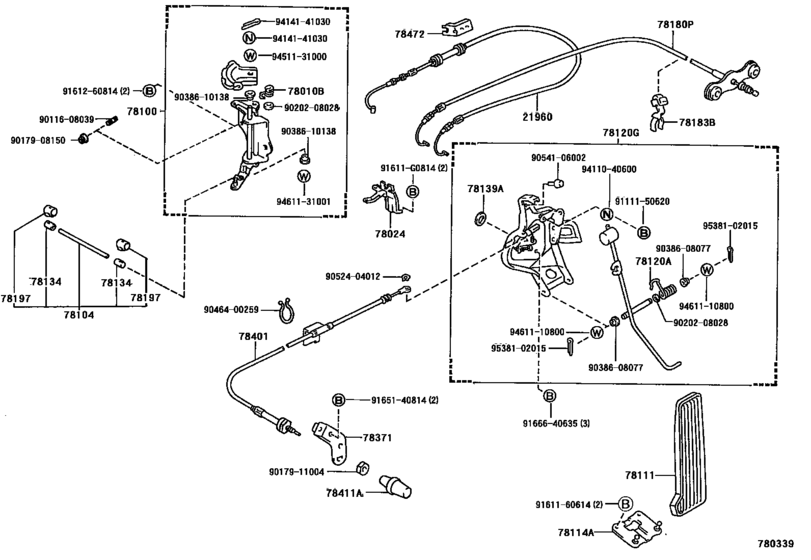

Accelerator Link ([10.1991 - ] (9110- )LS130..RHD) Diagram Toyota CROWN/ MAJESTA
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- LS130
- grade
- STD
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 10.1991
- To
- 12.1995
- Gear Shift Type
- 4H
- Driver's Position
- RHD
- Grade Mark
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21960
|
21960
21960-54030
Wire Assy, Accelerator Link
[10.1991 - 12.1995] 2L..LS130 |
21960-54030 |
— | ||
|
78010B
|
78010B
90508-16053 Spring, Torsion (For Accelerator Link)[10.1991 - 12.1995] LS130 |
90508-16053 |
US $4.22 |
||
|
78024
|
78024
78024-30141
Bracket Sub-Assy, Accelerator Control Cable
[10.1991 - 03.1994] LS130 |
78024-30141 |
— | ||
| replacement | |||||
|
78024
|
78024
78024-30142
Bracket Sub-Assy, Accelerator Control Cable
[10.1991 - 03.1994] LS130 |
78024-30142 |
— | ||
|
78024
|
78024
78024-30142
Bracket Sub-Assy, Accelerator Control Cable
[03.1994 - 12.1995] LS130 |
78024-30142 |
— | ||
|
78100
|
78100
78100-30570 Link Assy, Accelerator[10.1991 - 12.1995] LS130 W(CRUISE CONTROL) |
78100-30570 |
US $60.13 |
||
|
78104
|
78104
78104-22140 Rod Sub-Assy, Accelerator Connecting, No.2[10.1991 - 12.1995] LS130 |
78104-22140 |
from US $7.08 |
||
|
78111
|
78111
78111-30080 Pedal, Accelerator[10.1991 - 12.1995] GS131,JZS133,LS130..RHD |
78111-30080 |
US $15.14 |
||
| replacement | |||||
|
78111
|
78111
78111-30081 Pedal, Accelerator[10.1991 - 12.1995] GS131,JZS133,LS130..RHD |
78111-30081 |
US $10.13 |
||
|
78114A
|
78114A
78114-30050 Bracket, Accelerator Pedal Support[10.1991 - 12.1995] GS131,JZS133,LS130..RHD |
78114-30050 |
US $7.34 |
||
|
78120A
|
78120A
90508-23026 Spring (For Accelerator Pedal Rod)[10.1991 - 12.1995] LS130..RHD |
90508-23026 |
US $3.93 |
||
|
78120G
|
78120G
78120-30591 Rod Assy, Accelerator Pedal[10.1991 - 12.1995] LS130..RHD |
78120-30591 |
US $59.55 |
||
|
78134
|
78134
78134-10010 End, Accelerator Connecting Rod[08.1993 - 12.1995] LS130 |
78134-10010 |
US $2.80 |
||
|
78139A
|
78139A
78139-30060 Seal, Accelerator Pedal Rod Bracket, No.2[10.1991 - 04.2001] GS131,JZS133,LS130..RHD |
78139-30060 |
US $3.35 |
||
|
78180P
|
78180P
78180-3A420 Cable Assy, Accelerator ControlACCELERATOR CONTROL [10.1991 - 12.1995] LS130..RHD |
78180-3A420 |
US $68.72 |
||
|
78183B
|
78183B
78183-30070 Clamp, Accelerator Control Cable[10.1991 - 12.1995] LS130..RHD |
78183-30070 |
US $12.67 |
||
|
78197
|
78197
78197-10010 Clip(For Throttle Link Connecting Rod)[08.1993 - 12.1995] LS130 |
78197-10010 |
from US $1.31 |
||
|
78401
|
78401
78401-30110 Cable Sub-Assy, Throttle ControlTHROTTLE CONTROL [10.1991 - 12.1995] LS130..RHD |
78401-30110 |
US $57.51 |
||
|
78411A
|
78411A
78411-30040 Knob, Throttle ControlTHROTTLE CONTROL [10.1991 - 12.1995] LS130 |
78411-30040 |
US $9.46 |
||
|
78472
|
78472
78472-35010
Support, Throttle Control Cable
[10.1991 - 12.1995] LS130 |
78472-35010 |
— | ||
|
91611G0814
|
91611G0814
91611-G0814
Bolt(For Oil Receiver Pipe)
|
91611-G0814 |
— | ||
| replacement | |||||
|
91611G0814
|
91611G0814
91611-60814 Bolt |
91611-60814 |
from US $1.60 |
||
|
9011608039
|
9011608039
90116-08039 Bolt(For Manual Transmission Oil Pan Setting) |
90116-08039 |
US $3.67 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $1.07 |
||
|
9017911004
|
9017911004
90179-11004 New Genuine Part |
90179-11004 |
US $2.18 |
||
|
9020208028
|
9020208028
90202-08028 New Genuine Part |
90202-08028 |
US $0.96 |
||
|
9038608077
|
9038608077
90386-08077 Bush (For Throttle Cam Shaft) |
90386-08077 |
from US $1.44 |
||
|
9038610138
|
9038610138
90386-10138 Bush (For Throttle Cam Shaft) |
90386-10138 |
US $3.84 |
||
|
9046400259
|
9046400259
90464-00259 New Genuine Part |
90464-00259 |
US $2.77 |
||
| replacement | |||||
|
9046400259
|
9046400259
90464-00215 New Genuine Part |
90464-00215 |
US $3.06 |
||
|
9052404012
|
9052404012
90524-04012 New Genuine Part |
90524-04012 |
US $5.10 |
||
|
9054106002
|
9054106002
90541-06002
Cushion(For Back Door Lock Striker)
|
90541-06002 |
— | ||
| replacement | |||||
|
9054106002
|
9054106002
90541-06019 Cushion(For Back Door Lock Striker) |
90541-06019 |
US $2.88 |
||
|
9111150620
|
9111150620
91111-50620 New Genuine Part |
91111-50620 |
US $1.75 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
|
9161260814
|
9161260814
91612-60814
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91612-60814 |
— | ||
| replacement | |||||
|
9161260814
|
9161260814
91611-60814 Bolt |
91611-60814 |
from US $1.60 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.57 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9166640635
|
9166640635
91666-40635 New Genuine Part |
91666-40635 |
US $1.89 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9414141030
|
9414141030
94141-41030 New Genuine Part |
94141-41030 |
US $2.33 |
||
|
9451131000
|
9451131000
94511-31000 New Genuine Part |
94511-31000 |
US $2.18 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
US $1.28 |
||
|
9461131001
|
9461131001
94611-31001 New Genuine Part |
94611-31001 |
US $2.18 |
||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $1.60 |
||
