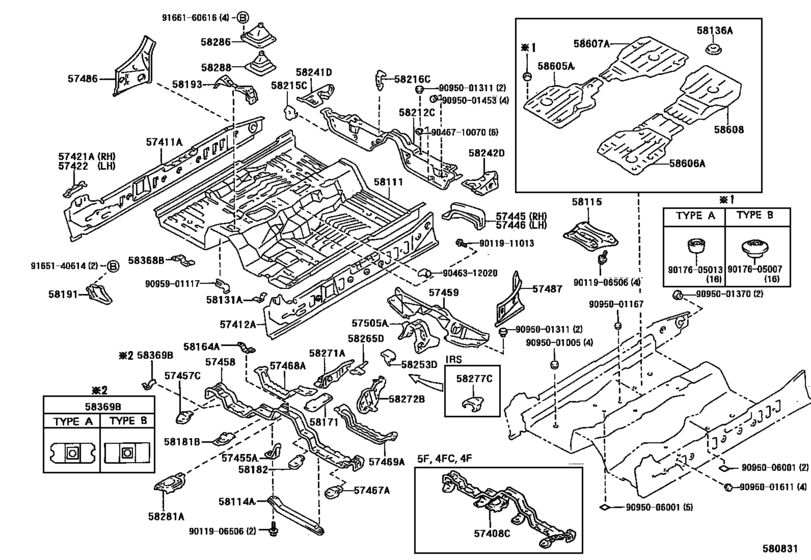

Floor Pan & Lower Back Panel ([10.1991 - ] (9110- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- LS130
- grade
- STD
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 10.1991
- To
- 12.1995
- Gear Shift Type
- 4H
- Driver's Position
- RHD
- Grade Mark
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57411A
|
57411A
57411-30080 Member, Floor Side, Inner Rh[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
57411-30080 |
US $161.62 |
||
|
57412A
|
57412A
57412-30080 Member, Floor Side, Inner Lh[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
57412-30080 |
US $161.62 |
||
|
57421A
|
57421A
57421-30031 Plate, Floor Side Rail, Rh[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
57421-30031 |
US $6.41 |
||
|
57422
|
57422
57422-30031 Plate, Floor Side Rail, Lh[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
57422-30031 |
US $6.41 |
||
|
57445
|
57445
57445-30010 Reinforcement, No.5 Body Mounting, Rh[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
57445-30010 |
US $53.87 |
||
|
57446
|
57446
57446-30010 Reinforcement, No.5 Body Mounting, Lh[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
57446-30010 |
US $53.87 |
||
|
57455A
|
57455A
57455-30010 Bracket, Front Floor Crossmember[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
57455-30010 |
US $8.59 |
||
|
57457C
|
57457C
57457-30040 Bracket, Front Seat Outside Mounting, Front Rh[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
57457-30040 |
US $10.19 |
||
|
57458
|
57458
57458-30040 Member, Front Floor Cross, No.1[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
57458-30040 |
US $149.97 |
||
|
57459
|
57459
57459-30060 Member, Front Floor Cross, No.2[10.1991 - 12.1995] LS130,YS132 |
57459-30060 |
US $115.02 |
||
| replacement | |||||
|
57459
|
57459
57459-91702 Member, Front Floor Cross, No.2[10.1991 - 12.1995] LS130,YS132 |
57459-91702 |
US $115.02 |
||
|
57467A
|
57467A
57467-30040 Bracket, Front Seat Outside Mounting, Front Lh[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
57467-30040 |
US $10.19 |
||
|
57468A
|
57468A
57468-30040 Bracket, Front Seat, Outside, Rear Rh[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
57468-30040 |
US $45.72 |
||
|
57469A
|
57469A
57469-30050 Bracket, Front Seat, Outside, Rear Lh[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
57469-30050 |
US $52.27 |
||
|
57486
|
57486
57486-30011 Reinforcement, Floor Side Member, No.1 Rh[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
57486-30011 |
US $72.22 |
||
|
57487
|
57487
57487-30011 Reinforcement, Floor Side Member, No.1 Lh[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
57487-30011 |
US $72.22 |
||
|
57505A
|
57505A
57505-30020 Reinforcement Sub-Assy, Front Floor Under[10.1991 - 12.1995] LS130,YS132 |
57505-30020 |
US $71.20 |
||
|
58111
|
58111
58111-30271 Pan, Front Floor[10.1991 - 12.1995] LS130..4H |
58111-30271 |
US $793.52 |
||
|
58114A
|
58114A
58114-30040 Reinforcement, Front Floor Panel[10.1991 - 11.1992] GS131,JZS133,LS130,YS132 |
58114-30040 |
US $21.99 |
||
|
58131A
|
58131A
58131-14030
Bracket, Mounting, Floor, No.1
[10.1991 - 10.1992] GS131,JZS133,LS130,YS132 FOR FRONT FLOOR PAN |
58131-14030 |
— | ||
|
58136A
|
58136A
58136-30010 Cover, Front Floor Service Hole[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
58136-30010 |
US $8.59 |
||
|
58164A
|
58164A
58164-30020 Retainer, Console Box Mounting[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
58164-30020 |
US $5.10 |
||
|
58171
|
58171
58107-30070 Reinforcement, Parking Brake Base[10.1991 - 12.1995] LS130..4H |
58107-30070 |
US $19.80 |
||
|
58191
|
58191
58191-30020 Footrest, Front Floor[10.1991 - 04.2001] GS131,JZS133,LS130..RHD |
58191-30020 |
US $24.75 |
||
|
58193
|
58193
58193-30020 Bracket, Instrument Panel Brace Mounting[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
58193-30020 |
US $25.19 |
||
|
58212C
|
58212C
58212-30060 Pan, Center Floor, Front[10.1991 - 12.1995] JZS133..GCC,GEN;GS131,LS130,YS132..MTM |
58212-30060 |
US $256.26 |
||
|
58215C
|
58215C
58215-30020 Reinforcement, Center Floor Panel, No.2 Rh[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
58215-30020 |
US $5.10 |
||
|
58216C
|
58216C
58216-30010 Reinforcement, Center Floor Panel, No.2 Lh[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
58216-30010 |
US $5.10 |
||
|
58241D
|
58241D
58105-30011 Gusset, Wheelhouse Inner, Front Rh[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
58105-30011 |
US $53 |
||
|
58242D
|
58242D
58106-30021 Gusset, Wheelhouse Inner, Front Lh[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
58106-30021 |
US $53 |
||
|
58253D
|
58253D
58253-30050 Bracket, Parking Brake Cable[10.1991 - 12.1995] LS130..4H |
58253-30050 |
US $10.19 |
||
|
58265D
|
58265D
58265-30030 Bracket, Parking Brake Cable Guide, No.2[10.1991 - 04.2001] JZS133..LHD;GS131..LHD..Q;JZS133..RHD..5F;GS131,LS130,YS132..MTM |
58265-30030 |
US $12.67 |
||
|
58271A
|
58271A
58271-30100 Reinforcement, Belt Anchor To Floor Pan, No.3[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
58271-30100 |
US $30.14 |
||
|
58272B
|
58272B
58272-30100 Reinforcement, Belt Anchor To Floor Pan, No.4[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
58272-30100 |
US $34.94 |
||
|
58368B
|
58368B
58368-30040 Bracket, Fuel Tube, No.2[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
58368-30040 |
US $3.35 |
||
|
58369B
|
58369B
58369-30040 Bracket, Fuel Tube, No.3[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 TYPE A |
58369-30040 |
US $3.93 |
||
|
58369B
|
58369B
58369-32010 Bracket, Insulator Heat[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 TYPE B |
58369-32010 |
US $3.32 |
||
|
58605A
|
58605A
58605-30021 Panel Sub-Assy, Front Floor Silencer, Front Rh[10.1991 - 12.1995] LS130,YS132 W(RUBBER FORM) |
58605-30021 |
US $119.39 |
||
|
58605A
|
58605A
58631-30020 Panel Sub-Assy, Front Floor Silencer, Front Rh[10.1991 - 12.1995] LS130,YS132 |
58631-30020 |
US $54.16 |
||
|
58606A
|
58606A
58606-30020 Panel Sub-Assy, Front Floor Silencer, Front Lh[10.1991 - 12.1995] LS130,YS132 W(RUBBER FORM) |
58606-30020 |
US $126.67 |
||
|
58606A
|
58606A
58632-30010 Panel Sub-Assy, Front Floor Silencer, Front Lh[10.1991 - 12.1995] LS130,YS132 |
58632-30010 |
US $54.16 |
||
|
58607A
|
58607A
58607-30020 Panel Sub-Assy, Front Floor Silencer, Rear Rh[10.1991 - 12.1995] LS130,YS132 W(RUBBER FORM) |
58607-30020 |
US $126.67 |
||
|
58607A
|
58607A
58633-30020 Panel Sub-Assy, Front Floor Silencer, Rear Rh[10.1991 - 12.1995] LS130,YS132 |
58633-30020 |
US $54.16 |
||
|
58608
|
58608
58608-30030 Panel Sub-Assy, Front Floor Silencer, Rear Lh[10.1991 - 12.1995] LS130,YS132 W(RUBBER FORM) |
58608-30030 |
US $142.69 |
||
|
58608
|
58608
58634-30010 Panel Sub-Assy, Front Floor Silencer, Rear Lh[10.1991 - 12.1995] LS130,YS132 |
58634-30010 |
US $54.16 |
||
|
9011906506
|
9011906506
90119-06506 New Genuine Part |
90119-06506 |
US $1.92 |
||
|
9011911013
|
9011911013
90119-11013 New Genuine Part |
90119-11013 |
US $2.04 |
||
|
9017605007
|
9017605007
90176-05007 New Genuine Part |
90176-05007 |
US $1.89 |
||
|
9017605013
|
9017605013
90176-05013 New Genuine Part |
90176-05013 |
US $1.02 |
||
|
9046312020
|
9046312020
90463-12020 New Genuine Part |
90463-12020 |
US $4.22 |
||
|
9046710070
|
9046710070
90467-10070 New Genuine Part |
90467-10070 |
US $1.60 |
||
|
9095001005
|
9095001005
90950-01005
PLUGHOLE
|
90950-01005 |
— | ||
| replacement | |||||
|
9095001005
|
9095001005
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.77 |
||
|
9095001167
|
9095001167
90950-01167 Plug, Hole, No.3(For Dash Panel) |
90950-01167 |
US $3.49 |
||
|
9095001311
|
9095001311
90950-01311 PLUG |
90950-01311 |
US $0.96 |
||
|
9095001370
|
9095001370
90950-01370 New Genuine Part |
90950-01370 |
US $7.28 |
||
|
9095001453
|
9095001453
90950-01453 New Genuine Part |
90950-01453 |
US $1.46 |
||
|
9095001611
|
9095001611
90950-01611 New Genuine Part |
90950-01611 |
US $2.24 |
||
|
9095006001
|
9095006001
90950-06001 Protector, Front Side Panel, No.3 |
90950-06001 |
US $2.72 |
||
|
9095901117
|
9095901117
90959-01117 New Genuine Part |
90959-01117 |
US $10.19 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9166160616
|
9166160616
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
