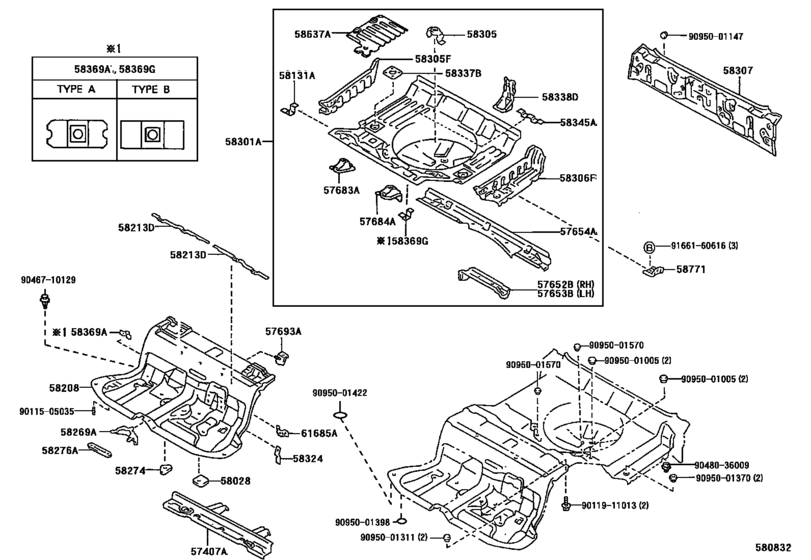

Floor Pan & Lower Back Panel ([10.1991 - ] (9110- )LS130,YS132) Diagram Toyota CROWN/ MAJESTA
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- LS130
- grade
- STD
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 10.1991
- To
- 12.1995
- Gear Shift Type
- 4H
- Driver's Position
- RHD
- Grade Mark
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57407A
|
57407A
57407-30070 Member Sub-Assy, Center Floor Cross[10.1991 - 12.1995] LS130,YS132 |
57407-30070 |
US $115.02 |
||
|
57652B
|
57652B
57652-30050 Member, Rear Floor Cross, Front Rh[10.1991 - 12.1995] LS130,YS132 |
57652-30050 |
US $115.02 |
||
|
57653B
|
57653B
57653-30070 Member, Rear Floor Cross, Front Lh[10.1991 - 12.1995] LS130,YS132 |
57653-30070 |
US $80.08 |
||
|
57654A
|
57654A
57654-30060 Member, Rear Floor Cross, No.3[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
57654-30060 |
US $149.97 |
||
|
57683A
|
57683A
57683-30010 Bracket, Fuel Tank Mounting, No.1[10.1991 - 12.1995] LS130,YS132 |
57683-30010 |
US $11.65 |
||
|
57684A
|
57684A
57684-30010 Bracket, Fuel Tank Mounting, No.1[10.1991 - 12.1995] LS130,YS132 |
57684-30010 |
US $12.67 |
||
|
57693A
|
57693A
57693-30050 Reinforcement, Fuel Tank Mounting Bracket, Rh[10.1991 - 12.1995] LS130,YS132 |
57693-30050 |
US $9.61 |
||
|
58028
|
58028
58028-30090 Reinforcement Sub-Assy, Seat Belt Anchor, No.2[10.1991 - 12.1995] LS130,YS132 |
58028-30090 |
US $18.93 |
||
|
58131A
|
58131A
58131-14030
Bracket, Mounting, Floor, No.1
[10.1991 - 10.1992] GS131,JZS133,LS130,YS132 FOR FRONT FLOOR PAN |
58131-14030 |
— | ||
|
58208
|
58208
58211-30161 Pan, Center Floor[10.1991 - 12.1995] LS130,YS132 |
58211-30161 |
US $380.02 |
||
|
58213D
|
58213D
58213-30040 Reinforcement, Center Floor Panel[10.1991 - 12.1995] LS130,YS132 RH |
58213-30040 |
US $15.14 |
||
|
58213D
|
58213D
58214-30020 Reinforcement, Center Floor Panel[10.1991 - 12.1995] LS130,YS132 LH |
58214-30020 |
US $13.83 |
||
|
58269A
|
58269A
58269-30090 Bracket, Parking Brake Cable Guide, No.3[10.1991 - 12.1995] LS130..4H |
58269-30090 |
US $18.78 |
||
|
58274
|
58274
58274-30020 Reinforcement, Belt Anchor To Center Floor, No.1[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
58274-30020 |
US $6.99 |
||
|
58276A
|
58276A
58276-30010 Bracket, Parking Brake Cable Guide, No.2 Lh[10.1991 - 12.1995] LS130,YS132 |
58276-30010 |
US $8.59 |
||
|
58301A
|
58301A
58301-30530 Panel Sub-Assy, Rear Floor[10.1991 - 12.1995] LS130,YS132 |
58301-30530 |
US $856.13 |
||
|
58305
|
58305
58305-10011 Bracket Sub-Assy, Spare Wheel Clamp[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
58305-10011 |
US $4.54 |
||
|
58305F
|
58305F
58305-30140 Panel Sub-Assy, Rear Floor Side, Rh[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
58305-30140 |
US $74.26 |
||
|
58306F
|
58306F
58306-30140 Panel Sub-Assy, Rear Floor Side, Lh[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
58306-30140 |
US $81.54 |
||
|
58307
|
58307
58307-30580 Panel Sub-Assy, Body Lower Back[10.1991 - 12.1995] LS130,YS132 W(SMALL URETHAN BUMPER) |
58307-30580 |
US $215.49 |
||
|
58307
|
58307
58307-30590 Panel Sub-Assy, Body Lower BackBODY LOWER BACK [10.1991 - 12.1995] LS130,YS132 W(SMALL URETHAN BUMPER) & W(LICENCE PLATE LAMP) |
58307-30590 |
US $215.49 |
||
|
58307
|
58307
58307-30600 Panel Sub-Assy, Body Lower Back[10.1991 - 12.1995] LS130,YS132 |
58307-30600 |
US $215.49 |
||
|
58307
|
58307
58307-30610 Panel Sub-Assy, Body Lower BackBODY LOWER BACK [10.1991 - 12.1995] LS130,YS132 W(LICENCE PLATE LAMP) |
58307-30610 |
US $215.49 |
||
|
58324
|
58324
47351-30230 Bracket, Flexible Hose[10.1991 - 12.1995] LS130,YS132 |
47351-30230 |
US $9.03 |
||
|
58337B
|
58337B
58337-30060 Reinforcement, No.7 Body Mounting[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
58337-30060 |
US $13.69 |
||
|
58338D
|
58338D
58338-30040 Reinforcement, Tail End Body Mounting[10.1991 - 08.1993] GS131,JZS133,LS130,YS132 |
58338-30040 |
US $20.82 |
||
| replacement | |||||
|
58338D
|
58338D
58338-30041 Reinforcement, Tail End Body Mounting[10.1991 - 08.1993] GS131,JZS133,LS130,YS132 |
58338-30041 |
US $21.40 |
||
|
58338D
|
58338D
58338-30041 Reinforcement, Tail End Body Mounting[08.1993 - 04.2001] GS131,JZS133,LS130,YS132 |
58338-30041 |
US $21.40 |
||
|
58345A
|
58345A
58345-30030 Bracket, Rear Floor Heat Insulator, No.1[10.1991 - 12.1995] LS130,YS132 |
58345-30030 |
US $6.99 |
||
|
58369A
|
58369A
58369-30040 Bracket, Fuel Tube, No.3[10.1991 - 12.1995] LS130,YS132 TYPE A |
58369-30040 |
US $3.93 |
||
|
58369A
|
58369A
58369-32010 Bracket, Insulator Heat[10.1991 - 12.1995] LS130,YS132 TYPE B |
58369-32010 |
US $3.32 |
||
|
58369G
|
58369G
58369-32010 Bracket, Insulator Heat[10.1991 - 08.1993] GS131,JZS133,LS130,YS132 TYPE B |
58369-32010 |
US $3.32 |
||
|
58637A
|
58637A
58637-30011 Panel, Rear Floor Silencer[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
58637-30011 |
US $42.37 |
||
|
58771
|
58771
58795-30010 Clamp, Jack, No.1[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
58795-30010 |
US $24.17 |
||
|
61685A
|
61685A
61685-30020 Bracket, Rear Seat Back Mounting[10.1991 - 12.1995] LS130,YS132 |
61685-30020 |
US $11.07 |
||
|
9011505035
|
9011505035
90115-05035
New Genuine Part
|
90115-05035 |
— | ||
|
9011911013
|
9011911013
90119-11013 New Genuine Part |
90119-11013 |
US $2.04 |
||
|
9046710129
|
9046710129
90467-10129 New Genuine Part |
90467-10129 |
US $1.46 |
||
|
9048036009
|
9048036009
90480-36009 New Genuine Part |
90480-36009 |
US $4.22 |
||
|
9095001005
|
9095001005
90950-01005
PLUGHOLE
|
90950-01005 |
— | ||
| replacement | |||||
|
9095001005
|
9095001005
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.77 |
||
|
9095001147
|
9095001147
90950-01147
Plug, Hole(For Luggage Compartment Door Panel)
|
90950-01147 |
— | ||
| replacement | |||||
|
9095001147
|
9095001147
90950-01864 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01864 |
US $1.60 |
||
|
9095001311
|
9095001311
90950-01311 PLUG |
90950-01311 |
US $0.96 |
||
|
9095001370
|
9095001370
90950-01370 New Genuine Part |
90950-01370 |
US $7.28 |
||
|
9095001398
|
9095001398
90950-01398 CUSHION |
90950-01398 |
from US $1.01 |
||
|
9095001422
|
9095001422
90950-01422 New Genuine Part |
90950-01422 |
US $3.20 |
||
| replacement | |||||
|
9095001422
|
9095001422
90950-01528 New Genuine Part |
90950-01528 |
US $3.93 |
||
|
9095001570
|
9095001570
90950-01570 Lid, Spare Wheel Carrier, No.1 |
90950-01570 |
US $4.16 |
||
|
9166160616
|
9166160616
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
