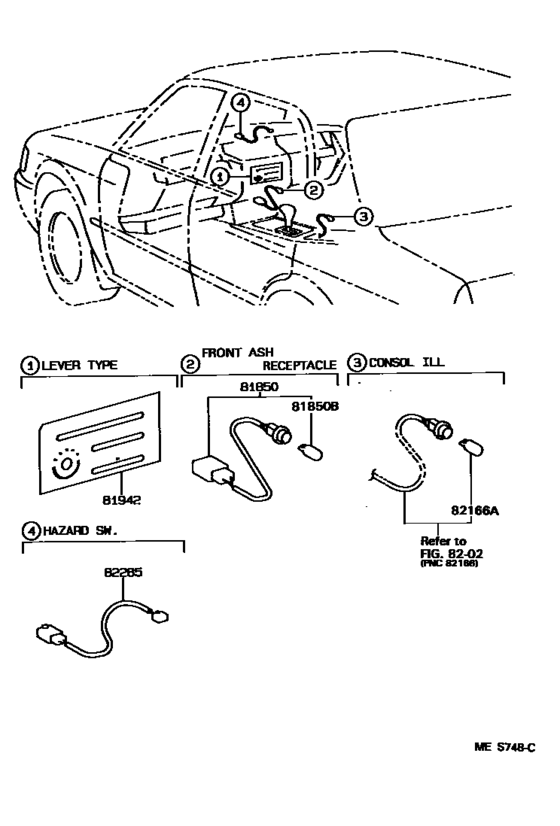

Indicator ([10.1991 - ] (9110- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- LS130
- grade
- STD
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 10.1991
- To
- 12.1995
- Gear Shift Type
- 4H
- Driver's Position
- RHD
- Grade Mark
- B
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81850
|
81850
81850-33010 Lamp Sub-Assy, Ash Receptacle[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
81850-33010 |
US $17.48 |
||
|
81850B
|
81850B
90981-11014 Bulb, Position Indicator Lamp[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 14V 1.4W |
90981-11014 |
from US $1.92 |
||
|
81942
|
81942
81942-30060 Sheet, Heater Control Name[10.1991 - 12.1995] LS130..RHD |
81942-30060 |
US $64.21 |
||
|
81942
|
81942
81942-30070 Sheet, Heater Control Name[10.1991 - 12.1995] LS130..RHD W(AIR CONDITIONER) |
81942-30070 |
US $64.36 |
