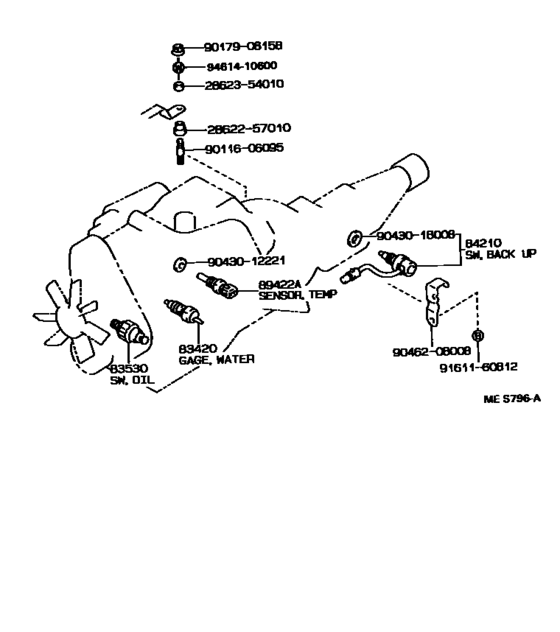

Switch & Relay & Computer ([10.1991 - 12.1995] ENGINE & TRANSMISSION (9110-9512)LS130) Diagram Toyota CROWN/ MAJESTA
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- LS130
- grade
- STD
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 10.1991
- To
- 12.1995
- Gear Shift Type
- 4H
- Driver's Position
- RHD
- Grade Mark
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[08.1992 - 11.1992] LS130 DENSO |
83420-16040 |
from US $30.71 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[10.1991 - 08.1992] GS131,JZS133,LS130,YS132 |
83420-20020 |
from US $30.62 |
||
|
83420
|
83420
83420-20030
Gage Assy, Water Temperature Sender
[08.1992 - 11.1992] LS130 YAZAKI |
83420-20030 |
— | ||
| replacement | |||||
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[08.1992 - 11.1992] LS130 YAZAKI |
83420-16040 |
from US $30.71 |
||
|
83530
|
83530
83530-30060
Switch Assy, Oil Pressure (For Engine)
[10.1991 - 12.1995] LS130 |
83530-30060 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60030 Switch Assy, Oil Pressure (For Engine)[10.1991 - 12.1995] LS130 |
83530-60030 |
from US $26.54 |
||
|
84210
|
84210
84210-30060 Switch Assy, Back-Up Lamp[10.1991 - 04.2001] GS131,JZS133,LS130,YS132..MTM |
84210-30060 |
from US $38.08 |
||
|
89422A
|
89422A
89422-20010 Sensor, Water Temperature (For E.f.i.)[10.1991 - 12.1995] LS130..RHD |
89422-20010 |
from US $36.78 |
||
|
2862257010
|
2862257010
28622-57010 Insulator, Glow Plug Resistor, No.1 |
28622-57010 |
from US $1.40 |
||
|
2862354010
|
2862354010
28623-54010 Insulator, Glow Plug Resistor, No.2 |
28623-54010 |
from US $1.40 |
||
|
9011606095
|
9011606095
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06095 |
US $1.44 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.13 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $0.99 |
||
|
9046208008
|
9046208008
90462-08008 New Genuine Part |
90462-08008 |
US $4.37 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9461410600
|
9461410600
94614-10600
Washer (For Primary Regulator Valve)
|
94614-10600 |
— | ||
| replacement | |||||
|
9461410600
|
9461410600
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.12 |
||
