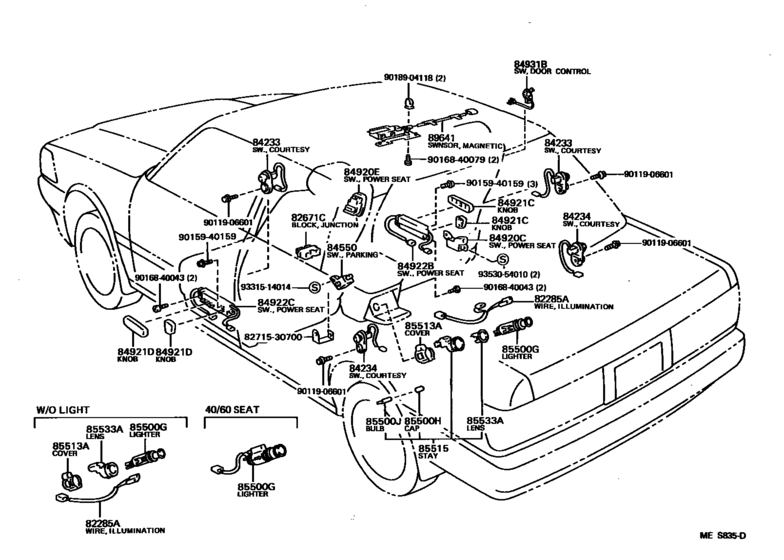

Switch & Relay & Computer ([10.1991 - ] ROOF,DOOR & FRONT SEAT (9110- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- LS130
- grade
- STD
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 10.1991
- To
- 12.1995
- Gear Shift Type
- 4H
- Driver's Position
- RHD
- Grade Mark
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84233
|
84233
84231-32040 Switch Assy, Courtesy Lamp (For Front Door)[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
84231-32040 |
from US $14.24 |
||
|
84234
|
84234
84231-30110 Switch Assy, Courtesy Lamp (For Front Door)[10.1991 - 04.2001] GS131,JZS133,LS130,YS132 |
84231-30110 |
from US $16.26 |
||
|
84550
|
84550
84550-30040 Switch Assy, Parking Brake[10.1991 - 12.1995] LS130..4H |
84550-30040 |
US $41.93 |
||
| replacement | |||||
|
84550
|
84550
84550-41010
Switch Assy, Parking Brake
[10.1991 - 12.1995] LS130..4H |
84550-41010 |
— | ||
|
85500G
|
85500G
85500-30450 Lighter Assy, Cigarette[10.1991 - 05.1992] LS130..4H |
85500-30450 |
US $80.08 |
||
| replacement | |||||
|
85500G
|
85500G
85500-30480 Lighter Assy, Cigarette, Rear[10.1991 - 05.1992] LS130..4H |
85500-30480 |
US $70.76 |
||
|
85500G
|
85500G
85500-30480 Lighter Assy, Cigarette, Rear[05.1992 - 12.1995] LS130..4H |
85500-30480 |
US $70.76 |
||
|
85500J
|
85500J
90981-11014 Bulb, Position Indicator Lamp[10.1991 - 12.1995] LS130..4H |
90981-11014 |
from US $1.92 |
||
|
8271530700
|
8271530700
82715-30700 Bracket,wiring Harness Clamp |
82715-30700 |
US $6.41 |
||
|
9011906601
|
9011906601
90119-06601
New Genuine Part
|
90119-06601 |
— | ||
|
9015940159
|
9015940159
90159-40159 SCREW WWASHER |
90159-40159 |
from US $1.92 |
||
| replacement | |||||
|
9015940159
|
9015940159
90159-A0028 SCREW WWASHER |
90159-A0028 |
US $2.46 |
||
|
9016840043
|
9016840043
90168-40043 SCREW |
90168-40043 |
from US $0.80 |
||
|
9016840079
|
9016840079
90168-40079 New Genuine Part |
90168-40079 |
US $1.75 |
||
|
9018904118
|
9018904118
90189-04118 GROMMET SCREW |
90189-04118 |
US $2.08 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.12 |
||
|
9353054010
|
9353054010
93530-54010 SCREW |
93530-54010 |
from US $0.82 |
||
| replacement | |||||
|
9353054010
|
9353054010
90084-16012 SCREW |
90084-16012 |
US $1.59 |
||
