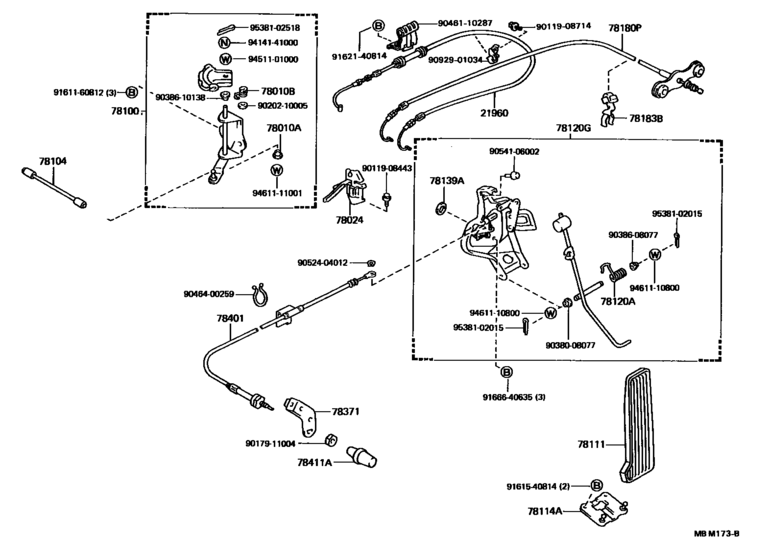

Accelerator Link ([09.1987 - 08.1989] (8709-8908)LS130..RHD) Diagram Toyota CROWN/ MAJESTA
- Year
- 1987 - 1988
- Sales region
- General
- Frame
- LS130
- grade
- STD
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1987
- To
- 09.1988
- Gear Shift Type
- 4F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21960
|
21960
21960-54011 Wire Assy, Accelerator Link[09.1987 - 08.1989] 2L..LS130 |
21960-54011 |
US $123.76 |
||
|
78010A
|
78010A
90386-10138 Bush (For Throttle Cam Shaft)[09.1987 - 08.1989] LS130 |
90386-10138 |
US $3.32 |
||
|
78010B
|
78010B
90508-16010 Spring, Torsion (For Accelerator Link)[09.1987 - 08.1989] LS130 |
90508-16010 |
US $5.39 |
||
|
78024
|
78024
78024-30041 Bracket Sub-Assy, Accelerator Control Cable[09.1987 - 08.1989] LS130 |
78024-30041 |
US $116.48 |
||
|
78100
|
78100
78100-30490 Link, Accelerator[09.1987 - 08.1989] LS130 |
78100-30490 |
US $63.48 |
||
|
78104
|
78104
78104-30120 Rod Sub-Assy, Accelerator Connecting, No.2[09.1987 - 08.1989] LS130 |
78104-30120 |
US $11.36 |
||
|
78111
|
78111
78111-30080 Pedal, Accelerator[09.1987 - 10.1991] GS131,LS130,MS13#..RHD |
78111-30080 |
US $15.14 |
||
| replacement | |||||
|
78111
|
78111
78111-30081 Pedal, Accelerator[09.1987 - 10.1991] GS131,LS130,MS13#..RHD |
78111-30081 |
US $10.13 |
||
|
78114A
|
78114A
78114-30050 Bracket, Accelerator Pedal Support[09.1987 - 10.1991] GS131,LS130,MS13#..RHD |
78114-30050 |
US $7.34 |
||
|
78120A
|
78120A
90508-23101 Spring, Compression (For Accelerator Link Rod)[09.1987 - 09.1988] LS130..RHD |
90508-23101 |
US $3.64 |
||
|
78120G
|
78120G
78120-30590 Rod Assy, Accelerator Pedal[09.1987 - 09.1988] LS130..RHD |
78120-30590 |
US $59.70 |
||
| replacement | |||||
|
78120G
|
78120G
78120-30591 Rod Assy, Accelerator Pedal[09.1987 - 09.1988] LS130..RHD |
78120-30591 |
US $59.55 |
||
|
78139A
|
78139A
78139-30060 Seal, Accelerator Pedal Rod Bracket, No.2[09.1987 - 10.1991] GS131,LS130,MS13#..RHD |
78139-30060 |
US $3.35 |
||
|
78180P
|
78180P
78180-30740 Cable Assy, Accelerator Control[09.1987 - 08.1989] LS130..RHD |
78180-30740 |
US $47.32 |
||
|
78183B
|
78183B
78183-30090 Clamp, Accelerator Control Cable[09.1987 - 04.1988] LS130,MS132,135..RHD |
78183-30090 |
US $13.10 |
||
| replacement | |||||
|
78183B
|
78183B
78183-30091 Clamp, Accelerator Control Cable[09.1987 - 04.1988] LS130,MS132,135..RHD |
78183-30091 |
US $12.81 |
||
|
78183B
|
78183B
78183-30091 Clamp, Accelerator Control Cable[04.1988 - 08.1989] GS131,LS130,MS132,135..RHD |
78183-30091 |
US $12.81 |
||
|
78401
|
78401
78401-30110 Cable Sub-Assy, Throttle ControlTHROTTLE CONTROL [09.1987 - 10.1991] LS130..RHD |
78401-30110 |
US $57.51 |
||
|
78411A
|
78411A
78411-30040 Knob, Throttle ControlTHROTTLE CONTROL [09.1987 - 10.1991] LS130 |
78411-30040 |
US $9.46 |
||
|
9011908443
|
9011908443
90119-08443
New Genuine Part
|
90119-08443 |
— | ||
|
9011908714
|
9011908714
90119-08714
New Genuine Part
|
90119-08714 |
— | ||
| replacement | |||||
|
9011908714
|
9011908714
91621-40812 BOLT |
91621-40812 |
US $1.24 |
||
|
9017911004
|
9017911004
90179-11004 New Genuine Part |
90179-11004 |
US $2.18 |
||
|
9020210005
|
9020210005
90202-10005 New Genuine Part |
90202-10005 |
US $1.89 |
||
|
9038008077
|
9038008077
90380-08077
New Genuine Part
|
90380-08077 |
— | ||
|
9038608077
|
9038608077
90386-08077 Bush (For Throttle Cam Shaft) |
90386-08077 |
from US $1.10 |
||
|
9038610138
|
9038610138
90386-10138 Bush (For Throttle Cam Shaft) |
90386-10138 |
US $3.32 |
||
|
9046110287
|
9046110287
90461-10287
Clamp (For Accelerator Wire Set)
|
90461-10287 |
— | ||
|
9046400259
|
9046400259
90464-00259 New Genuine Part |
90464-00259 |
US $2.77 |
||
| replacement | |||||
|
9046400259
|
9046400259
90464-00215 New Genuine Part |
90464-00215 |
US $3.06 |
||
|
9052404012
|
9052404012
90524-04012 New Genuine Part |
90524-04012 |
US $5.10 |
||
|
9054106002
|
9054106002
90541-06002 Cushion(For Back Door Lock Striker) |
90541-06002 |
US $4.66 |
||
| replacement | |||||
|
9054106002
|
9054106002
90541-06019 Cushion(For Back Door Lock Striker) |
90541-06019 |
US $2.20 |
||
|
9092901034
|
9092901034
90929-01034 New Genuine Part |
90929-01034 |
US $4.66 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.64 |
||
|
9161540814
|
9161540814
91615-40814 Bolt(For Oil Receiver Pipe) |
91615-40814 |
US $1.60 |
||
| replacement | |||||
|
9161540814
|
9161540814
91611-60814 Bolt |
91611-60814 |
from US $0.72 |
||
|
9162140814
|
9162140814
91621-40814 New Genuine Part |
91621-40814 |
US $0.96 |
||
|
9166640635
|
9166640635
91666-40635 New Genuine Part |
91666-40635 |
US $1.89 |
||
|
9414141000
|
9414141000
94141-41000 NUT |
94141-41000 |
US $2.20 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.38 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.78 |
||
|
9461111001
|
9461111001
94611-11001 Plate, Rear Seat Back Stopper |
94611-11001 |
US $0.96 |
||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $0.79 |
||
|
9538102518
|
9538102518
95381-02518 PIN |
95381-02518 |
US $0.96 |
||
