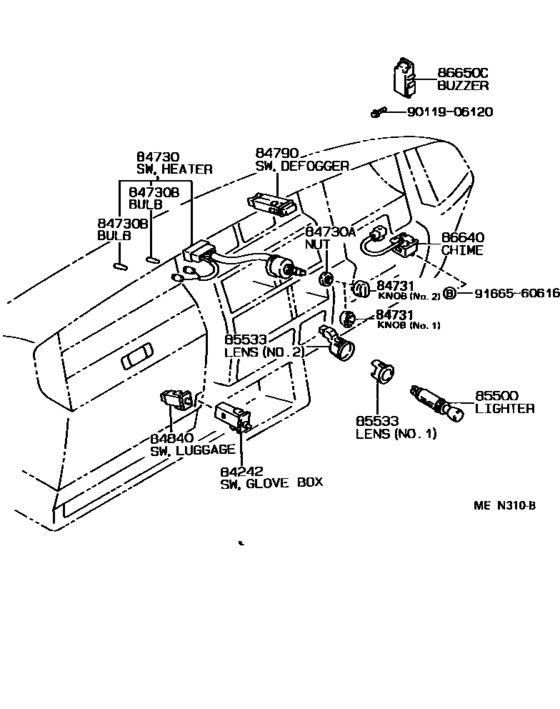

Switch & Relay & Computer ([09.1987 - ] (8709- )LS130..RHD) Diagram Toyota CROWN/ MAJESTA
- Year
- 1987 - 1988
- Sales region
- General
- Frame
- LS130
- grade
- STD
- body
- SED
- ENGINE
- 2L
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 09.1987
- To
- 09.1988
- Gear Shift Type
- 4F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84242
|
84242
84242-20030 Switch Assy, Courtesy Lamp (For Glove Box)[09.1987 - 10.1991] GS131,LS130,MS13#,YS132 |
84242-20030 |
US $18.35 |
||
|
84730
|
84730
84732-30230 Switch Assy, Heater Blower[09.1987 - 08.1989] LS130..RHD |
84732-30230 |
US $67.70 |
||
|
84730
|
84730
84732-30240 Switch Assy, Heater Blower[09.1987 - 08.1989] LS130..RHD WITH AIR CONDITIONER |
84732-30240 |
US $68 |
||
|
84730A
|
84730A
90170-11206 Nut, Heater Blower Switch[09.1987 - 10.1991] LS130..RHD |
90170-11206 |
US $1.40 |
||
|
84730B
|
84730B
90981-11014 Bulb, Position Indicator Lamp[09.1987 - 10.1989] LS130..RHD 14V 1.4W |
90981-11014 |
from US $1.92 |
||
|
84731
|
84731
84731-12032 Knob, Cooler Switch[09.1987 - 08.1989] LS130..RHD W(AIR CONDITIONER),NO.1 |
84731-12032 |
from US $7.16 |
||
|
84731
|
84731
84731-30050 Knob, Heater Blower Switch[09.1987 - 08.1989] LS130..RHD NO.2 |
84731-30050 |
US $8.59 |
||
|
84790
|
84790
84790-30170 Switch Assy, Rear Window Defogger[09.1987 - 02.1989] MS132..4F;MS132..DLX,SAL;LS130,MS133,YS132 |
84790-30170 |
US $136.86 |
||
| replacement | |||||
|
84790
|
84790
84790-30171 Switch Assy, Rear Window Defogger[09.1987 - 02.1989] MS132..4F;MS132..DLX,SAL;LS130,MS133,YS132 |
84790-30171 |
US $138.32 |
||
|
84840
|
84840
84840-30060 Switch Assy, Luggage Compartment Door Opening[09.1987 - 10.1991] GS131,LS130,MS13#,YS132..HT,SED GROVE BOX |
84840-30060 |
US $51.40 |
||
|
84840
|
84840
84840-30100-02 Switch Assy, Luggage Compartment Door Opening[09.1987 - 08.1989] LS130,YS132 MAROON,TRIM3#,FRONT DOOR TRIM |
84840-30100-02 |
US $46.59 |
||
|
84840
|
84840
84840-30100-04 Switch Assy, Luggage Compartment Door Opening[09.1987 - 08.1989] LS130,YS132 BLUE,TRIM8#,FRONT DOOR TRIM; MS132..(DLX,STD)..GEN BLUE,TRIM8#,FRONT DOOR TRIM |
84840-30100-04 |
US $46.59 |
||
| replacement | |||||
|
84840
|
84840
84840-30100-J0 Switch Assy, Luggage Compartment Door Opening[09.1987 - 08.1989] LS130,YS132 BLUE,TRIM8#,FRONT DOOR TRIM; MS132..(DLX,STD)..GEN BLUE,TRIM8#,FRONT DOOR TRIM |
84840-30100-J0 |
US $46.59 |
||
|
85500
|
85500
85500-30410 Lighter Assy, Cigarette[09.1987 - 10.1991] MS132,133..SAL,SALEX;GS131,LS130,YS132..4F,5F;MS132,135..LHD..(ROY,STD) REAR |
85500-30410 |
US $51.98 |
||
| replacement | |||||
|
85500
|
85500
85500-12240 Lighter Assy, Cigarette[09.1987 - 10.1991] MS132,133..SAL,SALEX;GS131,LS130,YS132..4F,5F;MS132,135..LHD..(ROY,STD) REAR |
85500-12240 |
from US $28.68 |
||
|
85500
|
85500
85500-30440
Lighter Assy, Cigarette
[09.1987 - 10.1991] GS131,LS130,MS13#,YS132 FRONT |
85500-30440 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-17060 Lighter Assy, Cigarette[09.1987 - 10.1991] GS131,LS130,MS13#,YS132 FRONT |
85500-17060 |
from US $30.60 |
||
|
85533
|
85533
85533-30020 Lens, Cigarette Lighter Indicator[09.1987 - 10.1991] GS131,LS130,MS13#,YS132 NO.1,FRONT; GS131,MS132,135..RHD..4FC..ROY NO.1,REAR |
85533-30020 |
US $4.51 |
||
|
85533
|
85533
85533-30040 Lens, Cigarette Lighter Indicator[09.1987 - 05.1991] MS132,133..SAL,SALEX;GS131,LS130,YS132..4F,5F;MS132,135..LHD..(ROY,STD) |
85533-30040 |
US $7.43 |
||
| replacement | |||||
|
85533
|
85533
85533-30041 Lens, Cigarette Lighter IndicatorCIGARETTE LIGHTER INDICATOR [09.1987 - 05.1991] MS132,133..SAL,SALEX;GS131,LS130,YS132..4F,5F;MS132,135..LHD..(ROY,STD) |
85533-30041 |
US $5.44 |
||
|
85533
|
85533
85533-30050 Lens, Cigarette Lighter Indicator[09.1987 - 10.1991] GS131,LS130,MS13#,YS132 NO.2,FRONT |
85533-30050 |
US $10.77 |
||
|
86640
|
86640
86640-30070
Chime Assy
[09.1987 - 09.1988] LS130..RHD..4F |
86640-30070 |
— | ||
|
86650C
|
86650C
86650-30090 Buzzer Assy, Sedimenter WarningSEDIMENTER WARNING [09.1987 - 10.1991] LS130..RHD |
86650-30090 |
US $46.30 |
||
|
9011906120
|
9011906120
90119-06120 BOLT |
90119-06120 |
US $1.12 |
||
|
9166560616
|
9166560616
91665-60616
New Genuine Part
|
91665-60616 |
— | ||
| replacement | |||||
|
9166560616
|
9166560616
91661-60616 BOLT |
91661-60616 |
from US $0.74 |
||
