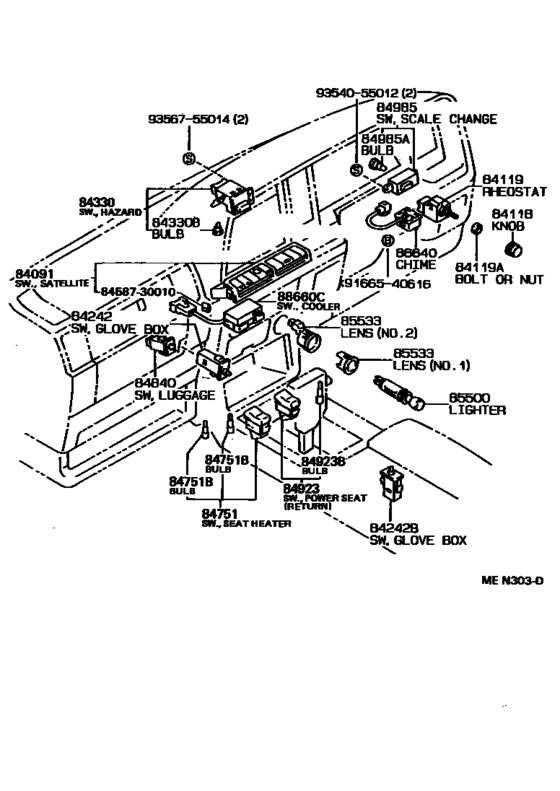

Switch & Relay & Computer ([09.1987 - ] (8709- )HT..4FC,5F) Diagram Toyota CROWN/ MAJESTA
- Year
- 1989 - 1991
- Sales region
- Japan
- Frame
- LS131
- grade
- SSL
- body
- HT
- ENGINE
- 2LT
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1989
- To
- 10.1991
- Gear Shift Type
- 5F
- Body Shape
- NOB
- Fuel Induction
- TD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84091
|
84091
84091-30280 Switch Set, Satellite[08.1989 - 10.1991] GS131,JZS131,LS131,MS135..HT..(4FC,5F)..(SALEX,SPE,SSL) |
84091-30280 |
US $251.89 |
||
|
84118
|
84118
84118-20011 Knob, Light Control Rheostat[09.1987 - 10.1991] GS130..WG..SDX; GS130..WG..(ROY,SALEX);GS130..(HT,SED)..(SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS1 3#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
84118-20011 |
US $13.80 |
||
|
84119
|
84119
84119-20082 Rheostat, Light Control[09.1987 - 10.1991] MS135,137,UZS131..4HC;GS130..WG..(ROY,SALEX);MS135,137,UZS131..4FC..NOB;GS131,JZS1 3#,LS130,131..ROY,SAL,SALEX,SDX,SPE,SSL;GS130,MS135..(HT,SED)..(SAL,SALEX,SDX,SPE) ..(EFI,HTWC,TWC); GS130..WG..SDX ﾜｺﾞﾝ ﾊﾟﾂｹ-ｼﾞ |
84119-20082 |
US $81.54 |
||
|
84119A
|
84119A
90170-09167
Nut, Tunnel Mode Select Switch
[09.1987 - 10.1991] GS130..WG..SDX; GS130..WG..(ROY,SALEX);GS130..(HT,SED)..(SAL,SALEX,SDX,SPE)..(EFI,HTWC);GS131,JZS1 3#,LS130,131,MS135,137,UZS131..ROY,ROYG,SAL,SALEX,SDX,SPE,SSL |
90170-09167 |
— | ||
|
84242
|
84242
84242-20030 Switch Assy, Courtesy Lamp (For Glove Box)[09.1987 - 10.1991] GS136..SDX;GS130,131,JZS13#,LS130,131,MS13#,UZS131..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE ,SSL |
84242-20030 |
US $18.35 |
||
|
84330
|
84330
84332-30230 Switch Assy, Hazard Warning Signal[08.1989 - 10.1991] GS131,JZS131,LS131,MS13#,UZS131..HT..(4FC,5F) |
84332-30230 |
US $57.80 |
||
|
84330B
|
84330B
84999-10310 Bulb, Air Conditioner Control[08.1989 - 10.1991] GS131,JZS131,LS131,MS13#,UZS131..HT..(4FC,5F) １４Ｖ ０．９１Ｗ |
84999-10310 |
from US $2.93 |
||
|
84840
|
84840
84840-30060 Switch Assy, Luggage Compartment Door Opening[09.1987 - 10.1991] GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(DLX,ROY,ROYG,SAL,SALEX,S DX,SPE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) GROVE BOX |
84840-30060 |
US $51.40 |
||
|
84840
|
84840
84840-30090-02 Switch Assy, Luggage Compartment Door Opening[09.1987 - 10.1991] GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,S PE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) MAROON,TRIM3#,FRONT DOOR TRIM |
84840-30090-02 |
US $46.88 |
||
| replacement | |||||
|
84840
|
84840
84840-30090-B1 Switch Assy, Luggage Compartment Door Opening[09.1987 - 10.1991] GS131;GS130,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,S PE,SSL)..(DSL,EFI,HTWC,TD,TDE,TWC) MAROON,TRIM3#,FRONT DOOR TRIM |
84840-30090-B1 |
US $46.88 |
||
|
84840
|
84840
84840-30090-04 Switch Assy, Luggage Compartment Door Opening[08.1989 - 10.1991] GS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL )..(DSL,HTWC,SPC,TD,TDE,TWC) BLUE,TRIM3#,FRONT DOOR TRIM |
84840-30090-04 |
US $46.88 |
||
| replacement | |||||
|
84840
|
84840
84840-30090-B1 Switch Assy, Luggage Compartment Door Opening[08.1989 - 10.1991] GS130,131,JZS131,LS130,131,MS13#,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SDX,SPE,SSL )..(DSL,HTWC,SPC,TD,TDE,TWC) BLUE,TRIM3#,FRONT DOOR TRIM |
84840-30090-B1 |
US $46.88 |
||
|
84840
|
84840
84840-30090-06 Switch Assy, Luggage Compartment Door Opening[09.1987 - 10.1991] GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL ) SABLE,TRIM4#,FRONT DOOR TRIM |
84840-30090-06 |
US $46.88 |
||
| replacement | |||||
|
84840
|
84840
84840-30090-B1 Switch Assy, Luggage Compartment Door Opening[09.1987 - 10.1991] GS130,131,JZS131,LS130,131,MS135,137,UZS131..(HT,SED)..(ROY,ROYG,SAL,SALEX,SPE,SSL ) SABLE,TRIM4#,FRONT DOOR TRIM |
84840-30090-B1 |
US $46.88 |
||
|
85500
|
85500
85500-30440
Lighter Assy, Cigarette
[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 FRONT |
85500-30440 |
— | ||
| replacement | |||||
|
85500
|
85500
85500-17060 Lighter Assy, Cigarette[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 FRONT |
85500-17060 |
from US $30.60 |
||
|
85533
|
85533
85533-30020 Lens, Cigarette Lighter Indicator[09.1987 - 10.1991] UZS131..4FC;GS130,131,JZS13#,MS135,137..4FC..(SPC,TWC) NO.1,REAR; GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.1,FRONT |
85533-30020 |
US $4.51 |
||
|
85533
|
85533
85533-30050 Lens, Cigarette Lighter Indicator[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130..DLX,ROY,ROYG,SAL,SALEX,SDX,SPE,SSL NO.2,FRONT |
85533-30050 |
US $10.77 |
||
|
86640
|
86640
86640-30070
Chime Assy
[09.1987 - 10.1991] MS135..ROY;JZS131,MS137,UZS131;GS13#,JZS130,LS13#,MS130,YS130..NOB |
86640-30070 |
— | ||
|
88660C
|
88660C
84660-30080
Switch Assy, Cooler Control
[08.1989 - 10.1991] GS131,JZS131,LS131,MS135..HT..(4FC,5F) |
84660-30080 |
— | ||
|
8458730010
|
8458730010
84587-30010 New Genuine Part |
84587-30010 |
US $1.89 |
||
|
9166540616
|
9166540616
91665-40616 Screw(For Steering Column Tube) |
91665-40616 |
US $1.12 |
||
| replacement | |||||
|
9166540616
|
9166540616
90080-11247 New Genuine Part |
90080-11247 |
US $2.46 |
||
|
9354055012
|
9354055012
93540-55012 SCREW, TAPPING |
93540-55012 |
US $0.96 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
