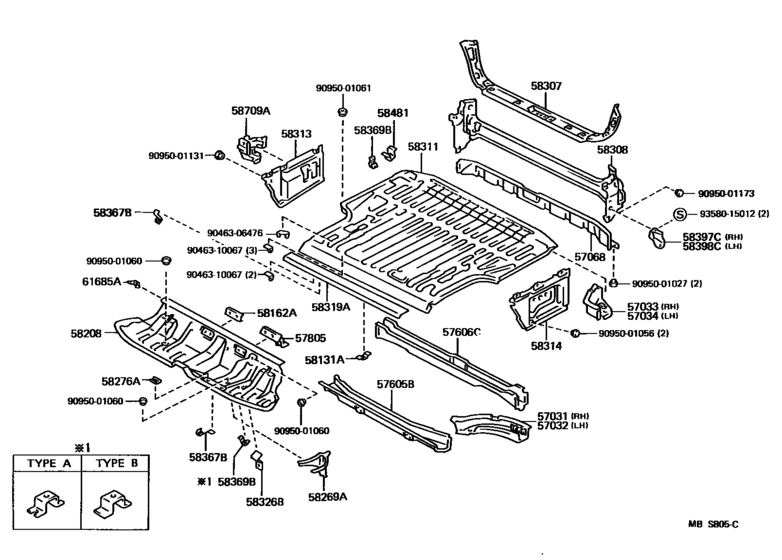

Floor Pan & Lower Back Panel ([08.1989 - ] (8908- )GS136,LS136) Diagram Toyota CROWN/ MAJESTA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- LS136
- grade
- DLX
- body
- V
- ENGINE
- 2L
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1987
- To
- 10.1991
- Gear Shift Type
- 5F
- Body Shape
- NOB
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57031
|
57031
57031-31010 Bracket Sub-Assy, No.7 Body Mounting, Rh[05.1991 - 10.1991] GS136,LS136 |
57031-31010 |
US $147.06 |
||
|
57031
|
57031
57031-91705 Bracket Sub-Assy, No.7 Body Mounting, Rh[09.1987 - 05.1991] GS136,LS136 |
57031-91705 |
US $149.97 |
||
| replacement | |||||
|
57031
|
57031
57031-31010 Bracket Sub-Assy, No.7 Body Mounting, Rh[09.1987 - 05.1991] GS136,LS136 |
57031-31010 |
US $147.06 |
||
|
57032
|
57032
57032-31010 Bracket Sub-Assy, No.7 Body Mounting, Lh[05.1991 - 10.1991] GS136,LS136 |
57032-31010 |
US $147.06 |
||
|
57032
|
57032
57032-91706 Bracket Sub-Assy, No.7 Body Mounting, Lh[09.1987 - 05.1991] GS136,LS136 |
57032-91706 |
US $149.97 |
||
| replacement | |||||
|
57032
|
57032
57032-31010 Bracket Sub-Assy, No.7 Body Mounting, Lh[09.1987 - 05.1991] GS136,LS136 |
57032-31010 |
US $147.06 |
||
|
57033
|
57033
57033-31010 Bracket Sub-Assy, No.8 Body Mounting, Rh[05.1991 - 10.1991] GS136,LS136 |
57033-31010 |
US $99.01 |
||
|
57033
|
57033
57033-91706 Bracket Sub-Assy, No.8 Body Mounting, Rh[09.1987 - 05.1991] GS136,LS136 |
57033-91706 |
US $99.01 |
||
| replacement | |||||
|
57033
|
57033
57033-31010 Bracket Sub-Assy, No.8 Body Mounting, Rh[09.1987 - 05.1991] GS136,LS136 |
57033-31010 |
US $99.01 |
||
|
57034
|
57034
57034-31010 Bracket Sub-Assy, No.8 Body Mounting, Lh[05.1991 - 10.1991] GS136,LS136 |
57034-31010 |
US $99.01 |
||
|
57034
|
57034
57034-91706 Bracket Sub-Assy, No.8 Body Mounting, Lh[09.1987 - 05.1991] GS136,LS136 |
57034-91706 |
US $99.01 |
||
| replacement | |||||
|
57034
|
57034
57034-31010 Bracket Sub-Assy, No.8 Body Mounting, Lh[09.1987 - 05.1991] GS136,LS136 |
57034-31010 |
US $99.01 |
||
|
57068
|
57068
57659-91703 Member Sub-Assy, Rear Floor Rear Cross, Inner[09.1987 - 10.1991] GS136,LS136 |
57659-91703 |
US $152.88 |
||
|
57605B
|
57605B
57605-91704 Member Sub-Assy, Rear Floor Cross, No.1[09.1987 - 10.1991] GS136,LS136 |
57605-91704 |
US $246.06 |
||
|
57606C
|
57606C
57606-91704 Member Sub-Assy, Rear Floor Cross, No.2[09.1987 - 10.1991] GS136,LS136 |
57606-91704 |
US $179.09 |
||
|
57805
|
57805
57805-31010 Reinforcement Sub-Assy, Belt Anchor[08.1990 - 05.1991] GS136,LS136 |
57805-31010 |
US $14.56 |
||
| replacement | |||||
|
57805
|
57805
57805-31020 Reinforcement Sub-Assy, Belt Anchor[08.1990 - 05.1991] GS136,LS136 |
57805-31020 |
US $24.32 |
||
|
57805
|
57805
57805-31020 Reinforcement Sub-Assy, Belt Anchor[05.1991 - 10.1991] GS136,LS136 |
57805-31020 |
US $24.32 |
||
|
57805
|
57805
57805-91701 Reinforcement Sub-Assy, Belt Anchor[09.1987 - 08.1989] GS136,LS136 |
57805-91701 |
US $14.71 |
||
| replacement | |||||
|
57805
|
57805
57805-31020 Reinforcement Sub-Assy, Belt Anchor[09.1987 - 08.1989] GS136,LS136 |
57805-31020 |
US $24.32 |
||
|
58131A
|
58131A
58131-12020 Bracket, Mounting, Floor, No.1[08.1989 - 12.1989] GS136,LS136 |
58131-12020 |
US $3.06 |
||
| replacement | |||||
|
58131A
|
58131A
58131-14030
Bracket, Mounting, Floor, No.1
[08.1989 - 12.1989] GS136,LS136 |
58131-14030 |
— | ||
|
58131A
|
58131A
58131-14030
Bracket, Mounting, Floor, No.1
[12.1989 - 10.1991] GS136,LS136 |
58131-14030 |
— | ||
|
58162A
|
58162A
58162-31010 Reinforcement, Belt Anchor To Floor Pan, Lh[08.1990 - 05.1991] GS136,LS136 |
58162-31010 |
US $19.95 |
||
| replacement | |||||
|
58162A
|
58162A
58162-31020 Reinforcement, Belt Anchor To Floor Pan, Lh[08.1990 - 05.1991] GS136,LS136 |
58162-31020 |
US $19.80 |
||
|
58162A
|
58162A
58162-31020 Reinforcement, Belt Anchor To Floor Pan, Lh[05.1991 - 10.1991] GS136,LS136 |
58162-31020 |
US $19.80 |
||
|
58208
|
58208
58211-91712 Pan, Center Floor[09.1987 - 10.1991] GS136,LS136 |
58211-91712 |
US $381.47 |
||
|
58269A
|
58269A
58269-31020 Bracket, Parking Brake Cable Guide, No.3[05.1991 - 10.1991] GS136,LS136..4FC,5F |
58269-31020 |
US $27.23 |
||
|
58269A
|
58269A
58269-91703 Bracket, Parking Brake Cable Guide, No.3[09.1987 - 05.1991] GS136,LS136..4FC,5F |
58269-91703 |
US $27.52 |
||
| replacement | |||||
|
58269A
|
58269A
58269-31020 Bracket, Parking Brake Cable Guide, No.3[09.1987 - 05.1991] GS136,LS136..4FC,5F |
58269-31020 |
US $27.23 |
||
|
58276A
|
58276A
58276-91701 Bracket, Parking Brake Cable Guide, No.2 Lh[09.1987 - 10.1991] GS136,LS136 |
58276-91701 |
US $5.10 |
||
|
58307
|
58307
58307-91707 Panel Sub-Assy, Body Lower Back[09.1987 - 08.1989] GS136,LS136 |
58307-91707 |
US $182 |
||
|
58307
|
58307
58307-91709 Panel Sub-Assy, Body Lower Back[08.1989 - 10.1991] GS136,LS136 |
58307-91709 |
US $189.28 |
||
|
58308
|
58308
58308-31010 Panel Sub-Assy, Body Lower Back, Inner[05.1991 - 10.1991] GS136,LS136 |
58308-31010 |
US $254.80 |
||
|
58308
|
58308
58308-91705 Panel Sub-Assy, Body Lower Back, Inner[09.1987 - 05.1991] GS136,LS136 |
58308-91705 |
US $256.26 |
||
| replacement | |||||
|
58308
|
58308
58308-31010 Panel Sub-Assy, Body Lower Back, Inner[09.1987 - 05.1991] GS136,LS136 |
58308-31010 |
US $254.80 |
||
|
58311
|
58311
58311-31010 Pan, Rear Floor[05.1991 - 10.1991] GS136,LS136 |
58311-31010 |
US $611.52 |
||
|
58311
|
58311
58311-91707 Pan, Rear Floor[09.1987 - 05.1991] GS136,LS136 |
58311-91707 |
US $614.43 |
||
| replacement | |||||
|
58311
|
58311
58311-31010 Pan, Rear Floor[09.1987 - 05.1991] GS136,LS136 |
58311-31010 |
US $611.52 |
||
|
58313
|
58313
58313-91705 Panel, Rear Floor Side, Rh[09.1987 - 10.1991] GS136,LS136 |
58313-91705 |
US $74.26 |
||
|
58314
|
58314
58314-31010 Panel, Rear Floor Side, Lh[05.1991 - 10.1991] GS136,LS136 |
58314-31010 |
US $147.06 |
||
|
58314
|
58314
58314-91704 Panel, Rear Floor Side, Lh[09.1987 - 05.1991] GS136,LS136 |
58314-91704 |
US $151.42 |
||
| replacement | |||||
|
58314
|
58314
58314-31010 Panel, Rear Floor Side, Lh[09.1987 - 05.1991] GS136,LS136 |
58314-31010 |
US $147.06 |
||
|
58319A
|
58319A
58024-91702 Plate, Rear Floor Panel, Front[09.1987 - 10.1991] GS136,LS136 |
58024-91702 |
US $42.37 |
||
|
58326B
|
58326B
58326-31010 Bracket, Flexible Hose Mounting[05.1991 - 10.1991] GS136,LS136 |
58326-31010 |
US $14.41 |
||
|
58326B
|
58326B
58326-91701
Bracket, Flexible Hose
[09.1987 - 05.1991] GS136,LS136 |
58326-91701 |
— | ||
| replacement | |||||
|
58326B
|
58326B
58326-31010 Bracket, Flexible Hose Mounting[09.1987 - 05.1991] GS136,LS136 |
58326-31010 |
US $14.41 |
||
|
58367B
|
58367B
58367-31010
Bracket, Fuel Tube
[05.1991 - 10.1991] GS136,LS136 |
58367-31010 |
— | ||
|
58367B
|
58367B
58367-91704 Bracket, Fuel Tube Clamp[09.1987 - 05.1991] GS136,LS136 ｾﾝﾀ- ﾌﾛｱ |
58367-91704 |
US $14.56 |
||
| replacement | |||||
|
58367B
|
58367B
58367-31010
Bracket, Fuel Tube
[09.1987 - 05.1991] GS136,LS136 ｾﾝﾀ- ﾌﾛｱ |
58367-31010 |
— | ||
|
58369B
|
58369B
58369-30040 Bracket, Fuel Tube, No.3[09.1987 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 タイプ Ａ |
58369-30040 |
US $3.93 |
||
|
58369B
|
58369B
58369-32010 Bracket, Insulator Heat[08.1989 - 10.1991] GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 タイプ Ｂ |
58369-32010 |
US $3.32 |
||
|
58397C
|
58397C
58397-31010 Cover, Body Lower Back, Rh[05.1991 - 10.1991] GS130,136,JZS130,LS130,136..V,WG |
58397-31010 |
US $10.92 |
||
|
58397C
|
58397C
58397-91704 Cover, Body Lower Back, Rh[09.1987 - 05.1991] GS130,136,JZS130,LS130,136..V,WG |
58397-91704 |
US $10.92 |
||
| replacement | |||||
|
58397C
|
58397C
58397-31010 Cover, Body Lower Back, Rh[09.1987 - 05.1991] GS130,136,JZS130,LS130,136..V,WG |
58397-31010 |
US $10.92 |
||
|
58398C
|
58398C
58398-31010 Cover, Body Lower Back, Lh[05.1991 - 10.1991] GS130,136,JZS130,LS130,136..V,WG |
58398-31010 |
US $10.92 |
||
|
58398C
|
58398C
58398-91704 Cover, Body Lower Back, Lh[09.1987 - 05.1991] GS130,136,JZS130,LS130,136..V,WG |
58398-91704 |
US $10.92 |
||
| replacement | |||||
|
58398C
|
58398C
58398-31010 Cover, Body Lower Back, Lh[09.1987 - 05.1991] GS130,136,JZS130,LS130,136..V,WG |
58398-31010 |
US $10.92 |
||
|
58481
|
58481
58369-31010 Bracket, Fuel Tube, No.3[05.1991 - 10.1991] GS136,LS136 |
58369-31010 |
US $10.63 |
||
|
58481
|
58481
58481-91701
Plate, Bleether Tube Catch
[09.1987 - 08.1990] GS130,136,LS130,136..V,WG |
58481-91701 |
— | ||
| replacement | |||||
|
58481
|
58481
58369-31010 Bracket, Fuel Tube, No.3[09.1987 - 08.1990] GS130,136,LS130,136..V,WG |
58369-31010 |
US $10.63 |
||
|
58709A
|
58709A
58709-91703 Carrier Sub-Assy, Jack[09.1987 - 10.1991] GS136,LS136 |
58709-91703 |
US $170.35 |
||
|
61685A
|
61685A
61685-91602 Bracket, Rear Seat Back Mounting[09.1987 - 10.1991] GS130,136,LS136..(V,WG)..(DLX,SDX,STD) |
61685-91602 |
US $2.77 |
||
|
9046306476
|
9046306476
90463-06476
Clamp, No.2(For Rear Floor)
|
90463-06476 |
— | ||
|
9046310067
|
9046310067
90463-10067 Clamp, No.1(For Rear Floor) |
90463-10067 |
US $2.62 |
||
|
9095001027
|
9095001027
90950-01027 Plug, Hole, No.3(For Dash Panel) |
90950-01027 |
US $3.20 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001061
|
9095001061
90950-01061
Plug, Hole, No.3(For Dash Panel)
|
90950-01061 |
— | ||
| replacement | |||||
|
9095001061
|
9095001061
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9095001131
|
9095001131
90950-01131
PLUG HOLE
|
90950-01131 |
— | ||
| replacement | |||||
|
9095001131
|
9095001131
90950-01865 PLUG HOLE |
90950-01865 |
from US $1.31 |
||
|
9095001173
|
9095001173
90950-01173 New Genuine Part |
90950-01173 |
US $2.18 |
||
| replacement | |||||
|
9095001173
|
9095001173
90950-01684 PLUG HOLE |
90950-01684 |
from US $2.79 |
||
|
9358015012
|
9358015012
93580-15012 New Genuine Part |
93580-15012 |
US $1.31 |
||
| replacement | |||||
|
9358015012
|
9358015012
90099-00324 New Genuine Part |
90099-00324 |
US $1.46 |
||
