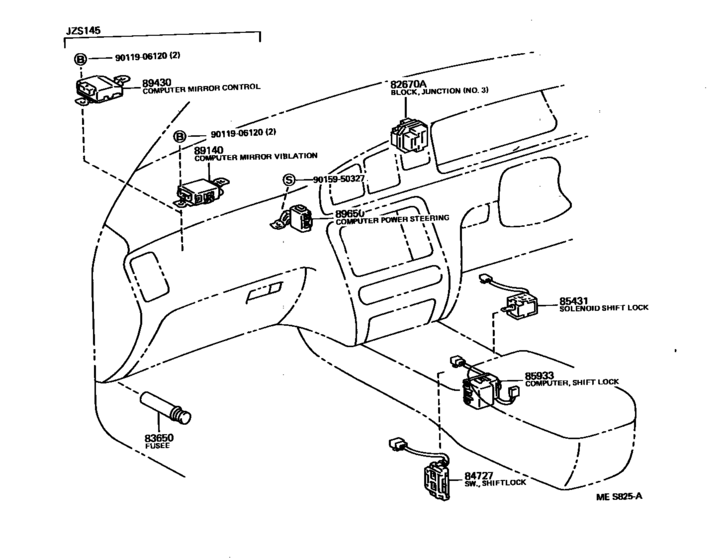

Switch & Relay & Computer ([10.1991 - 08.1995] COWL LH (9110-9508)GS141,JZS141,143,145,LS141) Diagram Toyota CROWN/ MAJESTA
- Year
- 1993 - 1995
- Sales region
- Japan
- Frame
- LS141
- grade
- SSL
- ENGINE
- 2LTE
- Model
- CROWN/ CROWN MAJESTA
- From
- 08.1993
- To
- 08.1995
- Gear Shift Type
- 4FC
- Fuel Induction
- TDE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82670A
|
82670A
82670-30150 Block Assy, Junction, No.1[10.1991 - 08.1995] GS141,JZS141,143,145,LS141 |
82670-30150 |
US $52.71 |
||
|
83650
|
83650
90986-01005
Fusee
[10.1991 - 08.1995] GS141,JZS14#,LS141,UZS14# |
90986-01005 |
— | ||
|
84727
|
84727
84727-30040 Switch, Shift Lock Control[10.1991 - 08.1995] GS141,JZS141,143,145,LS141 |
84727-30040 |
US $48.19 |
||
|
85431
|
85431
85431-30040 Solenoid, Shift Lock[10.1991 - 08.1995] GS141,JZS141,143,145,LS141 |
85431-30040 |
US $63.77 |
||
| replacement | |||||
|
85431
|
85431
85431-30030 Solenoid, Shift Lock[10.1991 - 08.1995] GS141,JZS141,143,145,LS141 |
85431-30030 |
US $63.92 |
||
|
85933
|
85933
85933-30040 Computer, Shift Lock Control[10.1991 - 08.1995] GS141,JZS141,143,145,LS141 |
85933-30040 |
US $136.86 |
||
|
9011906120
|
9011906120
90119-06120 BOLT |
90119-06120 |
US $1.12 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.74 |
||
