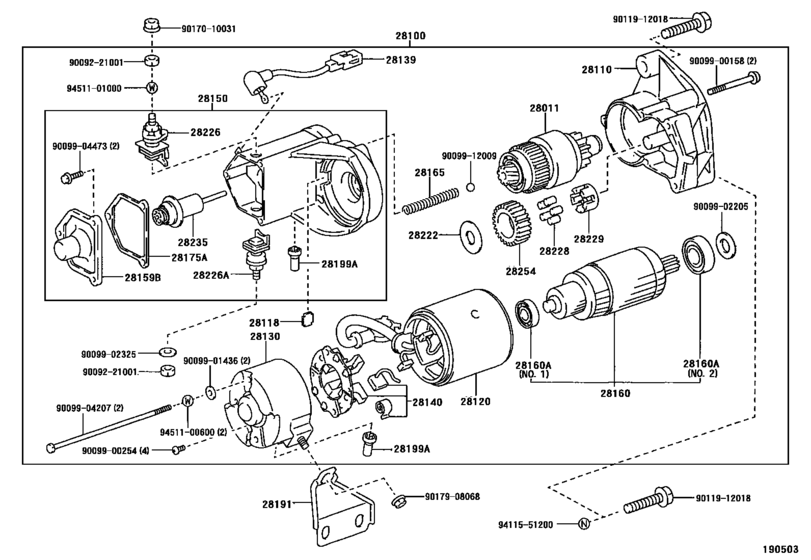

Starter ([08.1995 - ] 12V 2.7KW (9508- )2LTE) Diagram Toyota CROWN/ MAJESTA
- Year
- 1995 - 1999
- Sales region
- Japan
- Frame
- LS151
- grade
- SPDLX
- body
- SED
- ENGINE
- 2LTE
- TRANSMISSION
- ATM
- Model
- CROWN/ CROWN MAJESTA
- From
- 12.1995
- To
- 09.1999
- Gear Shift Type
- 4FC
- Body Shape
- NOB
- Fuel Induction
- TDE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-54010 Clutch Sub-Assy, Starter[08.1995 - 09.1999] 2LTE..LS151 |
28011-54010 |
from US $200.05 |
||
|
28100
|
28100
28100-54370 Starter Assy[08.1995 - 09.1999] 2LTE..LS151 １２Ｖ ２．７ＫＷ |
28100-54370 |
US $2,169.44 |
||
|
28110
|
28110
28115-54011
Housing Assy, Starter Drive
[08.1995 - 09.1999] 2LTE..LS151 |
28115-54011 |
— | ||
|
28118
|
28118
28118-77090
Plate(For Starter Yoke)
[08.1995 -] 2LTE..LS151 |
28118-77090 |
— | ||
|
28120
|
28120
28120-56081
Yoke Assy, Starter
[08.1995 - 09.1999] 2LTE..LS151 |
28120-56081 |
— | ||
|
28130
|
28130
28130-54390
Frame Assy, Starter Commutator End
[08.1995 - 09.1999] 2LTE..LS151 |
28130-54390 |
— | ||
|
28139
|
28139
28139-54251
Wire, Lead, No.1(For Starter)
[08.1995 -] 2LTE..LS151 |
28139-54251 |
— | ||
| replacement | |||||
|
28139
|
28139
28139-56290
Wire, Lead, No.1(For Starter)
[08.1995 -] 2LTE..LS151 |
28139-56290 |
— | ||
|
28140
|
28140
28140-77090 Holder Assy, Starter Brush[08.1995 - 09.1999] 2LTE..LS151 |
28140-77090 |
from US $60.98 |
||
|
28150
|
28150
28150-54320 Switch Assy, Magnet Starter[08.1995 - 09.1999] 2LTE..LS151 12V 2.7KW |
28150-54320 |
US $336.34 |
||
|
28159B
|
28159B
28159-56310
Cover, Magnet Switch
[08.1995 - 09.1999] 2LTE..LS151 |
28159-56310 |
— | ||
|
28160
|
28160
28160-54140 Armature Assy, Starter[08.1995 - 09.1999] 2LTE..LS151 |
28160-54140 |
from US $193.85 |
||
|
28160A
|
28160A
90099-10107 Bearing, Starter Armature[08.1995 - 09.1999] 2LTE..LS151 ＮＯ．１ |
90099-10107 |
US $5.24 |
||
|
28160A
|
28160A
90099-10119 Bearing, Starter Armature[08.1995 - 09.1999] 2LTE..LS151 ＮＯ．２ |
90099-10119 |
from US $7.34 |
||
|
28165
|
28165
28165-77090
Spring, Starter Magnet Switch Return
[08.1995 - 09.1999] 2LTE..LS151 |
28165-77090 |
— | ||
|
28175A
|
28175A
28175-56310 Gasket, Magnet Switch Cover[08.1995 - 09.1999] 2LTE..LS151 |
28175-56310 |
from US $1.92 |
||
|
28191
|
28191
28191-54030 Stay, Starter[08.1995 -] 2LTE..LS151 |
28191-54030 |
US $25.19 |
||
|
28199A
|
28199A
28199-46080 Cover, Starter End Frame[08.1995 -] 2LTE..LS151 ＮＯ．１ |
28199-46080 |
from US $2.97 |
||
|
28199A
|
28199A
28199-54190 Cover, Starter End Frame[08.1995 -] 2LTE..LS151 ＮＯ．２ |
28199-54190 |
US $1.92 |
||
|
28222
|
28222
28222-54370
Washer, Starter Idle Gear Clutch
[08.1995 -] 2LTE..LS151 |
28222-54370 |
— | ||
|
28226
|
28226
28226-54320 Starter Kit, Battery Terminal[08.1995 - 09.1999] 2LTE..LS151 |
28226-54320 |
from US $10.80 |
||
|
28226A
|
28226A
28226-54220 Starter Kit, Motor Terminal[08.1995 - 09.1999] 2LTE..LS151 |
28226-54220 |
from US $12.44 |
||
|
28228
|
28228
28228-56080
Roller, Starter Idle Gear Clutch
[08.1995 - 09.1999] 2LTE..LS151 |
28228-56080 |
— | ||
|
28229
|
28229
28229-56080
Retainer, Starter Idle Gear
[08.1995 - 09.1999] 2LTE..LS151 |
28229-56080 |
— | ||
|
28235
|
28235
28235-17030 Plunger, Magnet Switch[08.1995 - 09.1999] 2LTE..LS151 |
28235-17030 |
from US $25.68 |
||
|
28254
|
28254
28254-77090
Pinion, Starter Drive
[08.1995 - 09.1999] 2LTE..LS151 |
28254-77090 |
— | ||
|
9009221001
|
9009221001
90092-21001 NUT |
90092-21001 |
US $1.46 |
||
|
9009900158
|
9009900158
90099-00158
SCREW
|
90099-00158 |
— | ||
|
9009900254
|
9009900254
90099-00254
New Genuine Part
|
90099-00254 |
— | ||
|
9009901436
|
9009901436
90099-01436
New Genuine Part
|
90099-01436 |
— | ||
|
9009902205
|
9009902205
90099-02205
Washer, Felt, Starter
|
90099-02205 |
— | ||
|
9009902325
|
9009902325
90099-02325 WASHER |
90099-02325 |
from US $0.29 |
||
|
9009904207
|
9009904207
90099-04207
New Genuine Part
|
90099-04207 |
— | ||
|
9009904473
|
9009904473
90099-04473
New Genuine Part
|
90099-04473 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9011912018
|
9011912018
90119-12018 New Genuine Part |
90119-12018 |
US $3.49 |
||
|
9017010031
|
9017010031
90170-10031 New Genuine Part |
90170-10031 |
US $2.62 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
US $1.60 |
||
|
9411551200
|
9411551200
94115-51200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-51200 |
US $2.72 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
