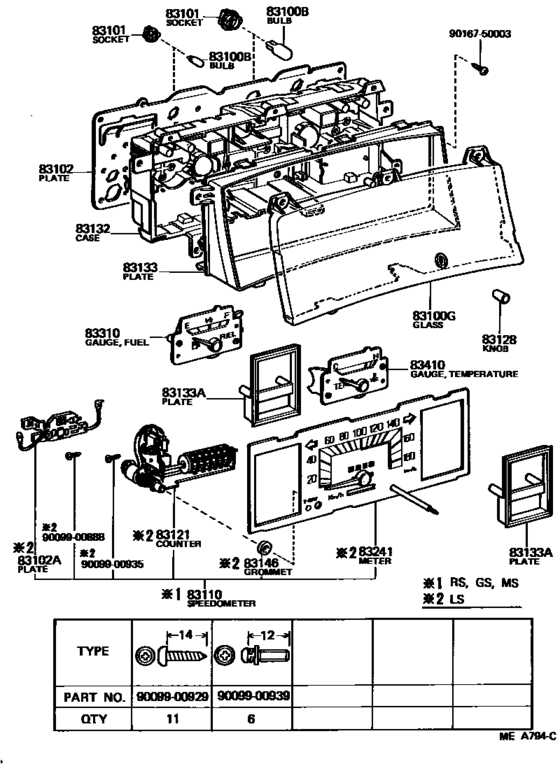

Meter ([08.1981 - ] (8108- )SED,V,WG..BTP,DLX,ROY,SAL,SDX,STD..CB R,DSL,EFI,LPG,TWC) Diagram Toyota CROWN/ MAJESTA
- Year
- 1981 - 1983
- Sales region
- Japan
- Frame
- MS110
- grade
- DLX
- body
- SED
- ENGINE
- MU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1981
- To
- 07.1983
- Gear Shift Type
- 3FC
- No.of Doors
- 4D
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[09.1979 - 08.1981] LS11#,MS11#;RS110..BTP,DLX,STD １２Ｖ １．２Ｗ ソケット無し,12V 1.4W |
90981-11018 |
from US $2.24 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[08.1981 - 07.1983] GS11#,LS11#,MS11#,RS110 １２Ｖ ３．４Ｗ,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[08.1981 - 07.1983] GS11#,LS11#,MS11#,RS110 １２Ｖ ３．４Ｗ,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83138-30710
Glass, Combination Meter
[08.1981 - 07.1983] GS11#,LS110,117,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,DSL,EFI,L PG,TWC) |
83138-30710 |
— | ||
|
83100G
|
83100G
83138-30830
Glass, Combination Meter
[09.1979 - 08.1981] MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,EFI,LPG) |
83138-30830 |
— | ||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[08.1981 - 07.1983] GS11#,LS11#,MS11#,RS110 12V 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[09.1979 - 08.1981] LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.4W |
83101-14040 |
US $3.02 |
||
|
83102
|
83102
83247-30170
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1981 - 07.1983] GS11#,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,EFI,LPG) |
83247-30170 |
— | ||
|
83102
|
83102
83247-30840
Plate Sub-Assy, Combination Meter Circuit, No.1
[09.1979 - 08.1981] MS117..SDX; MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX)..(CBR,EFI,LPG) |
83247-30840 |
— | ||
|
83110
|
83110
83110-30610 Speedometer Assy[09.1979 - 08.1981] MS110,117..(SED,V,WG)..(BTP,DLX,SDX,STD) W/O AUTO DRIVE |
83110-30610 |
US $429.52 |
||
| replacement | |||||
|
83110
|
83110
83110-30620 Speedometer Assy[09.1979 - 08.1981] MS110,117..(SED,V,WG)..(BTP,DLX,SDX,STD) W/O AUTO DRIVE |
83110-30620 |
US $388.75 |
||
|
83110
|
83110
83110-30790 Speedometer Assy[08.1981 - 07.1983] GS11#,MS110,117..BTP,DLX,SDX,STD |
83110-30790 |
US $433.89 |
||
| replacement | |||||
|
83110
|
83110
83110-30820 Speedometer Assy[08.1981 - 07.1983] GS11#,MS110,117..BTP,DLX,SDX,STD |
83110-30820 |
US $390.21 |
||
|
83128
|
83128
83128-10260
Knob, Trip Counter
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
83128-10260 |
— | ||
|
83132
|
83132
83132-30010
Case, Combination Meter
[08.1981 - 07.1983] GS11#,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,EFI,LPG,TWC) |
83132-30010 |
— | ||
|
83132
|
83132
83132-30830
Case, Combination Meter
[09.1979 - 08.1981] MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,EFI,LPG) |
83132-30830 |
— | ||
|
83133
|
83133
83133-30010
Plate, Combination Meter, No.1
[08.1981 - 07.1983] GS11#,LS110,117,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,DSL,EFI,L PG,TWC) |
83133-30010 |
— | ||
|
83133
|
83133
83133-30830
Plate, Combination Meter, No.1
[09.1979 - 08.1981] MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,EFI,LPG) |
83133-30830 |
— | ||
|
83133A
|
83133A
83133-30030
Plate, Combination Meter, No.2
[08.1981 - 07.1983] GS11#,LS110,117,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,DSL,EFI,L PG,TWC) |
83133-30030 |
— | ||
|
83310
|
83310
83243-30800 Gage Assy, Fuel ReceiverFUEL RECEIVER [09.1979 - 08.1981] LS110..CTE; LS11#,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,DSL,EFI,LPG) |
83243-30800 |
US $58.68 |
||
|
83310
|
83310
83243-30830 Gage Assy, Fuel ReceiverFUEL RECEIVER [08.1981 - 07.1983] GS11#,LS110,117,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,DSL,EFI,L PG,TWC) |
83243-30830 |
US $58.68 |
||
|
83410
|
83410
83244-30800 Gage Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [09.1979 - 08.1981] LS110..CTE; LS11#,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,DSL,EFI,LPG) |
83244-30800 |
US $58.68 |
||
|
83410
|
83410
83244-30830 Gage Assy, Water Temperature ReceiverWATER TEMPERATURE RECEIVER [08.1981 - 07.1983] GS11#,LS110,117,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,STD)..(CBR,DSL,EFI,L PG,TWC) |
83244-30830 |
US $58.68 |
||
|
9009900888
|
9009900888
90099-00888
New Genuine Part
|
90099-00888 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9009900935
|
9009900935
90099-00935
New Genuine Part
|
90099-00935 |
— | ||
|
9009900939
|
9009900939
90099-00939 New Genuine Part |
90099-00939 |
US $1.89 |
||
|
9016750003
|
9016750003
90167-50003 New Genuine Part |
90167-50003 |
US $1.75 |
||
| replacement | |||||
|
9016750003
|
9016750003
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
