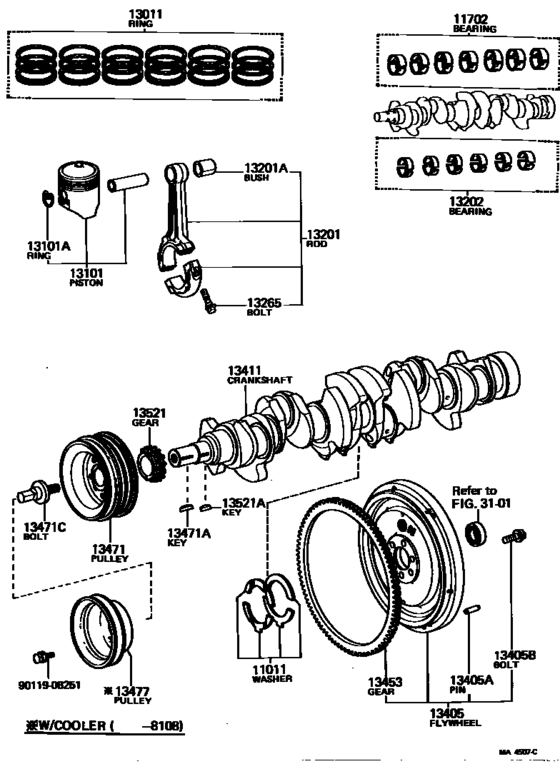

Crankshaft & Piston ([09.1979 - ] (7909- )MEU,MJ,MTEU,MU) Diagram Toyota CROWN/ MAJESTA
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- MS110
- grade
- SDX
- body
- SED
- ENGINE
- MEU
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1979
- To
- 08.1981
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-43010 Washer Set, Crankshaft Thrust[09.1979 - 07.1983] MEU,MJ,5M#,MTEU,MU..MS11# ＳＴＤ,STD |
11011-43010 |
US $26.56 |
||
|
11011
|
11011
11012-43010
Washer Set, Crankshaft Thrust
[09.1979 - 07.1983] MEU,MJ,5M#,MTEU,MU..MS11# Ｏ／Ｓ ０．１２５,O/S 0.125 |
11012-43010 |
— | ||
|
11011
|
11011
11013-43010
Washer Set, Crankshaft Thrust
[09.1979 - 07.1983] MEU,MJ,5M#,MTEU,MU..MS11# Ｏ／Ｓ ０．２５０,O/S 0.250 |
11013-43010 |
— | ||
|
11702
|
11702
11702-45011
Bearing Set, Crankshaft
[09.1979 - 07.1983] MEU,MJ,5M#,MTEU,MU..MS11# ＳＴＤ,STD |
11702-45011 |
— | ||
|
11702
|
11702
11703-45011 Bearing Set, Crankshaft[09.1979 - 07.1983] MEU,MJ,5M#,MTEU,MU..MS11# Ｕ／Ｓ ０．０５,U/S 0.05 |
11703-45011 |
US $301.39 |
||
|
11702
|
11702
11704-45011
Bearing Set, Crankshaft
[09.1979 - 07.1983] MEU,MJ,5M#,MTEU,MU..MS11# Ｕ／Ｓ ０．２５,U/S 0.25 |
11704-45011 |
— | ||
|
11702
|
11702
11705-45011
Bearing Set, Crankshaft
[09.1979 - 07.1983] MEU,MJ,5M#,MTEU,MU..MS11# Ｕ／Ｓ ０．５０,U/S 0.50 |
11705-45011 |
— | ||
|
13011
|
13011
13011-41015 Ring Set, Piston[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117 ＳＴＤ,STD |
13011-41015 |
US $248.98 |
||
|
13011
|
13011
13013-41015
Ring Set, Piston
[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117 Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-41015 |
— | ||
|
13011
|
13011
13014-41015 Ring Set, Piston[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117 Ｏ／Ｓ ０．７５,O/S 0.75 |
13014-41015 |
US $248.98 |
||
|
13011
|
13011
13015-41015 Ring Set, Piston[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117 Ｏ／Ｓ １．００,O/S 1.00 |
13015-41015 |
US $248.98 |
||
|
13101
|
13101
13101-41040 Piston Sub-Assy, W/pinW/PIN [09.1979 - 07.1983] MEU,MJ,MU..MS110,117 STD |
13101-41040 |
US $100.46 |
||
|
13101
|
13101
13103-41040 Piston Sub-Assy, W/pinW/PIN [09.1979 - 07.1983] MEU,MJ,MU..MS110,117 O/S 0.50 |
13103-41040 |
US $109.20 |
||
|
13101
|
13101
13104-41040 Piston Sub-Assy, W/pinW/PIN [09.1979 - 07.1983] MEU,MJ,MU..MS110,117 O/S 0.75 |
13104-41040 |
US $109.20 |
||
|
13101
|
13101
13105-41040 Piston Sub-Assy, W/pinW/PIN [09.1979 - 07.1983] MEU,MJ,MU..MS110,117 O/S 1.00 |
13105-41040 |
US $109.20 |
||
|
13101A
|
13101A
90521-25052 Ring, Hole Snap(For Piston Pin)[09.1979 - 07.1983] MEU,MJ,5M#,MTEU,MU..MS11# |
90521-25052 |
US $2.48 |
||
|
13201
|
13201
13201-41011 Rod Sub-Assy, Connecting[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117 |
13201-41011 |
US $179.09 |
||
|
13201A
|
13201A
90999-73066 Bush(For Connecting Rod Small End)[09.1979 - 07.1983] MEU,MJ,5M#,MTEU,MU..MS11# |
90999-73066 |
US $7.16 |
||
|
13202
|
13202
13202-45011
Bearing, Connecting Rod
[09.1979 - 07.1983] MEU,MJ,5M#,MTEU,MU..MS11# ＳＴＤ,STD |
13202-45011 |
— | ||
|
13202
|
13202
13203-45011 Bearing Set, Connecting Rod[09.1979 - 07.1983] MEU,MJ,5M#,MTEU,MU..MS11# Ｕ／Ｓ ０．０５,U/S 0.05 |
13203-45011 |
US $160.16 |
||
|
13202
|
13202
13204-45011
Bearing Set, Connecting Rod
[09.1979 - 07.1983] MEU,MJ,5M#,MTEU,MU..MS11# Ｕ／Ｓ ０．２５,U/S 0.25 |
13204-45011 |
— | ||
|
13202
|
13202
13205-45011
Bearing Set, Connecting Rod
[09.1979 - 07.1983] MEU,MJ,5M#,MTEU,MU..MS11# Ｕ／Ｓ ０．５０,U/S 0.50 |
13205-45011 |
— | ||
|
13265
|
13265
90910-02044 Bolt, Connecting Rod[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117 |
90910-02044 |
US $3.35 |
||
|
13405
|
13405
13405-49116 Flywheel Sub-Assy[09.1979 - 07.1983] MEU,MJ,5MEU,MU..MS11#..MTM N=115 |
13405-49116 |
US $416.42 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[09.1979 - 07.1983] 5RU..RS110 長さ＝２３，外径＝８,L=23,OD=8; MEU,MJ,5MEU,MU..MS11#..MTM 長さ＝２３，外径＝８,L=23,OD=8; L,2LT..LS11#..MTM 長さ＝２３，外径＝８,L=23,OD=8; 1GE#..GS11#..MTM 長さ＝２３，外径＝８,L=23,OD=8 |
90250-08054 |
from US $1.07 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[09.1979 - 07.1983] 5RU..RS110 *10-1.25PX26-18; MEU,MJ,5MEU,MU..MS11#..MTM *10-1.25PX26-18; 1GE#..GS11#..MTM *10-1.25PX26-18 |
90105-10042 |
US $1.76 |
||
|
13411
|
13411
13411-41015 Crankshaft[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117 |
13411-41015 |
US $1,587.04 |
||
| replacements | |||||
|
13411
|
13411
13411-41016 Crankshaft[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117 |
13411-41016 |
US $1,601.60 |
||
|
13411
|
13411
90280-05003 Key, Crankshaft(For Crankshaft Pulley Set)[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117 |
90280-05003 |
US $2.62 |
||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[09.1979 - 07.1983] 5RU..RS110 N=115; MEU,MJ,5MEU,MU..MS11#..MTM N=115; 1GE#..GS11#..MTM N=115 |
13453-20010 |
from US $67.79 |
||
|
13471
|
13471
13407-41021
Pulley, Crankshaft
[09.1979 - 07.1983] MEU,MJ,5MEU,MTEU,MU..MS11# |
13407-41021 |
— | ||
|
13471A
|
13471A
90280-05001 Key, Crankshaft(For Crankshaft Pulley Set)[09.1979 - 07.1983] MEU,MJ,5M#,MTEU,MU..MS11# |
90280-05001 |
US $3.32 |
||
|
13471C
|
13471C
90105-16002
Bolt(For Crankshaft Pulley Set)
[09.1979 - 03.1982] MEU,MJ,5M#,MTEU,MU..MS11# *16-1.5PX26-21 |
90105-16002 |
— | ||
| replacement | |||||
|
13471C
|
13471C
90105-16011
Bolt(For Crankshaft Pulley Set)
[09.1979 - 03.1982] MEU,MJ,5M#,MTEU,MU..MS11# *16-1.5PX26-21 |
90105-16011 |
— | ||
|
13477
|
13477
88451-30330 Pulley, Crankshaft, No.2[09.1979 - 07.1983] MEU,MJ,5MEU,MTEU,MU..MS11#..CBR,EFI,TBO ST |
88451-30330 |
US $47.90 |
||
|
13521
|
13521
13521-41011 Gear Or Sprocket, Crankshaft Timing[09.1979 - 07.1983] MEU,MJ,5MEU,MTEU,MU..MS11# N=20 |
13521-41011 |
US $50.38 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[09.1979 - 07.1983] MEU,MJ,5M#,MTEU,MU..MS11# |
90280-05010 |
from US $1.83 |
||
|
9011908251
|
9011908251
90119-08251 BOLT |
90119-08251 |
US $1.28 |
||
