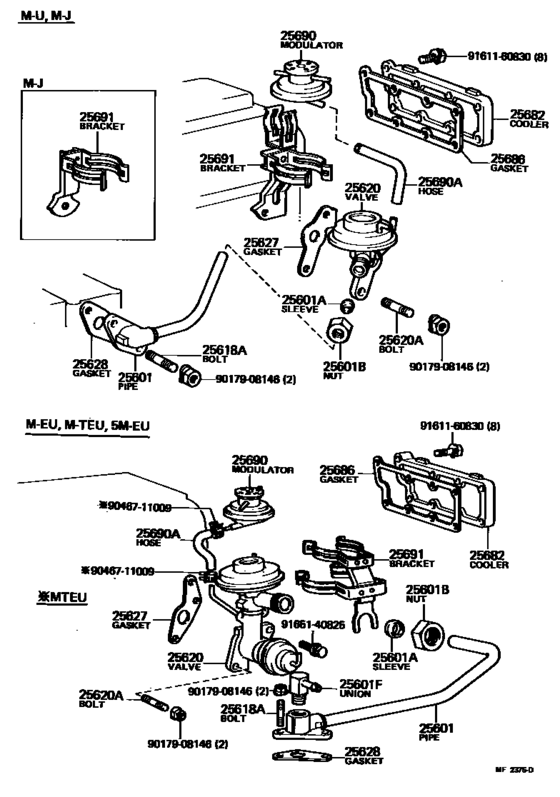

Exhaust Gas Recirculation System ([09.1979 - ] (7909- )MEU,MJ,5MEU,MTEU,MU) Diagram Toyota CROWN/ MAJESTA
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- MS110
- grade
- SDX
- body
- SED
- ENGINE
- MEU
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1979
- To
- 08.1981
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-45010 Pipe Sub-Assy, Egr, No.1EGR, NO.1 [09.1979 - 07.1983] MEU,5MEU,MTEU..MS110,112 |
25601-45010 |
US $80.08 |
||
|
25601A
|
25601A
90410-14001 Sleeve, Ball, Egr Pipe, No.1[09.1979 - 07.1983] MEU,MJ,5MEU,MTEU,MU..MS11# |
90410-14001 |
US $5.39 |
||
| replacement | |||||
|
25601A
|
25601A
90410-14003
Sleeve, Ball, Egr Pipe, No.1
[09.1979 - 07.1983] MEU,MJ,5MEU,MTEU,MU..MS11# |
90410-14003 |
— | ||
|
25601B
|
25601B
90402-22076 Nut, Union, Egr Pipe, No.1[09.1979 - 07.1983] MEU,MJ,5MEU,MTEU,MU..MS11# |
90402-22076 |
US $6.99 |
||
|
25601F
|
25601F
90404-53027
Union(For Egr Pipe, No.1)
[09.1979 - 07.1983] MEU,5MEU,MTEU..MS110,112 |
90404-53027 |
— | ||
|
25618A
|
25618A
90116-08025 Bolt, Stud(For Water Outlet Setting)[09.1979 - 07.1983] MEU,MJ,5MEU,MTEU,MU..MS11# |
90116-08025 |
US $1.89 |
||
|
25620
|
25620
25620-41100 Valve Assy, EgrEGR [09.1979 - 07.1983] MEU,5MEU..MS110,112 |
25620-41100 |
US $336.34 |
||
|
25620A
|
25620A
90116-08025 Bolt, Stud(For Water Outlet Setting)[09.1979 - 07.1983] MEU,MJ,5M#,MTEU,MU..MS11# L=34,S=16&11 |
90116-08025 |
US $1.89 |
||
|
25627
|
25627
25627-45020 Gasket, Egr ValveEGR VALVE [09.1979 - 07.1983] MEU,5MEU,MTEU..MS110,112 |
25627-45020 |
US $4.80 |
||
| replacement | |||||
|
25627
|
25627
25627-43070 Gasket, Egr Valve[09.1979 - 07.1983] MEU,5MEU,MTEU..MS110,112 |
25627-43070 |
US $5.24 |
||
|
25628
|
25628
25628-45020 Gasket, Egr Inlet[09.1979 - 07.1983] MEU,5MEU,MTEU..MS110,112 |
25628-45020 |
US $3.93 |
||
| replacement | |||||
|
25628
|
25628
25628-43040 Gasket, Egr Inlet[09.1979 - 07.1983] MEU,5MEU,MTEU..MS110,112 |
25628-43040 |
US $3.93 |
||
|
25682
|
25682
25682-45020 Cooler, Egr, No.2[09.1979 - 07.1983] MEU,MJ,5MEU,MTEU,MU..MS11# |
25682-45020 |
US $87.36 |
||
|
25686
|
25686
25686-45010
Gasket, Egr Cooler, No.2
[09.1979 - 07.1983] MEU,MJ,5MEU,MTEU,MU..MS11# |
25686-45010 |
— | ||
| replacement | |||||
|
25686
|
25686
25686-43010
Gasket, Egr Cooler, No.2
[09.1979 - 07.1983] MEU,MJ,5MEU,MTEU,MU..MS11# |
25686-43010 |
— | ||
|
25690
|
25690
25690-45020 Modulator Assy, Egr VacuumEGR VACUUM [09.1979 - 07.1983] MEU,5MEU..MS110,112 |
25690-45020 |
US $90.27 |
||
|
25690A
|
25690A
90445-11017 Hose(For Egr Vacuum Modulator)[09.1979 - 02.1981] MEU,MJ,5MEU,MTEU,MU..MS11# |
90445-11017 |
US $3.49 |
||
|
25691
|
25691
25691-45020 Bracket, Egr Vacuum ModulatorEGR VACUUM MODULATOR [09.1979 - 07.1983] MEU,5MEU,MTEU..MS110,112 |
25691-45020 |
US $9.46 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9046711009
|
9046711009
90467-11009
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-11009 |
— | ||
| replacement | |||||
|
9046711009
|
9046711009
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.93 |
||
|
9161160830
|
9161160830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.50 |
||
|
9165140825
|
9165140825
91651-40825 Bolt(For Clutch Release Cylinder Setting) |
91651-40825 |
US $3.20 |
||
