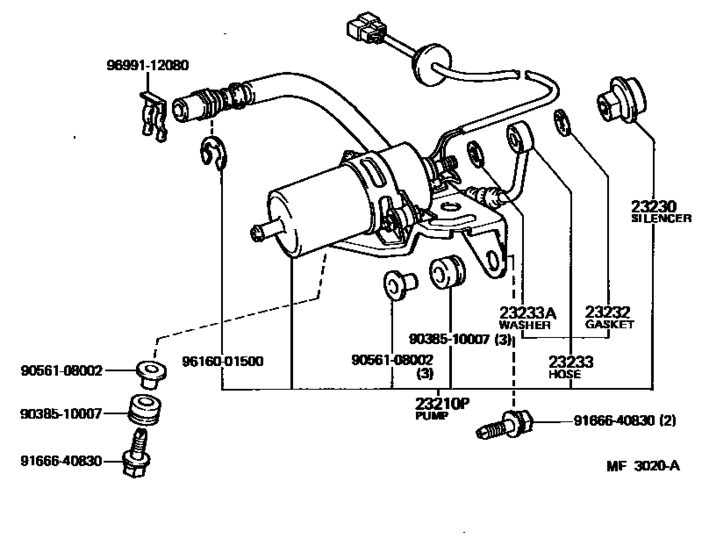

Fuel Injection System ([09.1979 - 08.1982] (7909-8208)MEU,5M#,MTEU) Diagram Toyota CROWN/ MAJESTA
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- MS110
- grade
- SDX
- body
- SED
- ENGINE
- MEU
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1979
- To
- 08.1981
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23210P
|
23210P
23210-41080 Pump Assy, Fuel W/motor & BracketFUEL W/MOTOR & BRACKET [09.1979 - 08.1980] MEU,5MEU..MS110,112 |
23210-41080 |
US $679.95 |
||
|
23210P
|
23210P
23210-41081 Pump Assy, Fuel W/motor & BracketFUEL W/MOTOR & BRACKET [08.1980 - 11.1982] MEU,5M#,MTEU..MS110,112; 1GEU..GS110..HT,SED |
23210-41081 |
US $684.32 |
||
|
23230
|
23230
23230-26080
Silencer Assy
[09.1979 - 05.1983] 1GE#..GS11#; MEU,5M#,MTEU..MS110,112 |
23230-26080 |
— | ||
|
23232
|
23232
23232-26080 Gasket(For Fuel Pump Hose)[09.1979 - 04.1982] 1GEU..GS110; MEU,5M#,MTEU..MS110,112 |
23232-26080 |
US $3.20 |
||
| replacement | |||||
|
23232
|
23232
23232-41081 Gasket(For Fuel Pump Hose)[09.1979 - 04.1982] 1GEU..GS110; MEU,5M#,MTEU..MS110,112 |
23232-41081 |
from US $1.40 |
||
|
23233
|
23233
90999-99076 Hose, Fuel PumpFUEL PUMP [09.1979 - 08.1980] MEU,5MEU..MS110,112 |
90999-99076 |
US $78.62 |
||
| replacement | |||||
|
23233
|
23233
90999-99105 Hose, Fuel Pump[09.1979 - 08.1980] MEU,5MEU..MS110,112 |
90999-99105 |
US $85.90 |
||
|
23233
|
23233
90999-99081 Hose, Fuel PumpFUEL PUMP [08.1980 - 08.1982] MEU,5M#,MTEU..MS110,112; 1GEU..GS110..HT,SED |
90999-99081 |
US $85.90 |
||
| replacement | |||||
|
23233
|
23233
90999-99110
Hose, Fuel Pump
[08.1980 - 08.1982] MEU,5M#,MTEU..MS110,112; 1GEU..GS110..HT,SED |
90999-99110 |
— | ||
|
23233A
|
23233A
90099-01012 Washer(For Fuel Pump Hose)[09.1979 - 04.1982] MEU,5M#,MTEU..MS110,112 |
90099-01012 |
US $1.75 |
||
| replacement | |||||
|
23233A
|
23233A
90099-01496
Washer(For Fuel Pump Hose)
[09.1979 - 04.1982] MEU,5M#,MTEU..MS110,112 |
90099-01496 |
— | ||
|
9038510007
|
9038510007
90385-10007 Bush(For Brake Traction Actuator Bracket) |
90385-10007 |
US $9.03 |
||
|
9056108002
|
9056108002
90561-08002 Spacer(For Brake Traction Actuator Bracket) |
90561-08002 |
US $4.89 |
||
|
9166640830
|
9166640830
91666-40830
New Genuine Part
|
91666-40830 |
— | ||
| replacement | |||||
|
9166640830
|
9166640830
91661-60830 Bolt |
91661-60830 |
from US $1.44 |
||
|
9616001500
|
9616001500
96160-01500 Ring, E(For Reverse Shift Arm) |
96160-01500 |
US $3.20 |
||
|
9699112080
|
9699112080
96991-12080 Clip |
96991-12080 |
US $1.92 |
||
