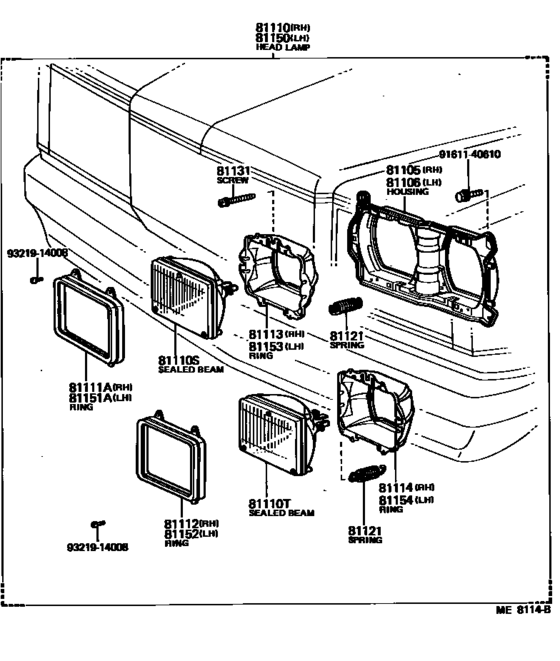

Headlamp ([09.1979 - 08.1981] (7909-8108)SED,WG..BTP,DLX,ROY,SAL,SDX) Diagram Toyota CROWN/ MAJESTA
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- MS110
- grade
- SDX
- body
- SED
- ENGINE
- MEU
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1979
- To
- 08.1981
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105
|
81105
81105-30430
Housing Sub-Assy, Headlamp, Rh
[09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
81105-30430 |
— | ||
|
81105
|
81105
81135-30431 Housing Sub-Assy, Headlamp, RhHEADLAMP, RH [08.1981 - 07.1983] GS110,LS110,111,MS110,112..(SED,WG)..(ROY,SAL,SDX) W/FOG LAMP |
81135-30431 |
US $291.20 |
||
|
81106
|
81106
81106-30540
Housing Sub-Assy, Headlamp, Lh
[09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
81106-30540 |
— | ||
|
81106
|
81106
81175-30541
Housing Sub-Assy, Headlamp, Lh
[08.1981 - 07.1983] GS110,LS110,111,MS110,112..(SED,WG)..(ROY,SAL,SDX) W/FOG LAMP |
81175-30541 |
— | ||
|
81110
|
81110
81110-39535 Headlamp Assy, RhRH [09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
81110-39535 |
US $273.73 |
||
|
81110
|
81110
81110-39536 Headlamp Assy, RhRH [08.1981 - 07.1983] GS110,LS110,111,MS110,112..(SED,WG)..(ROY,SAL,SDX) W/FOG LAMP |
81110-39536 |
US $486.30 |
||
|
81110S
|
81110S
90981-05002 Sealed Beam Unit, No.1[09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) １２Ｖ ５０Ｗ，＊ＷＢ,12V 50W |
90981-05002 |
US $68.87 |
||
| replacement | |||||
|
81110S
|
81110S
90981-05028
Sealed Beam Unit, No.1
[09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) １２Ｖ ５０Ｗ，＊ＷＢ,12V 50W |
90981-05028 |
— | ||
|
81110T
|
81110T
90981-05004 Sealed Beam Unit, No.2[09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) １２Ｖ ４０／６０Ｗ，＊ＷＢ,12V 40/60W |
90981-05004 |
US $68.87 |
||
| replacements | |||||
|
81110T
|
81110T
90981-05H14 New Genuine Part[09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) １２Ｖ ４０／６０Ｗ，＊ＷＢ,12V 40/60W |
90981-05H14 |
US $190.74 |
||
|
81110T
|
81110T
90981-05H15
New Genuine Part
[09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) １２Ｖ ４０／６０Ｗ，＊ＷＢ,12V 40/60W |
90981-05H15 |
— | ||
|
81111A
|
81111A
81111-20360 Ring, Sealed Beam Retaining[09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
81111-20360 |
US $23.10 |
||
|
81112
|
81112
81111-20360 Ring, Sealed Beam Retaining[09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
81111-20360 |
US $23.10 |
||
|
81113
|
81113
81113-30430
Ring, Sealed Beam Mounting, No.1 Rh
[09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
81113-30430 |
— | ||
| replacement | |||||
|
81113
|
81113
81113-22391
Ring, Sealed Beam Mounting, No.1 Rh
[09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
81113-22391 |
— | ||
|
81114
|
81114
81114-30430
Ring, Sealed Beam Mounting, No.2 Rh
[09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
81114-30430 |
— | ||
| replacement | |||||
|
81114
|
81114
81114-22391 Ring, Sealed Beam Mounting, No.2 Rh[09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
81114-22391 |
US $28.58 |
||
|
81121
|
81121
81121-14320 Spring, Headlamp Tension[09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
81121-14320 |
US $3.68 |
||
|
81131
|
81131
81131-20360 Screw, Headlamp Adjusting[09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
81131-20360 |
US $2.77 |
||
| replacement | |||||
|
81131
|
81131
81131-28050 Screw, Headlamp Adjusting[09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
81131-28050 |
US $3.47 |
||
|
81150
|
81150
81150-39535 Headlamp Assy, LhLH [09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
81150-39535 |
US $273.73 |
||
|
81150
|
81150
81150-39536 Headlamp Assy, LhLH [08.1981 - 07.1983] GS110,LS110,111,MS110,112..(SED,WG)..(ROY,SAL,SDX) W/FOG LAMP |
81150-39536 |
US $486.30 |
||
|
81151A
|
81151A
81111-20360 Ring, Sealed Beam Retaining[09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
81111-20360 |
US $23.10 |
||
|
81152
|
81152
81111-20360 Ring, Sealed Beam Retaining[09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
81111-20360 |
US $23.10 |
||
|
81153
|
81153
81153-30540
Ring, Sealed Beam Mounting, No.1 Lh
[09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
81153-30540 |
— | ||
| replacement | |||||
|
81153
|
81153
81153-22391
Ring, Sealed Beam Mounting, No.1 Lh
[09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
81153-22391 |
— | ||
|
81154
|
81154
81154-30540 Ring, Sealed Beam Mounting, No.2 Lh[09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
81154-30540 |
US $26.35 |
||
| replacement | |||||
|
81154
|
81154
81154-22391 Ring, Sealed Beam Mounting, No.2 Rh[09.1979 - 08.1981] LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX) |
81154-22391 |
US $28.58 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
9321914008
|
9321914008
93219-14008 Screw, W/washer(For Bearing Cover Setting) |
93219-14008 |
from US $2.08 |
||
