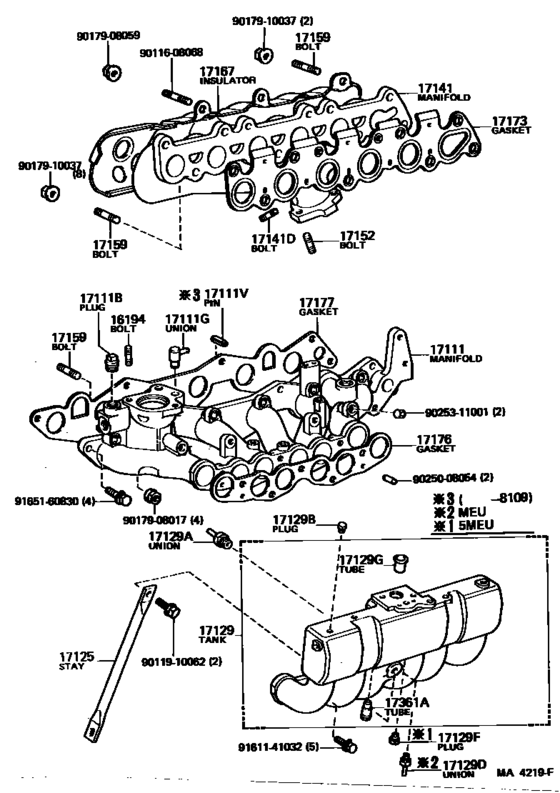

Manifold ([09.1979 - ] (7909- )MEU,5MEU) Diagram Toyota CROWN/ MAJESTA
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- MS110
- grade
- SDX
- body
- SED
- ENGINE
- MEU
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 09.1979
- To
- 08.1981
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16194
|
16194
90116-08025 Bolt, Stud(For Water Outlet Setting)[09.1979 - 07.1983] MEU,MJ,5MEU,MTEU,MU..MS11# L=34,S=16&11 |
90116-08025 |
US $1.89 |
||
|
17111
|
17111
17111-45080 Manifold, IntakeINTAKE [09.1979 - 07.1983] MEU,5MEU,MTEU..MS110,112 |
17111-45080 |
US $557.65 |
||
|
17111B
|
17111B
90345-53030 Cock Sub-Assy, Water Drain(For Cylinder Block)[09.1979 - 07.1983] MEU,5MEU,MTEU,MU..MS110,112..CBR,EFI,TBO |
90345-53030 |
US $8.91 |
||
|
17111G
|
17111G
90407-52005
Union(For Intake Manifold Water)
[09.1979 - 07.1983] MEU,5MEU,MTEU..MS110,112 |
90407-52005 |
— | ||
|
17111V
|
17111V
90254-08001 Pin, Straight(For Intake Manifold Setting)STRAIGHT(FOR INTAKE MANIFOLD SETTING) [09.1979 - 09.1981] MEU,MJ,5MEU,MTEU,MU..MS11# |
90254-08001 |
US $2.04 |
||
|
17125
|
17125
17125-41020 Stay, Surge Tank, No.1SURGE TANK, NO.1 [09.1979 - 07.1982] MEU,5MEU,MTEU..MS110,112 |
17125-41020 |
US $21.69 |
||
| replacement | |||||
|
17125
|
17125
17125-41021 Stay, Surge Tank, No.1[09.1979 - 07.1982] MEU,5MEU,MTEU..MS110,112 |
17125-41021 |
US $23 |
||
|
17129
|
17129
17109-41050 Tank, Intake Air SurgeINTAKE AIR SURGE [09.1979 - 07.1983] MEU,5MEU,MTEU..MS110,112 |
17109-41050 |
US $1,278.37 |
||
|
17129A
|
17129A
90404-53029 Union, No.1NO.1 [09.1979 - 07.1983] MEU,5MEU..MS110,112 |
90404-53029 |
US $9.61 |
||
|
17129B
|
17129B
90072-34107
Plug, W/head Taper Screw, No.1
[09.1979 - 07.1983] MEU,5MEU,MTEU..MS110,112 |
90072-34107 |
— | ||
| replacement | |||||
|
17129B
|
17129B
90345-51006 Plug, W/head Taper Screw, No.2[09.1979 - 07.1983] MEU,5MEU,MTEU..MS110,112 |
90345-51006 |
US $0.96 |
||
|
17129D
|
17129D
90404-51093 Union, Vacuum Hose[09.1979 - 08.1981] MEU..MS110 |
90404-51093 |
US $2.45 |
||
|
17129G
|
17129G
25619-45010 Tube, Egr Inlet[09.1979 - 07.1983] MEU,5MEU,MTEU..MS110,112 |
25619-45010 |
US $9.90 |
||
|
17141
|
17141
17141-41060
Manifold, Exhaust
[09.1979 - 01.1980] MEU,5MEU,MU..MS110,112..CBR,EFI |
17141-41060 |
— | ||
| replacement | |||||
|
17141
|
17141
17141-41070 Manifold, Exhaust[09.1979 - 01.1980] MEU,5MEU,MU..MS110,112..CBR,EFI |
17141-41070 |
US $313.04 |
||
|
17141
|
17141
17141-41070 Manifold, Exhaust[01.1980 - 07.1983] MEU,5MEU,MU..MS110,112..CBR,EFI |
17141-41070 |
US $313.04 |
||
|
17141D
|
17141D
90116-08045 Bolt, Stud(For Oxygen Sensor)[09.1979 - 08.1982] 1GEU..GS110 L=28,S=14&8; MEU,MJ,5MEU,MTEU,MU..MS11# L=28,S=14&8 |
90116-08045 |
US $3.35 |
||
| replacement | |||||
|
17141D
|
17141D
90116-08128 Bolt, Stud(For Manifold Stay)[09.1979 - 08.1982] 1GEU..GS110 L=28,S=14&8; MEU,MJ,5MEU,MTEU,MU..MS11# L=28,S=14&8 |
90116-08128 |
US $4.16 |
||
|
17152
|
17152
90116-10017 Bolt, Stud(For Manifold To Exhaust Pipe)[09.1979 - 02.1981] 5RU..RS110 L=41,S=21&14; MEU,MJ,5MEU,MTEU,MU..MS11# L=41,S=21&14 |
90116-10017 |
from US $2.92 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[02.1981 - 07.1983] 1GE#..GS11# L=46.5,S=14&20; MEU,MJ,5M#,MTEU,MU..MS11# L=46.5,S=14&20; 5RU..RS110 L=46.5,S=14&20 |
90116-10058 |
from US $2.44 |
||
|
17159
|
17159
90116-08020 Bolt, Stud(For Manifold To Cylinder Head)[09.1979 - 07.1983] MEU,MJ,5MEU,MTEU,MU..MS11# INTAKE,L=44,S=12&18 |
90116-08020 |
US $2.56 |
||
|
17159
|
17159
90116-10024
Bolt, Stud(For Manifold To Cylinder Head)
[09.1979 - 07.1983] MEU,MJ,5MEU,MTEU,MU..MS11# EXHAUST,LWR,L=53,S=15&29 |
90116-10024 |
— | ||
|
17159
|
17159
90116-10025 Bolt, Stud(For Manifold To Cylinder Head)[09.1979 - 07.1983] MEU,MJ,5MEU,MTEU,MU..MS11# EXHAUST,UPR,L=57,S=15&31 |
90116-10025 |
US $3.36 |
||
|
17167
|
17167
17107-41010 Insulator, Exhaust Manifold Heat, No.1[09.1979 - 07.1983] MEU,5MEU,MU..MS110,112..EFI,LPG |
17107-41010 |
US $133.95 |
||
| replacement | |||||
|
17167
|
17167
17107-41011 Insulator, Exhaust Manifold Heat, No.1[09.1979 - 07.1983] MEU,5MEU,MU..MS110,112..EFI,LPG |
17107-41011 |
US $132.50 |
||
|
17173
|
17173
17173-45030 Gasket, Exhaust Manifold To Head[09.1979 - 07.1983] MEU,MJ,5MEU,MU..MS11# |
17173-45030 |
US $57.95 |
||
| replacement | |||||
|
17173
|
17173
17173-43030
Gasket, Exhaust Manifold To Head
[09.1979 - 07.1983] MEU,MJ,5MEU,MU..MS11# |
17173-43030 |
— | ||
|
17176
|
17176
17176-41030
Gasket, Air Surge Tank To Intake Manifold
[09.1979 - 07.1983] MEU,5MEU,MTEU..MS110,112 |
17176-41030 |
— | ||
| replacement | |||||
|
17176
|
17176
17176-43030
Gasket, Air Surge Tank To Intake Manifold
[09.1979 - 07.1983] MEU,5MEU,MTEU..MS110,112 |
17176-43030 |
— | ||
|
17177
|
17177
17177-41030 Gasket, Intake Manifold To Head, No.1INTAKE MANIFOLD TO HEAD, NO.1 [09.1979 - 09.1981] MEU,5MEU,MTEU..MS110,112 |
17177-41030 |
US $16.31 |
||
| replacement | |||||
|
17177
|
17177
17177-43030 Gasket, Intake Manifold To Head, No.1INTAKE MANIFOLD TO HEAD, NO.1 [09.1979 - 09.1981] MEU,5MEU,MTEU..MS110,112 |
17177-43030 |
US $19.66 |
||
|
17361A
|
17361A
17361-41010
Union(For Positive Crankcase Ventilation)
[09.1979 - 07.1983] MEU,5MEU,MTEU..MS110,112 |
17361-41010 |
— | ||
|
9011608068
|
9011608068
90116-08068 New Genuine Part |
90116-08068 |
US $4.48 |
||
|
9011910062
|
9011910062
90119-10062
New Genuine Part
|
90119-10062 |
— | ||
| replacement | |||||
|
9011910062
|
9011910062
90119-10640 New Genuine Part |
90119-10640 |
US $4 |
||
|
9017908017
|
9017908017
90179-08017 NUT |
90179-08017 |
from US $0.80 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9017910037
|
9017910037
90179-10037 NUT |
90179-10037 |
from US $2.42 |
||
| replacement | |||||
|
9017910037
|
9017910037
90179-10128 NUT |
90179-10128 |
from US $1.54 |
||
|
9025008054
|
9025008054
90250-08054 Pin, Straight |
90250-08054 |
from US $1.92 |
||
|
9025311001
|
9025311001
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting) |
90253-11001 |
US $1.92 |
||
|
9161141032
|
9161141032
91611-41032
New Genuine Part
|
91611-41032 |
— | ||
| replacement | |||||
|
9161141032
|
9161141032
91612-61032 New Genuine Part |
91612-61032 |
US $1.75 |
||
|
9165160830
|
9165160830
91651-60830 Bolt (For Transfer Power Take-Off Cover) |
91651-60830 |
US $1.44 |
||
