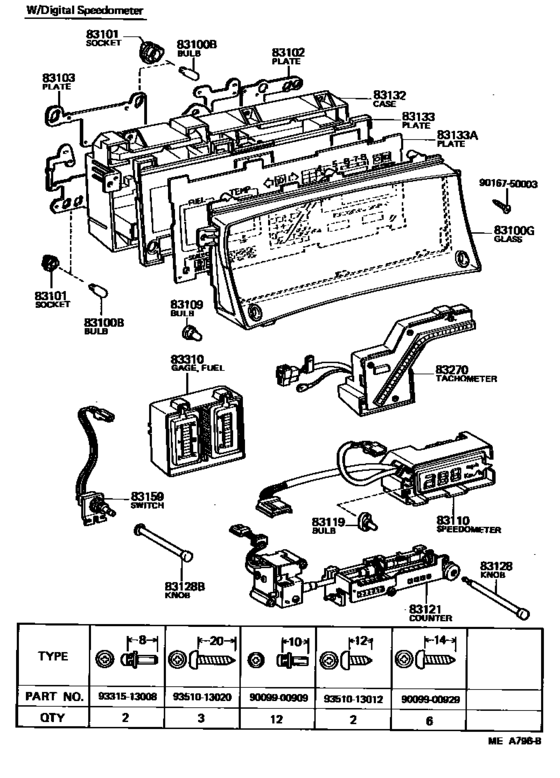

Meter ([08.1981 - ] (8108- )MS110..HT..SAL ; (8206-8207)GS110,MS1 10..SPE) Diagram Toyota CROWN/ MAJESTA
- Year
- 1980 - 1983
- Sales region
- Japan
- Frame
- MS110
- grade
- SAL
- body
- HT
- ENGINE
- MTEU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 10.1980
- To
- 07.1983
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Hard Top Type
- 2DH
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-24020 Bulb, Combination Meter, No.1[08.1981 - 07.1983] MS110..HT..SAL １２Ｖ ３．４Ｗ キャップ付き,12V 3.4W,CONTAINS GREEN CAP |
83109-24020 |
from US $6.12 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[09.1979 - 08.1981] LS11#,MS11#;RS110..BTP,DLX,STD １２Ｖ １．２Ｗ ソケット無し,12V 1.4W |
90981-11018 |
from US $2.24 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[08.1981 - 07.1983] GS11#,LS11#,MS11#,RS110 １２Ｖ ３．４Ｗ,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[08.1981 - 07.1983] GS11#,LS11#,MS11#,RS110 １２Ｖ ３．４Ｗ,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83133-30110
Glass, Combination Meter
[08.1981 - 07.1983] MS110..HT..SAL |
83133-30110 |
— | ||
|
83100G
|
83100G
83138-30860
Glass, Combination Meter
[09.1979 - 08.1981] MS110,112..HT;MS110..SED..TBO |
83138-30860 |
— | ||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[08.1981 - 07.1983] GS11#,LS11#,MS11#,RS110 12V 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[09.1979 - 08.1981] LS11#,MS11#;RS110..BTP,DLX,STD 12V 1.4W |
83101-14040 |
US $3.02 |
||
|
83102
|
83102
83247-30270
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1981 - 07.1983] MS110..HT..SAL |
83247-30270 |
— | ||
|
83102
|
83102
83247-30871
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1980 - 08.1981] MS110,112..HT;MS110..SED..TBO |
83247-30871 |
— | ||
|
83103
|
83103
83247-30290
Plate Sub-Assy, Combination Meter Circuit, No.2
[08.1981 - 07.1983] MS110..HT..SAL |
83247-30290 |
— | ||
|
83109
|
83109
90981-11030
Bulb, Position Indicator Lamp
[08.1981 - 07.1983] MS110..HT..SAL １４Ｖ １．１２Ｗ,12V 1.4W,CONTAINS GREEN CAP |
90981-11030 |
— | ||
|
83110
|
83110
83110-30640 Speedometer Assy[09.1979 - 08.1981] MS110,112..HT..(ROY,SAL,SPE) |
83110-30640 |
US $429.52 |
||
|
83110
|
83110
83110-30850
Speedometer Assy
[08.1981 - 07.1983] MS110..HT..SAL |
83110-30850 |
— | ||
|
83119
|
83119
83119-24010 Bulb, Combination Meter, No.1[08.1981 - 07.1983] MS110..HT..SAL １２Ｖ １．４Ｗ ソケット付き,SPEED WARNING |
83119-24010 |
US $1.22 |
||
|
83121
|
83121
83121-30410
Counter, Total
[08.1981 - 07.1983] MS110..HT..SAL |
83121-30410 |
— | ||
|
83128
|
83128
83128-10260
Knob, Trip Counter
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
83128-10260 |
— | ||
|
83128
|
83128
83128-30690
Knob, Trip Counter
[08.1981 - 07.1983] MS110..HT..SAL |
83128-30690 |
— | ||
|
83128B
|
83128B
83128-30670
Knob, Meter Switch
[08.1981 - 07.1983] MS110..HT..SAL |
83128-30670 |
— | ||
|
83132
|
83132
83132-30230
Case, Combination Meter
[08.1981 - 07.1983] MS110..HT..SAL |
83132-30230 |
— | ||
|
83132
|
83132
83132-30871
Case, Combination Meter
[08.1980 - 08.1981] MS110,112..HT;MS110..SED..TBO |
83132-30871 |
— | ||
|
83133
|
83133
83133-30090
Plate, Combination Meter, No.1
[08.1981 - 07.1983] MS110..HT..SAL |
83133-30090 |
— | ||
|
83133
|
83133
83133-30880
Plate, Combination Meter, No.1
[09.1979 - 08.1981] MS110,112..HT;MS110..SED..TBO |
83133-30880 |
— | ||
|
83133A
|
83133A
83131-30410
Plate, Combination Meter, No.2
[08.1981 - 07.1983] MS110..HT..SAL |
83131-30410 |
— | ||
|
83159
|
83159
83159-30010
Switch, Meter, No.1
[08.1981 - 07.1983] MS110..HT..SAL |
83159-30010 |
— | ||
|
83270
|
83270
83242-30030
Tachometer Assy, Engine
[10.1980 - 08.1981] MS110..TBO |
83242-30030 |
— | ||
|
83270
|
83270
83270-30060
Tachometer Assy, Engine
[08.1981 - 07.1983] MS110..HT..SAL |
83270-30060 |
— | ||
|
83310
|
83310
83243-30810 Gage Assy, Fuel ReceiverFUEL RECEIVER [09.1979 - 08.1981] MS110,112..HT;MS110..SED..TBO |
83243-30810 |
US $119.39 |
||
|
83310
|
83310
83310-30120 Gage Assy, Fuel Receiver[08.1981 - 11.1982] MS110..HT..SAL |
83310-30120 |
US $1,239.06 |
||
| replacement | |||||
|
83310
|
83310
83310-30121 Gage Assy, Fuel Receiver[08.1981 - 11.1982] MS110..HT..SAL |
83310-30121 |
US $713.44 |
||
|
83310
|
83310
83310-30121 Gage Assy, Fuel Receiver[11.1982 - 07.1983] MS110..HT..SAL; GS110,MS110..SPE W/DIGITAL SPEEDOMETER |
83310-30121 |
US $713.44 |
||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9016750003
|
9016750003
90167-50003 New Genuine Part |
90167-50003 |
US $1.75 |
||
| replacement | |||||
|
9016750003
|
9016750003
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
|
9331513008
|
9331513008
93315-13008 New Genuine Part |
93315-13008 |
US $1.31 |
||
|
9351013012
|
9351013012
93510-13012 Screw (For Winch Control Switch) |
93510-13012 |
US $1.60 |
||
|
9351013020
|
9351013020
93510-13020 New Genuine Part |
93510-13020 |
US $1.60 |
||
