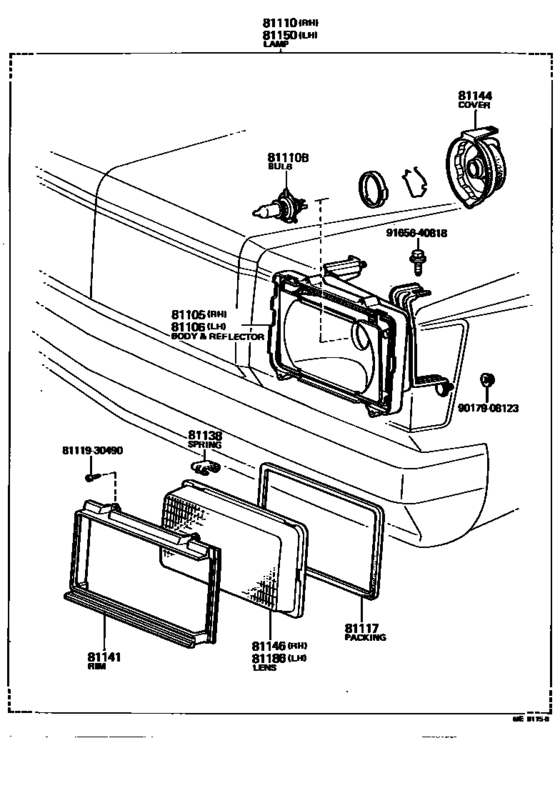

Headlamp ([09.1979 - 08.1981] (7909-8108)HT) Diagram Toyota CROWN/ MAJESTA
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- MS110
- grade
- SPE
- body
- HT
- ENGINE
- MEU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 09.1979
- To
- 08.1981
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Hard Top Type
- 2DH
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105
|
81105
81115-30490 Housing Sub-Assy, Headlamp, RhHEADLAMP, RH [09.1979 - 08.1981] LS110,MS110,112..HT |
81115-30490 |
US $292.66 |
||
|
81105
|
81105
81135-30481
Housing Sub-Assy, Headlamp, Rh
[08.1981 - 07.1983] GS110,LS110,111,MS110,112..HT |
81135-30481 |
— | ||
|
81106
|
81106
81116-30600 Housing Sub-Assy, Headlamp, LhHEADLAMP, LH [09.1979 - 08.1981] LS110,MS110,112..HT |
81116-30600 |
US $292.66 |
||
|
81106
|
81106
81175-30591
Housing Sub-Assy, Headlamp, Lh
[08.1981 - 07.1983] GS110,LS110,111,MS110,112..HT |
81175-30591 |
— | ||
|
81110
|
81110
81110-39585 Headlamp Assy, Rh[09.1979 - 08.1981] LS110,MS110,112..HT HALOGEN |
81110-39585 |
US $345.07 |
||
|
81110
|
81110
81110-39586 Headlamp Assy, RhRH [08.1981 - 07.1983] GS110,LS110,111,MS110,112..HT |
81110-39586 |
US $516.88 |
||
|
81110B
|
81110B
90981-13015
Bulb(For Headlamp, No.1)
[09.1979 - 08.1981] LS110,MS110,112..HT １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ,12V 60/55W,HALOGEN |
90981-13015 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [09.1979 - 08.1981] LS110,MS110,112..HT １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ,12V 60/55W,HALOGEN |
90981-13058 |
from US $30.40 |
||
|
81117
|
81117
81147-30481 Packing, Headlamp Housing[08.1981 - 07.1983] GS110,LS110,111,MS110,112..HT |
81147-30481 |
US $21.69 |
||
|
81117
|
81117
81147-30490
Packing, Headlamp Housing
[09.1979 - 08.1981] LS110,MS110,112..HT |
81147-30490 |
— | ||
|
81138
|
81138
81138-20550 Spring, Headlamp[07.1980 - 08.1981] LS110,MS110,112..HT |
81138-20550 |
US $3.20 |
||
|
81138
|
81138
81138-30490 Spring, Headlamp[09.1979 - 07.1980] LS110,MS110,112..HT |
81138-30490 |
US $3.64 |
||
| replacement | |||||
|
81138
|
81138
81138-20550 Spring, Headlamp[09.1979 - 07.1980] LS110,MS110,112..HT |
81138-20550 |
US $3.20 |
||
|
81141
|
81141
81141-30490 Ring, Headlamp OrnamentalHEADLAMP ORNAMENTAL [09.1979 - 08.1981] LS110,MS110,112..HT RH |
81141-30490 |
US $99.01 |
||
|
81141
|
81141
81181-30600 Ring, Headlamp OrnamentalHEADLAMP ORNAMENTAL [09.1979 - 08.1981] LS110,MS110,112..HT LH |
81181-30600 |
US $99.01 |
||
|
81144
|
81144
81139-30490
Cover, Sealed Beam Unit
[09.1979 - 08.1981] LS110,MS110,112..HT |
81139-30490 |
— | ||
|
81146
|
81146
81146-30481 Lens, Headlamp, Rh[08.1981 - 07.1983] GS110,LS110,111,MS110,112..HT |
81146-30481 |
US $104.83 |
||
|
81146
|
81146
81146-30490 Lens, Headlamp, Rh[09.1979 - 08.1981] LS110,MS110,112..HT |
81146-30490 |
US $85.90 |
||
|
81150
|
81150
81150-39585 Headlamp Assy, Lh[09.1979 - 08.1981] LS110,MS110,112..HT HALOGEN |
81150-39585 |
US $345.07 |
||
|
81150
|
81150
81150-39586 Headlamp Assy, LhLH [08.1981 - 07.1983] GS110,LS110,111,MS110,112..HT |
81150-39586 |
US $516.88 |
||
|
81186
|
81186
81186-30591 Lens, Headlamp, Lh[08.1981 - 07.1983] GS110,LS110,111,MS110,112..HT |
81186-30591 |
US $104.83 |
||
|
81186
|
81186
81186-30600
Lens, Headlamp, Lh
[09.1979 - 08.1981] LS110,MS110,112..HT |
81186-30600 |
— | ||
|
8111930490
|
8111930490
81119-30490 Screw, Headlamp |
81119-30490 |
US $2.33 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.88 |
||
|
9165640818
|
9165640818
91656-40818
Clamp Or Clip, Hose(For Radiator Outlet No.1)
|
91656-40818 |
— | ||
| replacement | |||||
|
9165640818
|
9165640818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
