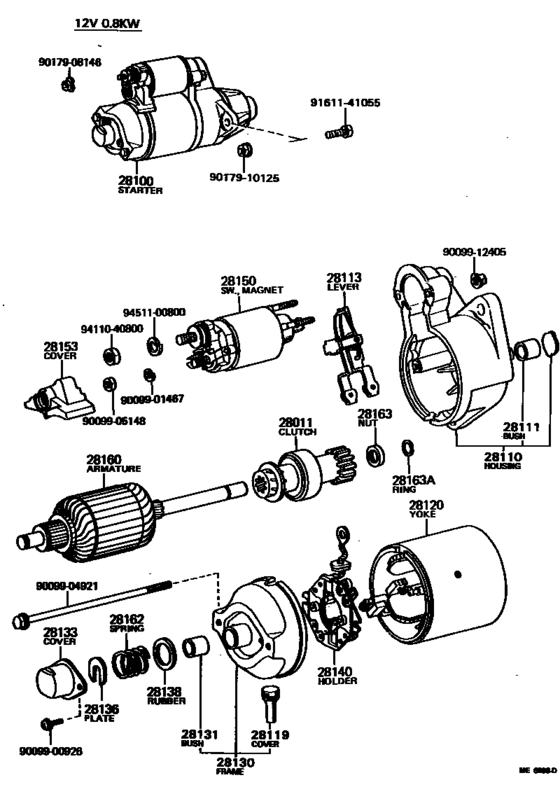

Starter ([09.1979 - ] (7909- )MEU,MJ,MTEU,MU..CBR,EFI,TBO) Diagram Toyota CROWN/ MAJESTA
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- MS110
- grade
- SPE
- body
- HT
- ENGINE
- MEU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 09.1979
- To
- 08.1981
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Hard Top Type
- 2DH
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-15010 Clutch Sub-Assy, Starter[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
28011-15010 |
US $69.01 |
||
|
28011
|
28011
28011-41020
Clutch Sub-Assy, Starter
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28011-41020 |
— | ||
|
28100
|
28100
28100-41050 Starter Assy[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO １２Ｖ ０．８ＫＷ,12V 0.8KW |
28100-41050 |
US $1,078.90 |
||
|
28100
|
28100
28100-42021 Starter Assy[09.1979 - 08.1981] MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
28100-42021 |
US $1,080.35 |
||
| replacement | |||||
|
28100
|
28100
28100-42070 Starter Assy[09.1979 - 08.1981] MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
28100-42070 |
US $1,303.12 |
||
|
28110
|
28110
28110-41021
Housing Assy, Starter Drive
[09.1979 - 08.1981] MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
28110-41021 |
— | ||
|
28110
|
28110
28110-41050
Housing Assy, Starter Drive
[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
28110-41050 |
— | ||
|
28111
|
28111
28111-51011
Bush(For Starter Housing)
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28111-51011 |
— | ||
|
28113
|
28113
28113-15011 Lever, Starter Pinion Drive[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
28113-15011 |
US $16.45 |
||
|
28113
|
28113
28113-41011
Lever, Starter Pinion Drive
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28113-41011 |
— | ||
|
28119
|
28119
28199-77090
Cover, Starter End Frame
[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
28199-77090 |
— | ||
|
28120
|
28120
28120-15010
Yoke Assy, Starter
[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
28120-15010 |
— | ||
|
28120
|
28120
28120-42020
Yoke Assy, Starter
[09.1979 - 08.1981] MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
28120-42020 |
— | ||
|
28130
|
28130
28130-15010 Frame Assy, Starter Commutator End[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
28130-15010 |
US $34.07 |
||
|
28130
|
28130
28130-41020
Frame Assy, Starter Commutator End
[09.1979 - 08.1981] MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
28130-41020 |
— | ||
|
28131
|
28131
28131-20010
Bush, Commutator End Frame
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW,STD |
28131-20010 |
— | ||
|
28131
|
28131
90099-10039
Bush, Commutator End Frame
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW,U/S 0.3 |
90099-10039 |
— | ||
|
28131
|
28131
90099-10040
Bush, Commutator End Frame
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW,U/S 0.5 |
90099-10040 |
— | ||
|
28131
|
28131
90099-10134
Bearing, Starter Flange
[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
90099-10134 |
— | ||
|
28133
|
28133
28132-15010
Cover, Starter Bearing(For Drive Housing)
[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
28132-15010 |
— | ||
| replacement | |||||
|
28133
|
28133
28132-15011
Cover, Bearing(For End Frame)
[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
28132-15011 |
— | ||
|
28133
|
28133
28132-40010
Cover, Bearing(For End Frame)
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28132-40010 |
— | ||
|
28136
|
28136
28136-15010
Plate, Starter Lock
[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
28136-15010 |
— | ||
|
28136
|
28136
28136-40010
Plate, Starter Lock
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28136-40010 |
— | ||
|
28138
|
28138
28138-15010
Rubber(For Starter Bearing Cover)
[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
28138-15010 |
— | ||
|
28138
|
28138
28138-40010
Rubber(For Starter Bearing Cover)
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28138-40010 |
— | ||
| replacement | |||||
|
28138
|
28138
28138-26030
Rubber(For Starter Bearing Cover)
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28138-26030 |
— | ||
|
28140
|
28140
28140-15010
Holder Assy, Starter Brush
[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
28140-15010 |
— | ||
|
28140
|
28140
28140-41020
Holder Assy, Starter Brush
[09.1979 - 08.1981] MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
28140-41020 |
— | ||
|
28150
|
28150
28150-15011 Switch Assy, Magnet StarterMAGNET STARTER [09.1979 - 08.1980] MEU,MJ,MU..MS110,117..CBR,EFI 12V 0.8KW |
28150-15011 |
US $138.32 |
||
| replacement | |||||
|
28150
|
28150
28150-37011
Switch Assy, Magnet Starter
[09.1979 - 08.1980] MEU,MJ,MU..MS110,117..CBR,EFI 12V 0.8KW |
28150-37011 |
— | ||
|
28150
|
28150
28150-15012
Switch Assy, Magnet Starter
[08.1980 - 07.1983] MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
28150-15012 |
— | ||
| replacement | |||||
|
28150
|
28150
28150-37011
Switch Assy, Magnet Starter
[08.1980 - 07.1983] MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
28150-37011 |
— | ||
|
28150
|
28150
28150-60040 Switch Assy, Magnet StarterMAGNET STARTER [09.1979 - 08.1981] MEU,5MEU,MU..MS110,112..EFI,LPG 12V 1.0KW |
28150-60040 |
US $123.76 |
||
|
28153
|
28153
28159-15010
Cover, Magnet Switch
[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
28159-15010 |
— | ||
|
28160
|
28160
28160-15010 Armature Assy, Starter[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
28160-15010 |
US $230.05 |
||
|
28160
|
28160
28160-41020
Armature Assy, Starter
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28160-41020 |
— | ||
|
28162
|
28162
28162-15010
Spring, Starter Brake
[09.1979 - 07.1983] MEU,MJ,MTEU,MU..MS110,117..CBR,EFI,TBO 12V 0.8KW |
28162-15010 |
— | ||
|
28162
|
28162
28162-41022
Spring, Starter Brake
[09.1979 - 08.1981] MEU,5MEU,5RU,MU..MS110,112,RS110..EFI,LPG 12V 1.0KW |
28162-41022 |
— | ||
|
28163
|
28163
28163-40011
Nut Or Collar, Pinion Stop, Starter
[09.1979 - 08.1981] MEU,MJ,5MEU,5RU,MTEU,MU..MS11#,RS110 12V 0.8KW,1.0KW |
28163-40011 |
— | ||
|
28163A
|
28163A
90099-07047
Ring, Snap(For Starter Pinion Stop Nut)
[09.1979 - 08.1981] MEU,MJ,5MEU,5RU,MTEU,MU..MS11#,RS110 12V 0.8KW,1.0KW |
90099-07047 |
— | ||
|
9009900926
|
9009900926
90099-00926
New Genuine Part
|
90099-00926 |
— | ||
|
9009901467
|
9009901467
90099-01467
New Genuine Part
|
90099-01467 |
— | ||
|
9009904921
|
9009904921
90099-04921
New Genuine Part
|
90099-04921 |
— | ||
|
9009905148
|
9009905148
90099-05148
New Genuine Part
|
90099-05148 |
— | ||
|
9009912405
|
9009912405
90099-12405
New Genuine Part
|
90099-12405 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9017910125
|
9017910125
90179-10125
Nut(For Counter Gear Shaft)
|
90179-10125 |
— | ||
| replacement | |||||
|
9017910125
|
9017910125
90179-10132 Nut |
90179-10132 |
from US $0.98 |
||
|
9161141055
|
9161141055
91611-41055
Bolt(For Clutch Release Cylinder Setting)
|
91611-41055 |
— | ||
| replacement | |||||
|
9161141055
|
9161141055
91611-61055 Bolt(For Clutch Release Cylinder Setting) |
91611-61055 |
US $2.72 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.90 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
