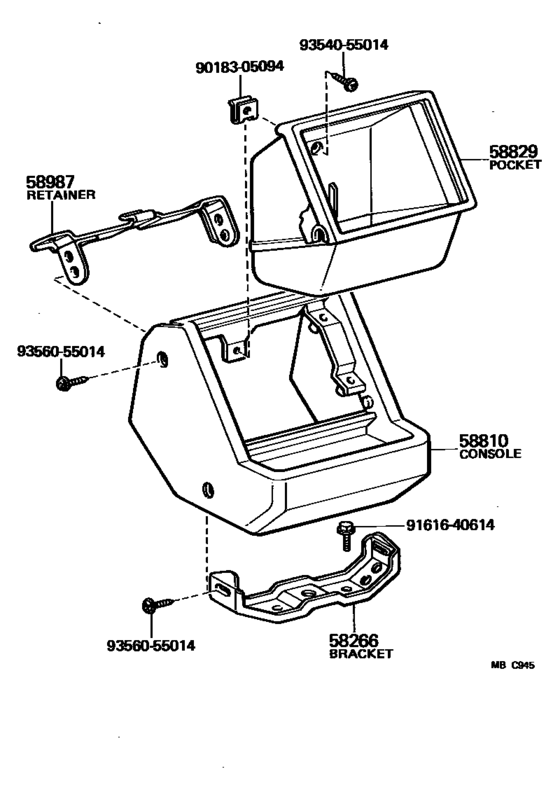

Console Box & Bracket ([08.1981 - ] (8108- )GS110,MS112..4HC..ROY,SAL) Diagram Toyota CROWN/ MAJESTA
- Year
- 1979 - 1983
- Sales region
- Japan
- Frame
- MS112
- grade
- ROY
- body
- SED
- ENGINE
- 5MEU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 09.1979
- To
- 07.1983
- Gear Shift Type
- 4HC
- No.of Doors
- 4D
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58266
|
58266
58995-30030
Bracket, Console Box Support, Front
[09.1979 - 08.1981] MS110,112..(4H,4HC)..(ROY,SAL) |
58995-30030 |
— | ||
|
58266
|
58266
58995-30040
Bracket, Console Box Support, Front
[08.1981 - 07.1983] MS112..4HC; GS110..4HC..SAL *EXT |
58995-30040 |
— | ||
|
58810
|
58810
58811-30180-02
Console Assy
[09.1979 - 08.1981] MS110,112..(4H,4HC)..(ROY,SAL) DARK WINE,RED/MAROON,TRIM3# |
58811-30180-02 |
— | ||
|
58810
|
58810
58811-30180-04
Console Assy
[09.1979 - 08.1981] MS110,112..(4H,4HC)..(ROY,SAL) BLUE,BLUE,TRIM8# |
58811-30180-04 |
— | ||
|
58810
|
58810
58811-30180-05
Console Assy
[09.1979 - 08.1981] MS110,112..(4H,4HC)..(ROY,SAL) GREIGE,BEIGE,TRIM4# |
58811-30180-05 |
— | ||
|
58810
|
58810
58811-30200-03
Console Assy
[08.1981 - 07.1983] MS112..4HC GRAY,GRAY,TRIM1#; GS110..4HC..SAL *EXT,GRAY,GRAY,TRIM1# |
58811-30200-03 |
— | ||
|
58810
|
58810
58811-30200-04
Console Assy
[08.1981 - 07.1983] MS112..4HC BLUE,BLUE,TRIM8#; GS110..4HC..SAL *EXT,BLUE,BLUE,TRIM8# |
58811-30200-04 |
— | ||
|
58810
|
58810
58811-30200-05
Console Assy
[08.1981 - 07.1983] MS112..4HC BEIGE,BEIGE,TRIM4#; GS110..4HC..SAL *EXT,BEIGE,BEIGE,TRIM4# |
58811-30200-05 |
— | ||
|
58829
|
58829
58806-30040-03 Pocket, Console BoxCONSOLE BOX [08.1981 - 07.1983] GS110,LS110,111,MS110,112..ROY,SAL CASSETTE TAPE,GRAY,GRAY,TRIM1# |
58806-30040-03 |
US $75.71 |
||
|
58829
|
58829
58806-30040-04 Pocket, Console BoxCONSOLE BOX [08.1981 - 07.1983] GS110,LS110,111,MS110,112..ROY,SAL CASSETTE TAPE,BLUE,BLUE,TRIM8# |
58806-30040-04 |
US $75.71 |
||
|
58829
|
58829
58806-30040-05 Pocket, Console BoxCONSOLE BOX [08.1981 - 07.1983] GS110,LS110,111,MS110,112..ROY,SAL CASSETTE TAPE,BEIGE,BEIGE,TRIM4# |
58806-30040-05 |
US $75.71 |
||
|
58829
|
58829
58825-30040
Pocket, Console Box
[09.1979 - 08.1981] MS117..SDX; MS112..SED..4HC..ROY;LS110,MS110..(3FC,4F,4FC,5F)..(CTE,DLX,SDX,SPE) |
58825-30040 |
— | ||
|
58987
|
58987
58902-30010
Retainer, Console Box Stereo, No.1
[08.1981 - 07.1983] GS110..4HC..SAL; MS112..4HC |
58902-30010 |
— | ||
|
58987
|
58987
58991-30030
Retainer, Console Box Stereo, No.1
[09.1979 - 08.1981] MS110,112..(4H,4HC)..(ROY,SAL) |
58991-30030 |
— | ||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9161640614
|
9161640614
91616-40614
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91616-40614 |
— | ||
| replacement | |||||
|
9161640614
|
9161640614
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9354055014
|
9354055014
93540-55014 New Genuine Part |
93540-55014 |
US $0.96 |
||
|
9356055014
|
9356055014
93560-55014 SCREW |
93560-55014 |
from US $0.70 |
||
