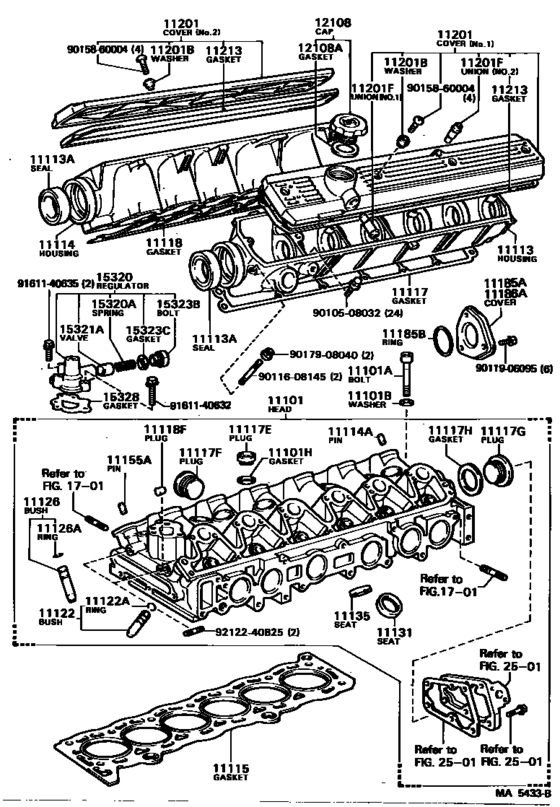

Cylinder Head ([08.1981 - ] (8108- )5MGEU) Diagram Toyota CROWN/ MAJESTA
- Year
- 1981 - 1983
- Sales region
- Japan
- Frame
- MS112
- grade
- ROY
- body
- HT
- ENGINE
- 5MGEU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1981
- To
- 07.1983
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Hard Top Type
- 2DH
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-49295 Head Sub-Assy, Cylinder[08.1981 - 12.1981] 5MGEU..MS112 |
11101-49295 |
US $2,824.64 |
||
| replacements | |||||
|
11101
|
11101
25685-43020
Gasket, Egr Cooler, No.1
[08.1981 - 12.1981] 5MGEU..MS112 |
25685-43020 |
— | ||
|
11101
|
11101
90501-45017
Spring, Compression(For Inner)
[08.1981 - 12.1981] 5MGEU..MS112 |
90501-45017 |
— | ||
|
11101
|
11101
90501-45020
Spring, Compression(For Inner)
[08.1981 - 12.1981] 5MGEU..MS112 |
90501-45020 |
— | ||
|
11101
|
11101
11101-43040
Head Sub-Assy, Cylinder
[08.1981 - 12.1981] 5MGEU..MS112 |
11101-43040 |
— | ||
|
11101
|
11101
25681-43010 Cooler, Egr, No.1EGR, NO.1 [08.1981 - 12.1981] 5MGEU..MS112 |
25681-43010 |
US $42.81 |
||
|
11101
|
11101
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)[08.1981 - 12.1981] 5MGEU..MS112 |
91511-J0820 |
from US $1.07 |
||
|
11101
|
11101
11101-49296
Head Sub-Assy, Cylinder
[12.1981 - 07.1983] 5MGEU..MS112 |
11101-49296 |
— | ||
| replacements | |||||
|
11101
|
11101
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)[12.1981 - 07.1983] 5MGEU..MS112 |
91511-J0820 |
from US $1.07 |
||
|
11101
|
11101
25685-43020
Gasket, Egr Cooler, No.1
[12.1981 - 07.1983] 5MGEU..MS112 |
25685-43020 |
— | ||
|
11101
|
11101
11101-43040
Head Sub-Assy, Cylinder
[12.1981 - 07.1983] 5MGEU..MS112 |
11101-43040 |
— | ||
|
11101
|
11101
25681-43010 Cooler, Egr, No.1EGR, NO.1 [12.1981 - 07.1983] 5MGEU..MS112 |
25681-43010 |
US $42.81 |
||
|
11101A
|
11101A
90110-12001 Bolt(For Cylinder Head Set)[08.1981 - 07.1983] 5MGEU..MS112 *12-1.25PX96-22 |
90110-12001 |
US $5.77 |
||
|
11101B
|
11101B
90201-12027 Washer, Plate(For Cylinder Head Set)[08.1981 - 07.1983] 5MGEU..MS112 |
90201-12027 |
US $3.32 |
||
|
11101H
|
11101H
90430-20004 Gasket(For Cylinder Head Screw Plug)[08.1981 - 07.1983] 5MGEU..MS112 |
90430-20004 |
from US $0.99 |
||
|
11113
|
11113
11113-43010 Housing, Camshaft, No.1[08.1981 - 07.1983] 5MGEU..MS112 |
11113-43010 |
US $449.90 |
||
|
11113A
|
11113A
90311-38013 Seal, Oil(For Camshaft Housing)[08.1981 - 07.1983] 5MGEU..MS112 |
90311-38013 |
from US $6.56 |
||
|
11114
|
11114
11114-43010 Housing, Camshaft, No.2[08.1981 - 07.1983] 5MGEU..MS112 |
11114-43010 |
US $449.90 |
||
|
11114A
|
11114A
90250-08054 Pin, Straight[08.1981 - 07.1983] 5MGEU..MS112 長さ＝２３，外径＝８ |
90250-08054 |
from US $1.03 |
||
|
11115
|
11115
11115-43030
Gasket, Cylinder Head
[08.1981 - 07.1983] 5MGEU..MS112 |
11115-43030 |
— | ||
|
11117
|
11117
11117-43010
Gasket, Camshaft Housing, No.1
[08.1981 - 07.1983] 5MGEU..MS112 |
11117-43010 |
— | ||
| replacement | |||||
|
11117
|
11117
11117-43030
Gasket, Camshaft Housing, No.1
[08.1981 - 07.1983] 5MGEU..MS112 |
11117-43030 |
— | ||
|
11117E
|
11117E
90341-20002 Plug, W/head Taper Screw, No.1[08.1981 - 07.1983] 5MGEU..MS112 |
90341-20002 |
from US $2.88 |
||
|
11117F
|
11117F
90341-32031 Plug, W/head Straight Screw, No.2[08.1981 - 07.1983] 5MGEU..MS112 |
90341-32031 |
US $7.16 |
||
|
11117G
|
11117G
90341-36001 Plug, W/head Taper Screw, No.1[08.1981 - 07.1983] 5MGEU..MS112 |
90341-36001 |
US $5.60 |
||
|
11117H
|
11117H
90430-36001 Gasket(For Water Hole)[09.1979 - 07.1983] MEU,MJ,5M#,MTEU,MU..MS11# |
90430-36001 |
US $1.40 |
||
|
11118
|
11118
11118-43010
Gasket, Camshaft Housing, No.2
[08.1981 - 07.1983] 5MGEU..MS112 |
11118-43010 |
— | ||
| replacement | |||||
|
11118
|
11118
11118-43030
Gasket, Camshaft Housing, No.2
[08.1981 - 07.1983] 5MGEU..MS112 |
11118-43030 |
— | ||
|
11118F
|
11118F
90072-33614 Plug, W/head Taper Screw, No.1[08.1981 - 07.1983] 5MGEU..MS112 |
90072-33614 |
US $3.93 |
||
|
11122
|
11122
11122-43010
Bush, Intake Valve Guide
[08.1981 - 07.1983] 5MGEU..MS112 ＳＴＤ,STD |
11122-43010 |
— | ||
|
11122
|
11122
11123-43010
Bush, Intake Valve Guide
[08.1981 - 07.1983] 5MGEU..MS112 Ｏ／Ｓ ０．０５,O/S 0.05 |
11123-43010 |
— | ||
|
11122A
|
11122A
90520-12049 Ring, Shaft Snap (For Valve Guide Bush)[09.1979 - 07.1983] MEU,MJ,5M#,MTEU,MU..MS11# |
90520-12049 |
from US $2.72 |
||
|
11126
|
11126
11122-43010
Bush, Intake Valve Guide
[08.1981 - 07.1983] 5MGEU..MS112 ＳＴＤ,STD |
11122-43010 |
— | ||
|
11126
|
11126
11123-43010
Bush, Intake Valve Guide
[08.1981 - 07.1983] 5MGEU..MS112 Ｏ／Ｓ ０．０５,O/S 0.05 |
11123-43010 |
— | ||
|
11126A
|
11126A
90520-12049 Ring, Shaft Snap (For Valve Guide Bush)[09.1979 - 07.1983] MEU,MJ,5M#,MTEU,MU..MS11# |
90520-12049 |
from US $2.72 |
||
|
11131
|
11131
11131-43020
Seat, Intake Valve
[08.1981 - 07.1983] 5MGEU..MS112 ＳＴＤ,STD |
11131-43020 |
— | ||
|
11131
|
11131
11132-43020
Seat, Intake Valve
[08.1981 - 07.1983] 5MGEU..MS112 Ｏ／Ｓ ０．０３,O/S 0.03 |
11132-43020 |
— | ||
|
11135
|
11135
11135-43010
Seat, Exhaust Valve
[08.1981 - 07.1983] 5MGEU..MS112 ＳＴＤ,STD |
11135-43010 |
— | ||
|
11135
|
11135
11136-43010
Seat, Exhaust Valve
[08.1981 - 07.1983] 5MGEU..MS112 Ｏ／Ｓ ０．０３,O/S 0.03 |
11136-43010 |
— | ||
|
11155A
|
11155A
90253-10003 Pin, Ring W/head[08.1981 - 07.1983] 5MGEU..MS112 |
90253-10003 |
US $3.49 |
||
|
11185A
|
11185A
11185-43010 Cover, Camshaft Rear Housing, No.1[08.1981 - 07.1983] 5MGEU..MS112 |
11185-43010 |
US $20.82 |
||
|
11185B
|
11185B
90301-56001 Ring, O[08.1981 - 07.1983] 5MGEU..MS112 |
90301-56001 |
US $8.39 |
||
|
11186A
|
11186A
11185-43010 Cover, Camshaft Rear Housing, No.1[08.1981 - 07.1983] 5MGEU..MS112 |
11185-43010 |
US $20.82 |
||
|
11201
|
11201
11201-49195
Cover Sub-Assy, Cylinder Head
[08.1981 - 07.1983] 5MGEU..MS112 NO.1 |
11201-49195 |
— | ||
|
11201
|
11201
11212-49015 Cover Sub-Assy, Cylinder Head[08.1981 - 07.1983] 5MGEU..MS112 NO.2 |
11212-49015 |
US $209.66 |
||
|
11201B
|
11201B
90210-06003 Washer, Seal(For Cylinder Head Cover)[08.1981 - 07.1983] 5MGEU..MS112 |
90210-06003 |
from US $1.19 |
||
|
11201F
|
11201F
17361-41010
Union(For Positive Crankcase Ventilation)
[08.1981 - 07.1983] 5MGEU..MS112 NO.1 |
17361-41010 |
— | ||
|
11201F
|
11201F
90406-14002
Union(For Positive Crankcase Ventilation)
[08.1981 - 07.1983] 5MGEU..MS112 NO.2 |
90406-14002 |
— | ||
|
11213
|
11213
11213-43020 Gasket, Cylinder Head Cover[08.1981 - 07.1983] 5MGEU..MS112 |
11213-43020 |
US $24.78 |
||
|
12108
|
12108
12180-13010 Cap Sub-Assy, Oil Filler[09.1979 - 06.1983] 1GE#..GS11#; L,2LT#..LS11#; MEU,MJ,5M#,MTEU,MU..MS11# |
12180-13010 |
US $16.11 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[09.1979 - 07.1983] 1GE#..GS11#; L,2LT#..LS11#; MEU,MJ,5M#,MTEU,MU..MS11# |
90430-37140 |
from US $1.25 |
||
|
15320
|
15320
15320-43010
Regulator Assy, Oil Pressure
[08.1981 - 07.1983] 5MGEU..MS112 |
15320-43010 |
— | ||
| replacement | |||||
|
15320
|
15320
15320-43020
Regulator Assy, Oil Pressure
[08.1981 - 07.1983] 5MGEU..MS112 |
15320-43020 |
— | ||
|
15320A
|
15320A
15132-43010 Spring, Oil Pressure Regulator ValveOIL PRESSURE REGULATOR VALVE [08.1981 - 07.1983] 5MGEU..MS112 |
15132-43010 |
US $3.49 |
||
|
15321A
|
15321A
15131-38030 Valve, Oil Pump Relief[08.1981 - 07.1983] 5MGEU..MS112 |
15131-38030 |
US $6.99 |
||
|
15323B
|
15323B
15133-20010 Plug, Oil Pump Relief Valve[08.1981 - 07.1983] 5MGEU..MS112 |
15133-20010 |
US $6.56 |
||
|
15323C
|
15323C
15134-20010 Gasket, Oil Pump Relief Valve[08.1981 - 07.1983] 5MGEU..MS112 |
15134-20010 |
from US $2.03 |
||
|
15328
|
15328
15328-43010
Gasket, Oil Pressure Regulator
[08.1981 - 07.1983] 5MGEU..MS112 |
15328-43010 |
— | ||
| replacement | |||||
|
15328
|
15328
15328-43020
Gasket, Oil Pressure Regulator
[08.1981 - 07.1983] 5MGEU..MS112 |
15328-43020 |
— | ||
|
9010508032
|
9010508032
90105-08032
New Genuine Part
|
90105-08032 |
— | ||
|
9011608145
|
9011608145
90116-08145 Bolt, Stud(For Manifold To Venturi) |
90116-08145 |
US $3.93 |
||
|
9011906095
|
9011906095
90119-06095
New Genuine Part
|
90119-06095 |
— | ||
|
9015860004
|
9015860004
90158-60004
New Genuine Part
|
90158-60004 |
— | ||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9161140632
|
9161140632
91611-40632 New Genuine Part |
91611-40632 |
US $1.75 |
||
| replacement | |||||
|
9161140632
|
9161140632
91611-60632 New Genuine Part |
91611-60632 |
US $1.75 |
||
|
9161140635
|
9161140635
91611-40635
New Genuine Part
|
91611-40635 |
— | ||
| replacement | |||||
|
9161140635
|
9161140635
91611-60635 New Genuine Part |
91611-60635 |
US $2.08 |
||
|
9212240825
|
9212240825
92122-40825 New Genuine Part |
92122-40825 |
US $2.04 |
||
