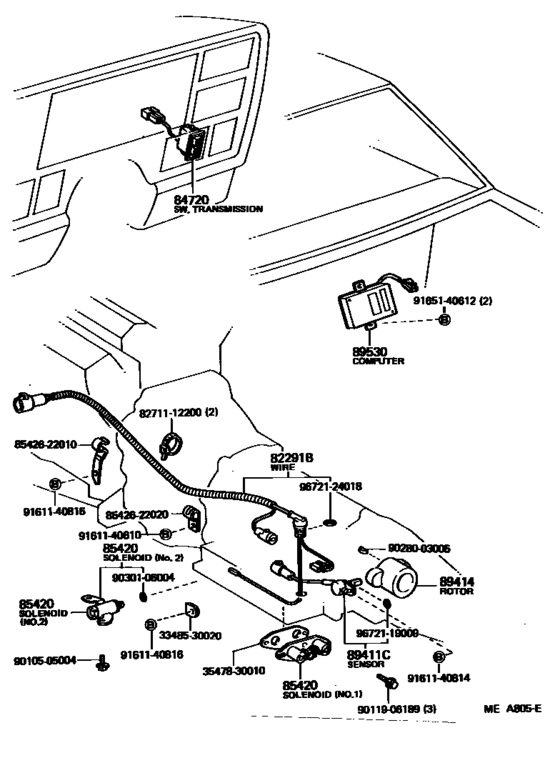

Electronic Controlled Transmission ([08.1981 - ] (8108- )TWC) Diagram Toyota CROWN/ MAJESTA
- Year
- 1981 - 1983
- Sales region
- Japan
- Frame
- MS112
- grade
- ROY
- body
- HT
- ENGINE
- 5MGEU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1981
- To
- 07.1983
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Hard Top Type
- 2DH
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82291B
|
82291B
82291-30150
Wire, To Solenoid (For Transmission)
[08.1981 - 07.1983] MS112..TWC |
82291-30150 |
— | ||
|
84720
|
84720
84720-30040 Switch Assy, Pattern SelectPATTERN SELECT [08.1981 - 07.1983] MS112..TWC TOKAIRIKA |
84720-30040 |
US $285.38 |
||
|
85420
|
85420
85420-30050
Solenoid Assy, Transmission
[08.1981 - 07.1983] MS112..TWC NO.1 |
85420-30050 |
— | ||
|
85420
|
85420
85420-30070 Solenoid Assy, Transmission[08.1981 - 07.1983] MS112..TWC NO.2 |
85420-30070 |
from US $178.21 |
||
|
89411C
|
89411C
89411-30080 Sensor, Speed[08.1981 - 03.1983] MS112..TWC |
89411-30080 |
US $82.99 |
||
| replacement | |||||
|
89411C
|
89411C
89411-30082
Sensor, Speed
[08.1981 - 03.1983] MS112..TWC |
89411-30082 |
— | ||
|
89411C
|
89411C
89411-30081
Sensor, Speed
[03.1983 - 07.1983] MS112..TWC |
89411-30081 |
— | ||
| replacement | |||||
|
89411C
|
89411C
89411-30082
Sensor, Speed
[03.1983 - 07.1983] MS112..TWC |
89411-30082 |
— | ||
|
89414
|
89414
89414-30010
Rotor, Sensor
[08.1981 - 07.1983] MS112..TWC |
89414-30010 |
— | ||
| replacement | |||||
|
89414
|
89414
89414-30011
Rotor, Sensor
[08.1981 - 07.1983] MS112..TWC |
89414-30011 |
— | ||
|
89530
|
89530
89530-30050 Computer Assy, Transmission Control[08.1981 - 11.1981] MS112..TWC |
89530-30050 |
US $701.79 |
||
| replacement | |||||
|
89530
|
89530
89530-30052 Computer Assy, Transmission Control[08.1981 - 11.1981] MS112..TWC |
89530-30052 |
US $637.73 |
||
|
89530
|
89530
89530-30051 Computer Assy, Transmission Control[11.1981 - 12.1982] MS112..TWC |
89530-30051 |
US $701.79 |
||
| replacement | |||||
|
89530
|
89530
89530-30052 Computer Assy, Transmission Control[11.1981 - 12.1982] MS112..TWC |
89530-30052 |
US $637.73 |
||
|
89530
|
89530
89530-30052 Computer Assy, Transmission Control[12.1982 - 07.1983] MS112..TWC |
89530-30052 |
US $637.73 |
||
|
3348530020
|
3348530020
33485-30020 Plate, Speedometer Sleeve Lock (For Atm) |
33485-30020 |
US $2.56 |
||
|
3547830010
|
3547830010
35478-30010
Gasket, Accumulator Cover
|
35478-30010 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
8542622010
|
8542622010
85426-22010 Clamp, Over Drive Solenoid |
85426-22010 |
US $10.05 |
||
|
8542622020
|
8542622020
85426-22020 Clamp(For Clutch Tube) |
85426-22020 |
US $9.32 |
||
|
9010505004
|
9010505004
90105-05004 New Genuine Part |
90105-05004 |
US $1.02 |
||
|
9011906189
|
9011906189
90119-06189 New Genuine Part |
90119-06189 |
US $1.60 |
||
|
9028003005
|
9028003005
90280-03005 Key, Oil Pump Drive Shaft |
90280-03005 |
US $1.05 |
||
|
9030106004
|
9030106004
90301-06004 Ring, O No.3(For Transmission Solenoid) |
90301-06004 |
from US $1.92 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9672119009
|
9672119009
96721-19009 Ring, O(For Oil Level Gage) |
96721-19009 |
from US $1.56 |
||
|
9672124018
|
9672124018
96721-24018 Ring, O |
96721-24018 |
from US $4.08 |
||
