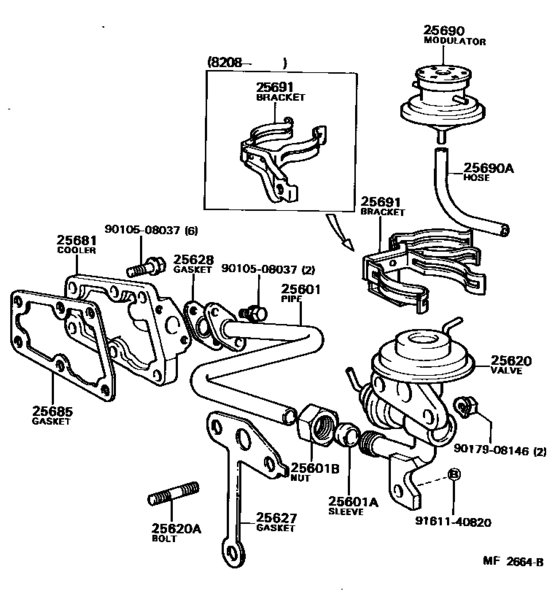

Exhaust Gas Recirculation System ([08.1981 - ] (8108- )5MGEU) Diagram Toyota CROWN/ MAJESTA
- Year
- 1981 - 1983
- Sales region
- Japan
- Frame
- MS112
- grade
- ROY
- body
- HT
- ENGINE
- 5MGEU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1981
- To
- 07.1983
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Hard Top Type
- 2DH
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25601-43020 Pipe Sub-Assy, Egr, No.1EGR, NO.1 [08.1981 - 07.1983] 5MGEU..MS112 |
25601-43020 |
US $90.27 |
||
|
25601A
|
25601A
90410-16001
Sleeve, Ball, Egr Pipe, No.1
[08.1981 - 07.1983] 5MGEU..MS112 |
90410-16001 |
— | ||
|
25601B
|
25601B
90402-22005
Nut, Union, Egr Pipe, No.1
[08.1981 - 07.1983] 5MGEU..MS112 |
90402-22005 |
— | ||
|
25620
|
25620
25620-43060
Valve Assy, Egr
[08.1981 - 07.1983] 5MGEU..MS112 |
25620-43060 |
— | ||
|
25620A
|
25620A
90116-08025 Bolt, Stud(For Water Outlet Setting)[09.1979 - 07.1983] MEU,MJ,5M#,MTEU,MU..MS11# L=34,S=16&11 |
90116-08025 |
US $1.89 |
||
|
25627
|
25627
25627-43010
Gasket, Egr Valve
[08.1981 - 07.1983] 5MGEU..MS112 |
25627-43010 |
— | ||
| replacement | |||||
|
25627
|
25627
25627-43090
Gasket, Egr Valve
[08.1981 - 07.1983] 5MGEU..MS112 |
25627-43090 |
— | ||
|
25628
|
25628
25628-43030
Gasket, Egr Inlet
[08.1981 - 07.1983] 5MGEU..MS112 |
25628-43030 |
— | ||
| replacement | |||||
|
25628
|
25628
25628-43060
Gasket, Egr Inlet
[08.1981 - 07.1983] 5MGEU..MS112 |
25628-43060 |
— | ||
|
25681
|
25681
25681-43010 Cooler, Egr, No.1EGR, NO.1 [08.1981 - 07.1983] 5MGEU..MS112 |
25681-43010 |
US $42.81 |
||
|
25685
|
25685
25685-43010
Gasket, Egr Cooler, No.1
[08.1981 - 07.1983] 5MGEU..MS112 |
25685-43010 |
— | ||
| replacement | |||||
|
25685
|
25685
25685-43020
Gasket, Egr Cooler, No.1
[08.1981 - 07.1983] 5MGEU..MS112 |
25685-43020 |
— | ||
|
25690
|
25690
25690-43010
Modulator Assy, Egr Vacuum
[08.1981 - 08.1982] 5MGEU..MS112 |
25690-43010 |
— | ||
|
25690
|
25690
25690-43011
Modulator Assy, Egr Vacuum
[08.1982 - 07.1983] 5MGEU..MS112 |
25690-43011 |
— | ||
|
25690A
|
25690A
90445-11057 Hose(For Egr Vacuum Modulator)[08.1981 - 07.1983] 5MGEU..MS112 |
90445-11057 |
US $4.37 |
||
|
25691
|
25691
25691-43020
Bracket, Egr Vacuum Modulator
[08.1981 - 08.1982] 5MGEU..MS112 |
25691-43020 |
— | ||
|
25691
|
25691
25691-43021
Bracket, Egr Vacuum Modulator
[08.1982 - 07.1983] 5MGEU..MS112 |
25691-43021 |
— | ||
|
9010508037
|
9010508037
90105-08037
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
90105-08037 |
— | ||
| replacement | |||||
|
9010508037
|
9010508037
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.07 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
