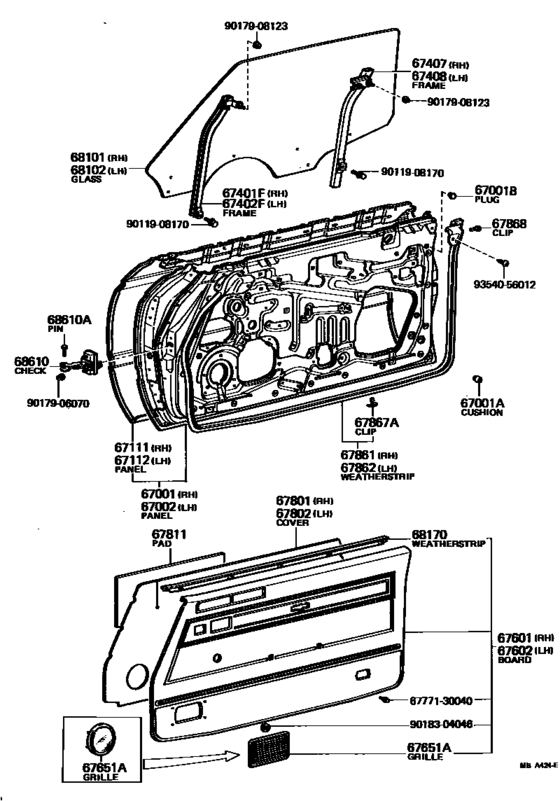

Front Door Panel & Glass ([09.1979 - ] (7909- )2D) Diagram Toyota CROWN/ MAJESTA
- Year
- 1981 - 1983
- Sales region
- Japan
- Frame
- MS112
- grade
- ROY
- body
- HT
- ENGINE
- 5MGEU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1981
- To
- 07.1983
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Hard Top Type
- 2DH
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-30280 Panel Sub-Assy, Front Door, Rh[09.1979 - 08.1981] MS110,112..2D |
67001-30280 |
US $1,046.86 |
||
| replacements | |||||
|
67001
|
67001
67001-30281
Panel Sub-Assy, Front Door, Rh
[09.1979 - 08.1981] MS110,112..2D |
67001-30281 |
— | ||
|
67001
|
67001
82711-24040 Wire, Fuse To Fuse(for Combustion Heater)[09.1979 - 08.1981] MS110,112..2D |
82711-24040 |
US $8.74 |
||
|
67001
|
67001
67001-30281
Panel Sub-Assy, Front Door, Rh
[08.1981 - 07.1983] GS110,MS110,112..2D |
67001-30281 |
— | ||
|
67001A
|
67001A
90541-09005
Cushion(For Luggage Compartment Door Panel)
[09.1979 - 07.1983] GS110,MS110,112..2D |
90541-09005 |
— | ||
| replacement | |||||
|
67001A
|
67001A
90541-09058
Cushion(For Luggage Compartment Door Panel)
[09.1979 - 07.1983] GS110,MS110,112..2D |
90541-09058 |
— | ||
|
67001B
|
67001B
90950-01006 Plug, Hole(For Front Fender)[09.1979 - 07.1983] GS110,MS110,112..2D OD=14 |
90950-01006 |
from US $2.16 |
||
|
67002
|
67002
67002-30370
Panel Sub-Assy, Front Door, Lh
[09.1979 - 07.1983] GS110,MS110,112..2D |
67002-30370 |
— | ||
|
67111
|
67111
67111-30170
Panel, Front Door, Outer Rh
[09.1979 - 07.1983] GS110,MS110,112..2D |
67111-30170 |
— | ||
|
67112
|
67112
67112-30230
Panel, Front Door, Outer Lh
[09.1979 - 07.1983] GS110,MS110,112..2D |
67112-30230 |
— | ||
|
67401F
|
67401F
67401-30130
Frame Sub-Assy, Front Door, Front Lower Rh
[09.1979 - 07.1983] GS110,MS110,112..2D |
67401-30130 |
— | ||
|
67402F
|
67402F
67402-30130
Frame Sub-Assy, Front Door, Front Lower Lh
[09.1979 - 07.1983] GS110,MS110,112..2D |
67402-30130 |
— | ||
|
67407
|
67407
67403-30060 Frame Sub-Assy, Front Door, Rear Lower RhFRONT DOOR, REAR LOWER RH [09.1979 - 07.1983] GS110,MS110,112..2D |
67403-30060 |
US $37.27 |
||
|
67408
|
67408
67404-30060
Frame Sub-Assy, Front Door, Rear Lower Lh
[09.1979 - 07.1983] GS110,MS110,112..2D |
67404-30060 |
— | ||
|
67601
|
67601
67610-3A330-03
Board Sub-Assy, Front Door Trim, Rh
[08.1981 - 07.1983] GS110,MS110,112..2D GRAY,GRAY,TRIM1# |
67610-3A330-03 |
— | ||
|
67601
|
67601
67610-3A330-04
Board Sub-Assy, Front Door Trim, Rh
[08.1981 - 07.1983] GS110,MS110,112..2D BLUE,BLUE,TRIM8# |
67610-3A330-04 |
— | ||
|
67601
|
67601
67610-3A330-05
Board Sub-Assy, Front Door Trim, Rh
[08.1981 - 07.1983] GS110,MS110,112..2D BEIGE,BEIGE,TRIM4# |
67610-3A330-05 |
— | ||
|
67601
|
67601
67650-30700-02
Board Sub-Assy, Front Door Trim, Rh
[09.1979 - 08.1981] MS110,112..(ROY,SAL)..2D DARK WINE,RED/MAROON,TRIM3# |
67650-30700-02 |
— | ||
|
67601
|
67601
67650-30700-04
Board Sub-Assy, Front Door Trim, Rh
[09.1979 - 08.1981] MS110,112..(ROY,SAL)..2D BLUE,BLUE,TRIM8# |
67650-30700-04 |
— | ||
|
67601
|
67601
67650-30700-05
Board Sub-Assy, Front Door Trim, Rh
[09.1979 - 08.1981] MS110,112..(ROY,SAL)..2D GREIGE,BEIGE,TRIM4# |
67650-30700-05 |
— | ||
|
67602
|
67602
67620-3A150-02
Board Sub-Assy, Front Door Trim, Lh
[09.1979 - 08.1981] MS110,112..(ROY,SAL)..2D DARK WINE,RED/MAROON,TRIM3# |
67620-3A150-02 |
— | ||
|
67602
|
67602
67620-3A150-04
Board Sub-Assy, Front Door Trim, Lh
[09.1979 - 08.1981] MS110,112..(ROY,SAL)..2D BLUE,BLUE,TRIM8# |
67620-3A150-04 |
— | ||
|
67602
|
67602
67620-3A150-05
Board Sub-Assy, Front Door Trim, Lh
[09.1979 - 08.1981] MS110,112..(ROY,SAL)..2D GREIGE,BEIGE,TRIM4# |
67620-3A150-05 |
— | ||
|
67602
|
67602
67620-3A151-03
Board Sub-Assy, Front Door Trim, Lh
[08.1981 - 07.1983] GS110,MS110,112..2D GRAY,GRAY,TRIM1# |
67620-3A151-03 |
— | ||
|
67602
|
67602
67620-3A151-04
Board Sub-Assy, Front Door Trim, Lh
[08.1981 - 07.1983] GS110,MS110,112..2D BLUE,BLUE,TRIM8# |
67620-3A151-04 |
— | ||
|
67602
|
67602
67620-3A151-05
Board Sub-Assy, Front Door Trim, Lh
[08.1981 - 07.1983] GS110,MS110,112..2D BEIGE,BEIGE,TRIM4# |
67620-3A151-05 |
— | ||
|
67651A
|
67651A
67609-30010-03 Grille, Speaker DoorSPEAKER DOOR [08.1981 - 07.1983] GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE GRAY,GRAY,TRIM1# |
67609-30010-03 |
US $173.26 |
||
|
67651A
|
67651A
67609-30010-04 Grille, Speaker DoorSPEAKER DOOR [08.1981 - 07.1983] GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE BLUE,BLUE,TRIM8# |
67609-30010-04 |
US $173.26 |
||
|
67651A
|
67651A
67609-30010-05 Grille, Speaker DoorSPEAKER DOOR [08.1981 - 07.1983] GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE BEIGE,BEIGE,TRIM4# |
67609-30010-05 |
US $173.26 |
||
|
67651A
|
67651A
67651-30010-02
Grille, Speaker Door
[09.1979 - 08.1981] LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SPE DARK WINE,RED/MAROON,TRIM3# |
67651-30010-02 |
— | ||
|
67651A
|
67651A
67651-30010-04
Grille, Speaker Door
[09.1979 - 08.1981] LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SPE BLUE,BLUE,TRIM8# |
67651-30010-04 |
— | ||
|
67651A
|
67651A
67651-30010-05
Grille, Speaker Door
[09.1979 - 08.1981] LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SPE GREIGE,BEIGE,TRIM4# |
67651-30010-05 |
— | ||
|
67801
|
67801
67831-30170
Cover Sub-Assy, Front Door Hole, No.1 Rh
[09.1979 - 08.1981] MS110,112..2D |
67831-30170 |
— | ||
|
67801
|
67801
67831-30171
Cover Sub-Assy, Front Door Hole, No.1 Rh
[08.1981 - 07.1983] GS110,MS110,112..2D |
67831-30171 |
— | ||
|
67802
|
67802
67832-30070
Cover Sub-Assy, Front Door Hole, No.1 Lh
[09.1979 - 08.1981] MS110,112..2D |
67832-30070 |
— | ||
|
67802
|
67802
67832-30071
Cover Sub-Assy, Front Door Hole, No.1 Lh
[08.1981 - 07.1983] GS110,MS110,112..2D |
67832-30071 |
— | ||
|
67811
|
67811
67811-20050 Pad, Front Door SilencerFRONT DOOR SILENCER [09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
67811-20050 |
US $18.93 |
||
| replacement | |||||
|
67811
|
67811
67811-12010 Pad, Front Door Silencer[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
67811-12010 |
US $18.54 |
||
|
67861
|
67861
67861-30130
Weatherstrip, Front Door, Rh
[09.1979 - 07.1983] GS110,MS110,112..2D |
67861-30130 |
— | ||
|
67862
|
67862
67862-30130 Weatherstrip, Front Door, LhFRONT DOOR, LH [09.1979 - 07.1983] GS110,MS110,112..2D |
67862-30130 |
US $116.48 |
||
|
67867A
|
67867A
67868-30040 Retainer, Roof Side Rail, Rh[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
67868-30040 |
US $1.76 |
||
|
67868
|
67868
67869-30020 Clip, Headlamp Door Filler[09.1979 - 07.1983] LS110,111,MS110,112..HT |
67869-30020 |
US $3.52 |
||
|
68101
|
68101
68111-30270
Glass Sub-Assy, Front Door, Rh
[09.1979 - 07.1983] GS110,MS110,112..2D *TT,T=4.0 |
68111-30270 |
— | ||
|
68101
|
68101
68111-30290
Glass Sub-Assy, Front Door, Rh
[08.1981 - 07.1983] GS110,MS110,112..2D *TT,T=4.0,BRONZE |
68111-30290 |
— | ||
|
68102
|
68102
68112-30200
Glass Sub-Assy, Front Door, Lh
[09.1979 - 07.1983] GS110,MS110,112..2D *TT,T=4.0 |
68112-30200 |
— | ||
|
68102
|
68102
68112-30220
Glass Sub-Assy, Front Door, Lh
[08.1981 - 07.1983] GS110,MS110,112..2D *TT,T=4.0,BRONZE |
68112-30220 |
— | ||
|
68170
|
68170
68170-30150
Weatherstrip Assy, Front Door Glass, Inner
[09.1979 - 07.1983] GS110,MS110,112..2D RH |
68170-30150 |
— | ||
|
68170
|
68170
68220-30090
Weatherstrip Assy, Front Door Glass, Inner
[09.1979 - 07.1983] GS110,MS110,112..2D LH |
68220-30090 |
— | ||
|
68610
|
68610
68610-30010 Check Assy, Front DoorFRONT DOOR [09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
68610-30010 |
US $57.08 |
||
|
68610A
|
68610A
68617-30010
Pin(For Front Door Check)
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
68617-30010 |
— | ||
| replacement | |||||
|
68610A
|
68610A
68617-90K00 Pin(For Front Door Check)[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110 |
68617-90K00 |
US $3.20 |
||
|
6777130040
|
6777130040
67771-30040 Retainer(For Front Door Trim Board) |
67771-30040 |
US $3.14 |
||
|
9011908170
|
9011908170
90119-08170 New Genuine Part |
90119-08170 |
US $2.04 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $2.13 |
||
|
9018304046
|
9018304046
90183-04046 New Genuine Part |
90183-04046 |
US $1.92 |
||
|
9354056012
|
9354056012
93540-56012 New Genuine Part |
93540-56012 |
US $0.44 |
||
