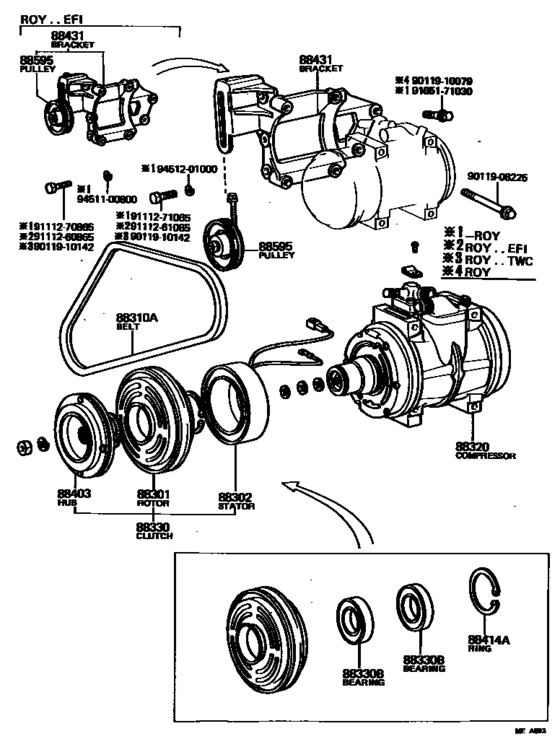

Heating & Air Conditioning - Compressor ([09.1979 - ] (7909- )MS11#) Diagram Toyota CROWN/ MAJESTA
- Year
- 1981 - 1983
- Sales region
- Japan
- Frame
- MS112
- grade
- ROY
- body
- HT
- ENGINE
- 5MGEU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1981
- To
- 07.1983
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Hard Top Type
- 2DH
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-22030
Rotor Sub-Assy, Magnet Clutch
[08.1981 - 07.1983] MS11#..(4F,4FC,4H,4HC)..(CBR,EFI,TWC) |
88412-22030 |
— | ||
|
88302
|
88302
88411-30390
Stator Sub-Assy, Magnet Clutch
[08.1981 - 07.1983] MS11#..(4F,4FC,4H,4HC)..(CBR,EFI,TWC) |
88411-30390 |
— | ||
|
88310A
|
88310A
99322-00940 Belt, V (Cooler Compressor To Crankshaft Pulley), No.1[09.1979 - 08.1981] MS11#..CBR,EFI,TBO |
99322-00940 |
US $19.22 |
||
|
88310A
|
88310A
99322-00950
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[08.1981 - 07.1983] MS110,112..TBO,TWC |
99322-00950 |
— | ||
| replacement | |||||
|
88310A
|
88310A
99322-50950
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[08.1981 - 07.1983] MS110,112..TBO,TWC |
99322-50950 |
— | ||
|
88320
|
88320
88320-30270
Compressor Assy, Cooler
[09.1979 - 07.1983] MS11# |
88320-30270 |
— | ||
|
88330
|
88330
88410-30390 Clutch Assy, MagnetMAGNET [08.1981 - 07.1983] MS11#..(4F,4FC,4H,4HC)..(CBR,EFI,TWC) |
88410-30390 |
US $500.86 |
||
|
88330B
|
88330B
90099-10133
Bearing, Ball(For Clutch Pully)
[08.1981 - 07.1983] GS11#; MS11#..(4F,4FC,4H,4HC)..(CBR,EFI,TWC) |
90099-10133 |
— | ||
|
88403
|
88403
88403-14030
Hub Sub-Assy, Magnet Clutch
[08.1981 - 07.1983] MS11#..(4F,4FC,4H,4HC)..(CBR,EFI,TWC) |
88403-14030 |
— | ||
| replacement | |||||
|
88403
|
88403
88403-12030
Hub Sub-Assy, Magnet Clutch
[08.1981 - 07.1983] MS11#..(4F,4FC,4H,4HC)..(CBR,EFI,TWC) |
88403-12030 |
— | ||
|
88431
|
88431
88431-30440
Bracket, Compressor Mounting, No.1
[08.1981 - 07.1983] MS112..TWC |
88431-30440 |
— | ||
|
88595
|
88595
88440-30250 Pulley Assy, Idle[09.1979 - 07.1983] GS11#,MS11#; RS110..BTP,DLX,TAX W/PS |
88440-30250 |
US $78.62 |
||
| replacement | |||||
|
88595
|
88595
88440-28050
Pulley, Cooler Compressor Idle
[09.1979 - 07.1983] GS11#,MS11#; RS110..BTP,DLX,TAX W/PS |
88440-28050 |
— | ||
|
9011908225
|
9011908225
90119-08225
BOLT
|
90119-08225 |
— | ||
|
9011910079
|
9011910079
90119-10079 Bolt(For Front Suspension Lower Arm No.1 Rh) |
90119-10079 |
US $3.84 |
||
|
9011910142
|
9011910142
90119-10142
New Genuine Part
|
90119-10142 |
— | ||
|
9111260865
|
9111260865
91112-60865
New Genuine Part
|
91112-60865 |
— | ||
|
9111261065
|
9111261065
91112-61065 Shaft, Brake Pedal |
91112-61065 |
US $3.06 |
||
|
9111270865
|
9111270865
91112-70865
New Genuine Part
|
91112-70865 |
— | ||
|
9111271065
|
9111271065
91112-71065
New Genuine Part
|
91112-71065 |
— | ||
|
9165171030
|
9165171030
91651-71030
New Genuine Part
|
91651-71030 |
— | ||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
