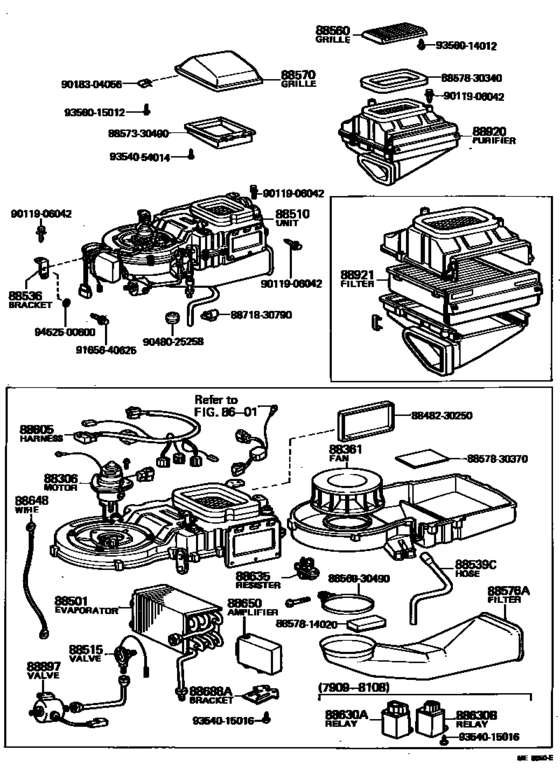

Heating & Air Conditioning - Cooler Unit ([09.1979 - ] (7909- )HT..ROY) Diagram Toyota CROWN/ MAJESTA
- Year
- 1981 - 1983
- Sales region
- Japan
- Frame
- MS112
- grade
- ROY
- body
- HT
- ENGINE
- 5MGEU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1981
- To
- 07.1983
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Hard Top Type
- 2DH
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88306
|
88306
88550-30310 Motor Sub-Assy, Cooler Blower, No.1[09.1979 - 07.1983] GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TD E,TWC) RR COOLER |
88550-30310 |
US $272.27 |
||
| replacement | |||||
|
88306
|
88306
88550-91701 Motor Sub-Assy, Cooler Blower, No.1[09.1979 - 07.1983] GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TD E,TWC) RR COOLER |
88550-91701 |
US $272.27 |
||
|
88361
|
88361
88541-30270
Fan, Cooler Blower, No.1
[09.1979 - 07.1983] GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TD E,TWC) RR COOLER |
88541-30270 |
— | ||
|
88501
|
88501
88501-30540
Evaporator Sub-Assy, Cooler, No.1
[09.1979 - 07.1983] GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TD E,TWC) RR COOLER |
88501-30540 |
— | ||
|
88501
|
88501
88501-30550
Evaporator Sub-Assy, Cooler, No.1
[09.1979 - 07.1983] GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
88501-30550 |
— | ||
|
88510
|
88510
88510-30710
Unit Assy, Cooler
[09.1979 - 08.1981] MS112..HT..ROY RR |
88510-30710 |
— | ||
|
88510
|
88510
88510-30820
Unit Assy, Cooler
[08.1981 - 07.1983] MS112..HT RR |
88510-30820 |
— | ||
|
88510
|
88510
88510-30830
Unit Assy, Cooler
[08.1981 - 07.1983] MS112..TWC FR |
88510-30830 |
— | ||
|
88515
|
88515
88515-30310 Valve, Cooler Expansion[09.1979 - 07.1983] GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TD E,TWC) RR COOLER |
88515-30310 |
US $94.64 |
||
|
88515
|
88515
88515-30320 Valve, Cooler Expansion[09.1979 - 07.1983] GS11#,MS11#..CBR,EFI,TBO,TWC |
88515-30320 |
US $141.23 |
||
| replacement | |||||
|
88515
|
88515
88515-22071 Valve, Cooler Expansion[09.1979 - 07.1983] GS11#,MS11#..CBR,EFI,TBO,TWC |
88515-22071 |
US $133.95 |
||
|
88536
|
88536
88536-30660
Bracket, Cooling Unit, No.1
[09.1979 - 07.1983] GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TD E,TWC) RR COOLER |
88536-30660 |
— | ||
|
88539C
|
88539C
88539-30540
Hose, Cooler Unit Drain, No.2
[09.1979 - 07.1983] GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TD E,TWC) RR COOLER |
88539-30540 |
— | ||
|
88560
|
88560
88561-30300-02
Grille Assy, Cooler Air Inlet
[09.1979 - 08.1981] MS112..ROY DARK WINE,RED/MAROON,TRIM3# |
88561-30300-02 |
— | ||
|
88560
|
88560
88561-30300-03
Grille Assy, Cooler Air Inlet
[08.1981 - 07.1983] MS112 GRAY,GRAY,TRIM1# |
88561-30300-03 |
— | ||
|
88560
|
88560
88561-30300-04
Grille Assy, Cooler Air Inlet
[09.1979 - 07.1983] MS112..ROY BLUE,BLUE,TRIM8# |
88561-30300-04 |
— | ||
|
88560
|
88560
88561-30300-05
Grille Assy, Cooler Air Inlet
[09.1979 - 08.1981] MS112..ROY GREIGE,BEIGE,TRIM4# |
88561-30300-05 |
— | ||
|
88560
|
88560
88561-30300-15
Grille Assy, Cooler Air Inlet
[08.1981 - 07.1983] MS112 BEIGE,BEIGE,TRIM4# |
88561-30300-15 |
— | ||
|
88570
|
88570
88570-30620-02
Grille Sub-Assy, Cooler Air Outlet
[09.1979 - 08.1981] MS112..HT..ROY DARK WINE,RED/MAROON,TRIM3# |
88570-30620-02 |
— | ||
|
88570
|
88570
88570-30620-03
Grille Sub-Assy, Cooler Air Outlet
[08.1981 - 07.1983] MS112..HT GRAY,GRAY,TRIM1# |
88570-30620-03 |
— | ||
|
88570
|
88570
88570-30620-04
Grille Sub-Assy, Cooler Air Outlet
[09.1979 - 07.1983] MS112..HT..ROY BLUE,BLUE,TRIM8# |
88570-30620-04 |
— | ||
|
88570
|
88570
88570-30620-05
Grille Sub-Assy, Cooler Air Outlet
[09.1979 - 08.1981] MS112..HT..ROY GREIGE,BEIGE,TRIM4# |
88570-30620-05 |
— | ||
|
88570
|
88570
88570-30620-15
Grille Sub-Assy, Cooler Air Outlet
[08.1981 - 07.1983] MS112..HT BEIGE,BEIGE,TRIM4# |
88570-30620-15 |
— | ||
|
88576A
|
88576A
88576-30680
Guide, Cooler Air
[09.1979 - 07.1983] MS112..ROY |
88576-30680 |
— | ||
|
88605
|
88605
88608-30250
Harness Sub-Assy, Cooler Wiring, No.1
[09.1979 - 07.1983] GS110,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE) W/*AAC |
88608-30250 |
— | ||
|
88605
|
88605
88608-30260
Harness Sub-Assy, Cooler Wiring, No.1
[09.1979 - 08.1981] MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO) RR COOLER |
88608-30260 |
— | ||
|
88605
|
88605
88608-30330
Harness Sub-Assy, Cooler Wiring, No.1
[08.1981 - 07.1983] LS110..SAL,SPE RR COOLER; GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TD E,TWC) RR COOLER |
88608-30330 |
— | ||
|
88605
|
88605
88608-30370
Harness Sub-Assy, Cooler Wiring, No.1
[08.1981 - 07.1983] MS112 |
88608-30370 |
— | ||
|
88630A
|
88630A
88630-30360
Relay Assy, Cooler
[09.1979 - 08.1981] MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO) RR COOLER |
88630-30360 |
— | ||
|
88630A
|
88630A
90987-02004 Relay Assy, Starter[02.1981 - 07.1983] GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD W/AIR CONDITIONER |
90987-02004 |
from US $28.20 |
||
| replacement | |||||
|
88630A
|
88630A
909870200483 [02.1981 - 07.1983] GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD W/AIR CONDITIONER |
909870200483 |
US $53.75 |
||
|
88630B
|
88630B
88630-30370
Relay Assy, Cooler
[09.1979 - 08.1981] MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO) RR COOLER |
88630-30370 |
— | ||
|
88635
|
88635
87138-30290
Resistor, Blower
[09.1979 - 07.1983] GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TD E,TWC) RR COOLER |
87138-30290 |
— | ||
|
88648
|
88648
88648-30500
Wiring, Cooler, No.1
[07.1980 - 07.1983] GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TD E,TWC) RR COOLER |
88648-30500 |
— | ||
|
88650
|
88650
88650-30370
Amplifier Assy, Cooler Stabilizer
[09.1979 - 07.1983] GS110,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE) W/*AAC |
88650-30370 |
— | ||
|
88650
|
88650
88650-30410
Amplifier Assy, Cooler Stabilizer
[08.1981 - 07.1983] LS110..SAL,SPE RR COOLER; GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TD E,TWC) RR COOLER |
88650-30410 |
— | ||
|
88897
|
88897
88691-30440
Valve Assy, Cooler Magnet
[10.1981 - 07.1983] LS110..SAL,SPE L=80,RR COOLER; GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TD E,TWC) L=80,RR COOLER |
88691-30440 |
— | ||
|
88897
|
88897
88897-30570
Valve, Cooler Magnet
[09.1979 - 10.1981] GS110,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TWC) L=92.5,RR COOLER |
88897-30570 |
— | ||
|
88920
|
88920
88920-30041
Purifier Assy, Air
[07.1981 - 07.1983] GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TD E,TWC) |
88920-30041 |
— | ||
|
88921
|
88921
88926-30071 Filter, Air Purifier, No.1AIR PURIFIER, NO.1 [07.1981 - 07.1983] GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TD E,TWC) |
88926-30071 |
US $154.34 |
||
| replacement | |||||
|
88921
|
88921
88926-40010 Filter, Air Purifier, No.1[07.1981 - 07.1983] GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TD E,TWC) |
88926-40010 |
US $160.16 |
||
|
8848230250
|
8848230250
88482-30250
Cap, Cooler
|
88482-30250 |
— | ||
|
8856930490
|
8856930490
88569-30490
Clamp (for Cooler Relay)
|
88569-30490 |
— | ||
|
8857330490
|
8857330490
88573-30490
Base, Grille
|
88573-30490 |
— | ||
|
8857814020
|
8857814020
88578-14020
Packing, Cooler Stabilizer Amplifier
|
88578-14020 |
— | ||
|
8857830340
|
8857830340
88578-30340
Paking, Cooler Air Duct
|
88578-30340 |
— | ||
|
8857830370
|
8857830370
88578-30370
Packing, Air Purifier, No.1
|
88578-30370 |
— | ||
|
8871830790
|
8871830790
88718-30790
Pipe, Cooler Refrigerant Suction, No.2
|
88718-30790 |
— | ||
|
9011906042
|
9011906042
90119-06042
New Genuine Part
|
90119-06042 |
— | ||
| replacement | |||||
|
9011906042
|
9011906042
90119-06341 BOLT |
90119-06341 |
US $1.92 |
||
|
9018304056
|
9018304056
90183-04056 Nut, Spring |
90183-04056 |
US $2.72 |
||
|
9048025258
|
9048025258
90480-25258
Grommet, Rear Heater Water Hose
|
90480-25258 |
— | ||
|
9165640625
|
9165640625
91656-40625 New Genuine Part |
91656-40625 |
US $1.89 |
||
| replacement | |||||
|
9165640625
|
9165640625
91651-60625 New Genuine Part |
91651-60625 |
US $2.56 |
||
|
9354015016
|
9354015016
93540-15016 New Genuine Part |
93540-15016 |
US $0.87 |
||
|
9354054014
|
9354054014
93540-54014 SCREW |
93540-54014 |
from US $1.05 |
||
|
9356014012
|
9356014012
93560-14012 SCREW |
93560-14012 |
US $1.12 |
||
|
9356015012
|
9356015012
93560-15012 New Genuine Part |
93560-15012 |
US $1.12 |
||
|
9452500600
|
9452500600
94525-00600 New Genuine Part |
94525-00600 |
US $2.18 |
||
