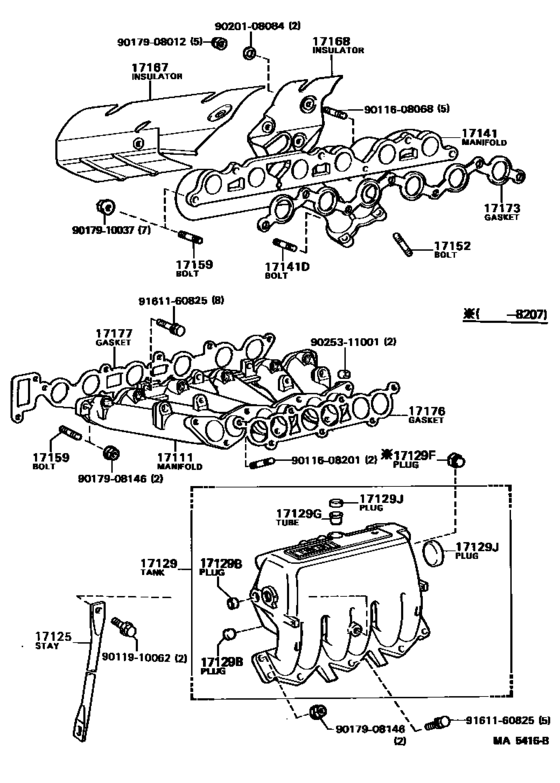

Manifold ([08.1981 - ] (8108- )5MGEU) Diagram Toyota CROWN/ MAJESTA
- Year
- 1981 - 1983
- Sales region
- Japan
- Frame
- MS112
- grade
- ROY
- body
- HT
- ENGINE
- 5MGEU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1981
- To
- 07.1983
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Hard Top Type
- 2DH
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17111-43010
Manifold, Intake
[08.1981 - 07.1983] 5MGEU..MS112 |
17111-43010 |
— | ||
|
17125
|
17125
17125-43010 Stay, Surge Tank, No.1SURGE TANK, NO.1 [08.1981 - 07.1982] 5MGEU..MS112 |
17125-43010 |
US $28.54 |
||
| replacement | |||||
|
17125
|
17125
17125-43011 Stay, Surge Tank, No.1[08.1981 - 07.1982] 5MGEU..MS112 |
17125-43011 |
US $28.83 |
||
|
17125
|
17125
17125-43011 Stay, Surge Tank, No.1[07.1982 - 07.1983] 5MGEU..MS112 |
17125-43011 |
US $28.83 |
||
|
17129
|
17129
17109-43020
Tank, Intake Air Surge
[08.1981 - 07.1983] 5MGEU..MS112 |
17109-43020 |
— | ||
|
17129B
|
17129B
96411-11600 Plug[08.1981 - 07.1983] 5MGEU..MS112 |
96411-11600 |
US $4.16 |
||
|
17129F
|
17129F
90072-34107
Plug, W/head Taper Screw, No.1
[09.1979 - 07.1982] 5M#..MS112 |
90072-34107 |
— | ||
| replacement | |||||
|
17129F
|
17129F
90345-51006 Plug, W/head Taper Screw, No.2[09.1979 - 07.1982] 5M#..MS112 |
90345-51006 |
US $0.96 |
||
|
17129G
|
17129G
25619-43010 Tube, Egr Inlet[08.1981 - 07.1983] 5MGEU..MS112 |
25619-43010 |
US $9.90 |
||
|
17129J
|
17129J
96411-11800 Plug, Tight, No.3(For Cylinder Block)[08.1981 - 07.1983] 5MGEU..MS112 OD=18 |
96411-11800 |
US $1.05 |
||
| replacement | |||||
|
17129J
|
17129J
96411-41800 Plug, Tight, No.1[08.1981 - 07.1983] 5MGEU..MS112 OD=18 |
96411-41800 |
from US $1.72 |
||
|
17129J
|
17129J
96411-13000
Plug, Tight, No.1(For Cylinder Block)
[08.1981 - 07.1983] 5MGEU..MS112 OD=30 |
96411-13000 |
— | ||
| replacement | |||||
|
17129J
|
17129J
96411-43000 Plug, Tight, No.1[08.1981 - 07.1983] 5MGEU..MS112 OD=30 |
96411-43000 |
from US $3.84 |
||
|
17141
|
17141
17141-43010
Manifold, Exhaust
[08.1981 - 07.1983] 5MGEU..MS112 |
17141-43010 |
— | ||
|
17141D
|
17141D
90116-08128 Bolt, Stud(For Manifold Stay)[08.1981 - 08.1982] 5MGEU..MS112 |
90116-08128 |
US $4.16 |
||
|
17141D
|
17141D
90116-08168 Bolt, Stud(For Oxygen Sensor)[08.1982 - 07.1983] 5M#,MTEU,MU..MS11# L=28,S=14&8 |
90116-08168 |
US $2.56 |
||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[02.1981 - 07.1983] 1GE#..GS11# L=46.5,S=14&20; MEU,MJ,5M#,MTEU,MU..MS11# L=46.5,S=14&20; 5RU..RS110 L=46.5,S=14&20 |
90116-10058 |
from US $2.44 |
||
|
17159
|
17159
90116-08201
Bolt, Stud(For Head To Camshaft Bearing Cap)
[08.1981 - 07.1983] 5MGEU..MS112 INTAKE MANIFOLD |
90116-08201 |
— | ||
|
17159
|
17159
90116-10025 Bolt, Stud(For Manifold To Cylinder Head)[08.1981 - 07.1983] 5MGEU..MS112 EXHAUST MANIFOLD |
90116-10025 |
US $3.36 |
||
|
17167
|
17167
17167-43010
Insulator, Exhaust Manifold Heat, No.1
[08.1981 - 07.1983] 5MGEU..MS112 |
17167-43010 |
— | ||
| replacement | |||||
|
17167
|
17167
17167-43011 Insulator, Exhaust Manifold Heat, No.1[08.1981 - 07.1983] 5MGEU..MS112 |
17167-43011 |
US $40.48 |
||
|
17168
|
17168
17168-43010
Insulator, Exhaust Manifold Heat, No.2
[08.1981 - 07.1983] 5MGEU..MS112 |
17168-43010 |
— | ||
|
17173
|
17173
17173-43010
Gasket, Exhaust Manifold To Head
[08.1981 - 07.1983] 5MGEU..MS112 |
17173-43010 |
— | ||
| replacement | |||||
|
17173
|
17173
17173-43040 Gasket, Exhaust Manifold To Head[08.1981 - 07.1983] 5MGEU..MS112 |
17173-43040 |
US $28.65 |
||
|
17176
|
17176
17176-43010
Gasket, Air Surge Tank To Intake Manifold
[08.1981 - 07.1983] 5MGEU..MS112 |
17176-43010 |
— | ||
| replacement | |||||
|
17176
|
17176
17176-43040
Gasket, Air Surge Tank To Intake Manifold
[08.1981 - 07.1983] 5MGEU..MS112 |
17176-43040 |
— | ||
|
17177
|
17177
17177-43010
Gasket, Intake Manifold To Head, No.1
[08.1981 - 07.1983] 5MGEU..MS112 |
17177-43010 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-43040
Gasket, Intake Manifold To Head, No.1
[08.1981 - 07.1983] 5MGEU..MS112 |
17177-43040 |
— | ||
|
9011608068
|
9011608068
90116-08068 New Genuine Part |
90116-08068 |
US $4.48 |
||
|
9011608201
|
9011608201
90116-08201
Bolt, Stud(For Head To Camshaft Bearing Cap)
|
90116-08201 |
— | ||
|
9011910062
|
9011910062
90119-10062
New Genuine Part
|
90119-10062 |
— | ||
| replacement | |||||
|
9011910062
|
9011910062
90119-10640 New Genuine Part |
90119-10640 |
US $4 |
||
|
9017908012
|
9017908012
90179-08012 NUT |
90179-08012 |
US $3.68 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9017910037
|
9017910037
90179-10037 NUT |
90179-10037 |
from US $2.42 |
||
| replacement | |||||
|
9017910037
|
9017910037
90179-10128 NUT |
90179-10128 |
from US $1.54 |
||
|
9020108084
|
9020108084
90201-08084 New Genuine Part |
90201-08084 |
US $2.88 |
||
|
9025311001
|
9025311001
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting) |
90253-11001 |
US $1.92 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
