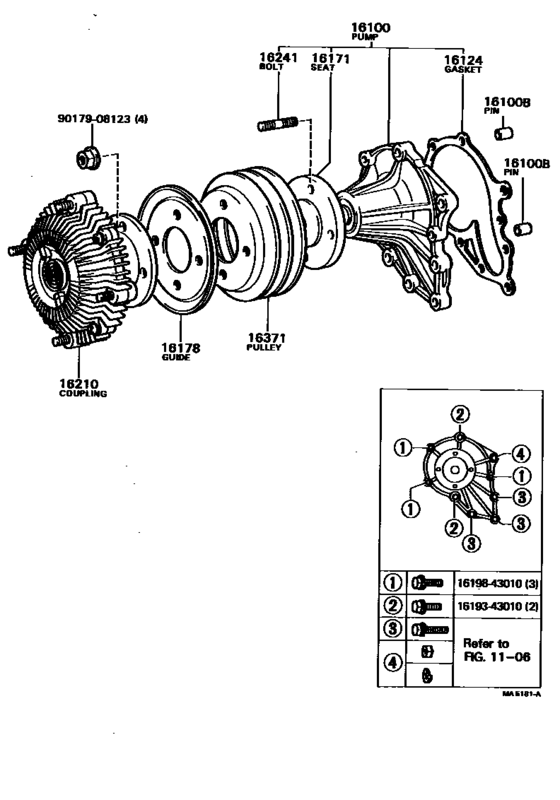

Water Pump ([08.1981 - ] (8108- )5MGEU) Diagram Toyota CROWN/ MAJESTA
- Year
- 1981 - 1983
- Sales region
- Japan
- Frame
- MS112
- grade
- ROY
- body
- HT
- ENGINE
- 5MGEU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1981
- To
- 07.1983
- Gear Shift Type
- 4FC
- No.of Doors
- 2D
- Hard Top Type
- 2DH
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-49655
Pump Assy, Engine Water
[08.1981 - 07.1983] 5MGEU..MS112 |
16100-49655 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-49656
Pump Assy, Engine Water
[08.1981 - 07.1983] 5MGEU..MS112 |
16100-49656 |
— | ||
|
16100B
|
16100B
16185-70010
Pin, Ring(For Water Pump Set)
[08.1981 - 07.1983] 1GE#..GS11#; 5MGEU..MS112 |
16185-70010 |
— | ||
|
16124
|
16124
16124-43010
Gasket, Water Pump Cover
[08.1981 - 07.1983] 5MGEU..MS112 |
16124-43010 |
— | ||
| replacement | |||||
|
16124
|
16124
16124-43011
Gasket, Water Pump Cover
[08.1981 - 07.1983] 5MGEU..MS112 |
16124-43011 |
— | ||
|
16171
|
16171
16171-41170 Seat, Water Pump Pulley[08.1981 - 04.1983] 5MGEU..MS112 |
16171-41170 |
US $14.85 |
||
|
16171
|
16171
16171-43030 Seat, Water Pump PulleyWATER PUMP PULLEY [04.1983 - 07.1983] 5MGEU..MS112 |
16171-43030 |
US $21.55 |
||
| replacement | |||||
|
16171
|
16171
16171-43040 Seat, Water Pump Pulley[04.1983 - 07.1983] 5MGEU..MS112 |
16171-43040 |
US $21.40 |
||
|
16178
|
16178
16178-45100
Guide, Water Pump V Belt
[09.1979 - 07.1983] MEU,MJ,5M#,MTEU,MU..MS11# |
16178-45100 |
— | ||
|
16210
|
16210
16210-45100
Coupling Assy, Fluid
[09.1979 - 07.1983] 5M#..MS112 |
16210-45100 |
— | ||
|
16241
|
16241
16198-41170 Bolt, Stud(For Water Pump Pulley Seat)[09.1979 - 04.1983] MEU,MJ,5M#,MTEU,MU..MS11# |
16198-41170 |
US $3.32 |
||
|
16241
|
16241
16198-43030 Bolt, Stud(For Water Pump Coupling)STUD(FOR WATER PUMP COUPLING) [04.1983 - 07.1983] 5MGEU..MS112 |
16198-43030 |
US $4.51 |
||
| replacement | |||||
|
16241
|
16241
16198-43040
Bolt, Stud(For Water Pump Pulley Seat)
[04.1983 - 07.1983] 5MGEU..MS112 |
16198-43040 |
— | ||
|
16371
|
16371
16173-45101
Seat, Water Pump Pulley
[09.1980 - 07.1983] MEU,MJ,5M#,MTEU,MU..MS11# |
16173-45101 |
— | ||
|
1619343010
|
1619343010
16193-43010
Bolt, Stud(for Water Pump Cover)
|
16193-43010 |
— | ||
|
1619843010
|
1619843010
16198-43010
Bolt, Stud(for Water Pump Pulley Seat)
|
16198-43010 |
— | ||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.84 |
||
