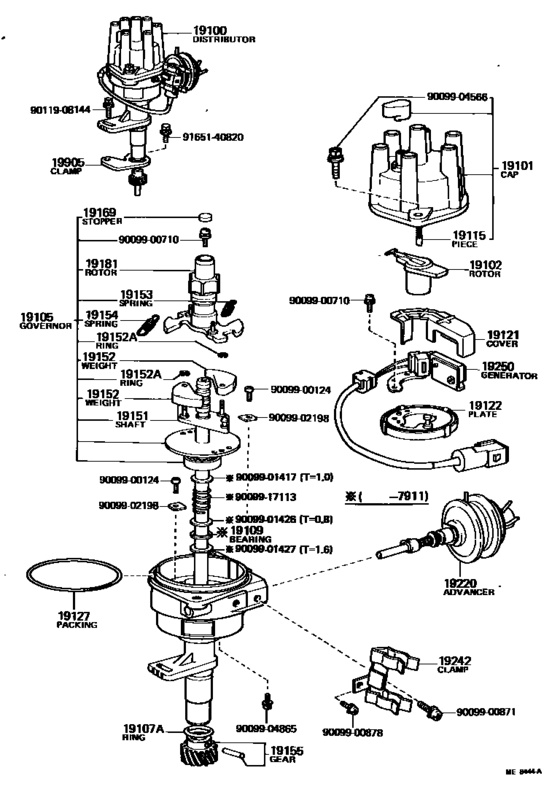

Distributor ([09.1979 - ] (7909- )5ME) Diagram Toyota CROWN/ MAJESTA
- Year
- 1979 - 1983
- Sales region
- Europe
- Frame
- MS112
- grade
- SAL
- body
- SED
- ENGINE
- 5ME
- TRANSMISSION
- ATM
- DESTINATION
- EUR
- Model
- CROWN
- From
- 09.1979
- To
- 07.1983
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19100-43020 Distributor Assy[09.1979 - 07.1983] 5ME..MS112..EUR,GEN |
19100-43020 |
US $717.81 |
||
|
19100
|
19100
19100-43040
Distributor Assy
[08.1982 - 07.1983] 5ME..MS112..EUR SWITZERLAND SPEC |
19100-43040 |
— | ||
|
19101
|
19101
19101-41140 Cap Sub-Assy, DistributorDISTRIBUTOR [09.1979 - 07.1983] 5M#..MS112 |
19101-41140 |
US $47.87 |
||
|
19102
|
19102
19102-45060
Rotor Sub-Assy, Distributor
[08.1982 - 07.1983] 5ME..MS112..EUR SWITZERLAND SPEC |
19102-45060 |
— | ||
| replacement | |||||
|
19102
|
19102
19102-45150 Rotor Sub-Assy, DistributorDISTRIBUTOR [08.1982 - 07.1983] 5ME..MS112..EUR SWITZERLAND SPEC |
19102-45150 |
from US $18.54 |
||
|
19102
|
19102
19102-45150 Rotor Sub-Assy, DistributorDISTRIBUTOR [09.1979 - 07.1983] 5ME..MS112..EUR,GEN |
19102-45150 |
from US $18.54 |
||
|
19105
|
19105
19105-43020
Governor Sub-Assy
[09.1979 - 07.1983] 5ME..MS112..EUR,GEN |
19105-43020 |
— | ||
|
19105
|
19105
19105-43040
Governor Sub-Assy
[08.1982 - 07.1983] 5ME..MS112..EUR SWITZERLAND SPEC |
19105-43040 |
— | ||
|
19107A
|
19107A
90099-14018
Ring, O, Distributor Housing
[09.1979 - 07.1983] 4M,5M#..MS11# |
90099-14018 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14088 Ring, O, Distributor Housing[09.1979 - 07.1983] 4M,5M#..MS11# |
90099-14088 |
from US $2.50 |
||
|
19109
|
19109
19109-45060
Bearing, Thrust
[09.1979 - 11.1979] 5ME..MS112; 4M..MS111..ARL |
19109-45060 |
— | ||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[09.1979 - 07.1983] 4M,5M#..MS11#; 5R..RS110 |
19115-50010 |
— | ||
|
19121
|
19121
19121-27020
Cover, Dust Proof
[09.1979 - 07.1983] 5ME..MS112 |
19121-27020 |
— | ||
|
19122
|
19122
19122-45070
Plate, Stationary, Distributor
[09.1979 - 07.1983] 5ME..MS112 |
19122-45070 |
— | ||
|
19151
|
19151
19151-41200 Shaft, GovernorGOVERNOR [09.1979 - 07.1983] 5M#..MS112 |
19151-41200 |
US $67.56 |
||
|
19152
|
19152
19152-45060
Weight, Governor
[09.1979 - 07.1983] 5M#..MS112; 5R..RS110 |
19152-45060 |
— | ||
| replacement | |||||
|
19152
|
19152
19152-44170
Weight, Governor
[09.1979 - 07.1983] 5M#..MS112; 5R..RS110 |
19152-44170 |
— | ||
|
19152A
|
19152A
90099-07109
Ring, Snap(For Governor Weight)
[09.1979 - 07.1983] 5M#..MS112 |
90099-07109 |
— | ||
|
19153
|
19153
19153-43020
Spring, Governor, A
[09.1979 - 07.1983] 5ME..MS112..EUR,GEN |
19153-43020 |
— | ||
|
19153
|
19153
19153-43040 Spring, Governor, AGOVERNOR, A [08.1982 - 07.1983] 5ME..MS112..EUR SWITZERLAND SPEC |
19153-43040 |
US $4.95 |
||
|
19154
|
19154
19153-43020
Spring, Governor, A
[09.1979 - 07.1983] 5ME..MS112..EUR,GEN |
19153-43020 |
— | ||
|
19154
|
19154
19153-43040 Spring, Governor, AGOVERNOR, A [08.1982 - 07.1983] 5ME..MS112..EUR SWITZERLAND SPEC |
19153-43040 |
US $4.95 |
||
|
19155
|
19155
19195-41130 Gear, Spiral, DistributorSPIRAL, DISTRIBUTOR [09.1979 - 07.1983] 5M#..MS112 |
19195-41130 |
US $41.93 |
||
|
19169
|
19169
19169-32010
Stopper, Cam Grease
[09.1979 - 07.1983] 4M,5M#..MS11# |
19169-32010 |
— | ||
| replacement | |||||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[09.1979 - 07.1983] 4M,5M#..MS11# |
19169-63011 |
— | ||
|
19181
|
19181
19181-43020
Rotor, Distributor, Signal
[09.1979 - 07.1983] 5ME..MS112 |
19181-43020 |
— | ||
|
19220
|
19220
19220-43020
Advancer Assy, Vacuum, Distributor
[09.1979 - 07.1983] 5ME..MS112..EUR,GEN |
19220-43020 |
— | ||
|
19220
|
19220
19220-43041 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [08.1982 - 07.1983] 5ME..MS112..EUR SWITZERLAND SPEC |
19220-43041 |
US $97.55 |
||
|
19242
|
19242
19242-26231
Clamp, Cord
[09.1979 - 07.1983] 5ME..MS112 |
19242-26231 |
— | ||
|
19250
|
19250
19250-45150 Generator Assy, SignalSIGNAL [09.1979 - 07.1983] 5ME..MS112 |
19250-45150 |
US $161.62 |
||
|
19905
|
19905
19955-45010 Clamp Sub-Assy, DistributorDISTRIBUTOR [09.1979 - 07.1983] 5M#..MS112 |
19955-45010 |
US $55.76 |
||
|
9009900124
|
9009900124
90099-00124
New Genuine Part
|
90099-00124 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900871
|
9009900871
90099-00871
New Genuine Part
|
90099-00871 |
— | ||
|
9009900878
|
9009900878
90099-00878
New Genuine Part
|
90099-00878 |
— | ||
|
9009901417
|
9009901417
90099-01417
Washer(For Governor Shaft Thrust)
|
90099-01417 |
— | ||
|
9009901426
|
9009901426
90099-01426
Washer, No.2(For Governor Shaft Thrust)
|
90099-01426 |
— | ||
|
9009901427
|
9009901427
90099-01427
Washer, No.3(For Governor Shaft Thrust)
|
90099-01427 |
— | ||
|
9009902198
|
9009902198
90099-02198
Plate, Holder
|
90099-02198 |
— | ||
|
9009904566
|
9009904566
90099-04566
New Genuine Part
|
90099-04566 |
— | ||
|
9009904865
|
9009904865
90099-04865
New Genuine Part
|
90099-04865 |
— | ||
|
9009917113
|
9009917113
90099-17113
Spring, No.1(For Governor Shaft Thrust)
|
90099-17113 |
— | ||
|
9011908144
|
9011908144
90119-08144
New Genuine Part
|
90119-08144 |
— | ||
| replacement | |||||
|
9011908144
|
9011908144
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.88 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $1.06 |
||
