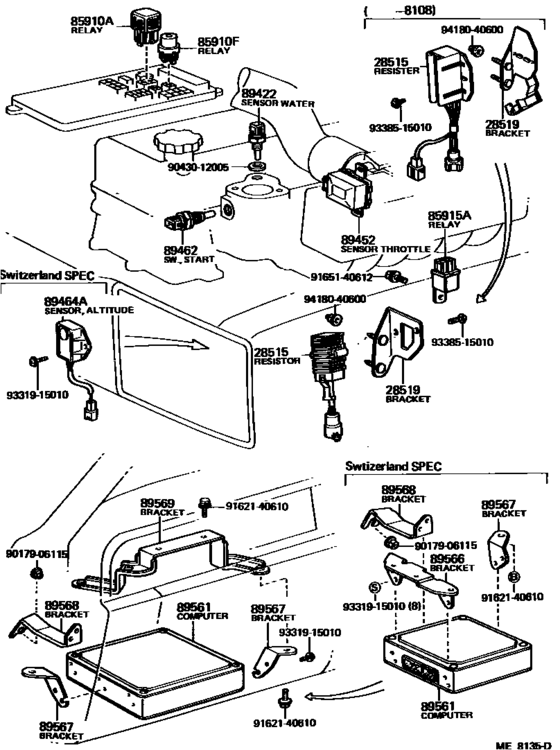

Electronic Fuel Injection System ([09.1979 - ] (7909- )EFI) Diagram Toyota CROWN/ MAJESTA
- Year
- 1979 - 1983
- Sales region
- Europe
- Frame
- MS112
- grade
- SAL
- body
- SED
- ENGINE
- 5ME
- TRANSMISSION
- ATM
- DESTINATION
- EUR
- Model
- CROWN
- From
- 09.1979
- To
- 07.1983
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28515
|
28515
28515-41010 Resistor, SolenoidSOLENOID [09.1979 - 08.1981] 5ME..MS112 |
28515-41010 |
US $161.62 |
||
| replacement | |||||
|
28515
|
28515
28515-41020 Resistor, Solenoid[09.1979 - 08.1981] 5ME..MS112 |
28515-41020 |
US $177.63 |
||
|
28515
|
28515
28515-70010
Resistor, Solenoid
[08.1981 - 07.1983] 5ME..MS112 |
28515-70010 |
— | ||
|
28519
|
28519
28519-41020
Bracket, Solenoid Resistor
[09.1979 - 08.1981] 5ME..MS112 |
28519-41020 |
— | ||
|
28519
|
28519
28519-43030
Bracket, Solenoid Resistor
[08.1981 - 07.1983] 5ME..MS112 |
28519-43030 |
— | ||
|
85910A
|
85910A
85910-30050 Relay Assy, Circuit Opening (For Efi)[09.1979 - 07.1983] MS112..EFI |
85910-30050 |
US $84.36 |
||
|
85910F
|
85910F
90987-02001 Relay Assy (For Heater Blower Motor)[09.1979 - 09.1980] MS112 |
90987-02001 |
US $40.48 |
||
| replacement | |||||
|
85910F
|
85910F
90999-99089 Relay Assy (For Heater Blower Motor)[09.1979 - 09.1980] MS112 |
90999-99089 |
US $26.05 |
||
|
85910F
|
85910F
90987-02004 Relay Assy, Starter[09.1980 - 07.1983] MS112..EFI |
90987-02004 |
from US $29.66 |
||
| replacement | |||||
|
85910F
|
85910F
909870200483 [09.1980 - 07.1983] MS112..EFI |
909870200483 |
US $53.75 |
||
|
89422
|
89422
89422-30020
Sensor, Water Temperature (For E.f.i.)
[09.1979 - 07.1983] MS112..EFI |
89422-30020 |
— | ||
| replacement | |||||
|
89422
|
89422
89422-12010 Sensor, Water Temperature (For E.f.i.)[09.1979 - 07.1983] MS112..EFI |
89422-12010 |
from US $61.10 |
||
|
89452
|
89452
89452-22010 Sensor, Throttle Position (For E.f.i.)[09.1979 - 10.1980] MS112 |
89452-22010 |
US $130.32 |
||
|
89462
|
89462
89462-30011 Switch, Start Injector Time[09.1979 - 07.1983] MS112..EFI |
89462-30011 |
US $139.12 |
||
|
89561
|
89561
89561-30070 Computer, Fuel InjectionFUEL INJECTION [09.1979 - 07.1983] MS112..(EUR,GEN)..EFI |
89561-30070 |
US $1,023.57 |
||
|
89567
|
89567
89567-30060 Bracket, Fuel Injection ComputerFUEL INJECTION COMPUTER [09.1979 - 08.1981] MS112..RHD..EFI |
89567-30060 |
US $11.36 |
||
| replacement | |||||
|
89567
|
89567
89567-30080
Bracket, Fuel Injection Computer
[09.1979 - 08.1981] MS112..RHD..EFI |
89567-30080 |
— | ||
|
89567
|
89567
89567-30080
Bracket, Fuel Injection Computer
[08.1981 - 07.1983] MS112..RHD..EFI |
89567-30080 |
— | ||
|
89568
|
89568
89568-30070
Bracket, Fuel Injection Computer
[09.1979 - 07.1983] MS112..RHD..EFI |
89568-30070 |
— | ||
|
89569
|
89569
89569-30040
Bracket, Emission Control Computer
[09.1979 - 07.1983] MS112..RHD..EFI |
89569-30040 |
— | ||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9162140610
|
9162140610
91621-40610 BOLT |
91621-40610 |
from US $0.70 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
|
9338515010
|
9338515010
93385-15010 Screw(For Steering Tilt Lever) |
93385-15010 |
US $1.12 |
||
|
9418040600
|
9418040600
94180-40600 Retainer, Roof Window Hinge |
94180-40600 |
from US $1.44 |
||
