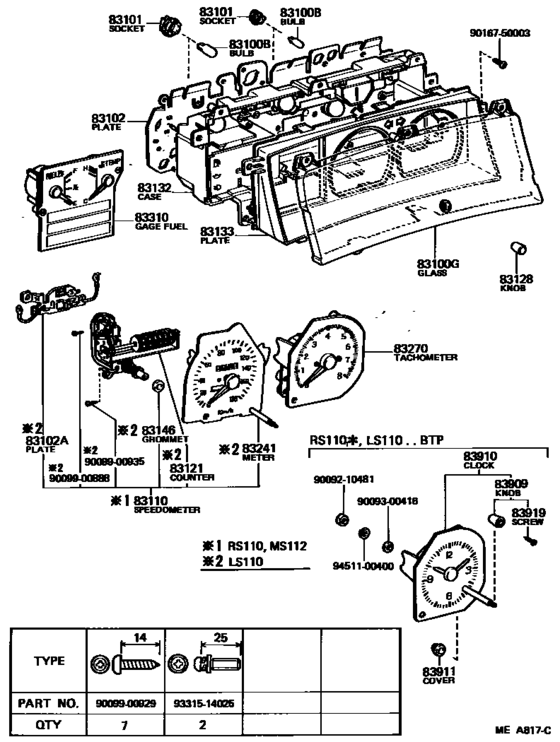

Meter ([08.1981 - ] (8108- )) Diagram Toyota CROWN/ MAJESTA
- Year
- 1980 - 1983
- Sales region
- Europe
- Frame
- MS112
- grade
- SAL
- body
- SED
- ENGINE
- 5M
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 08.1980
- To
- 07.1983
- Gear Shift Type
- 4HC
- Driver's Position
- RHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[09.1979 - 08.1981] LS110,MS11#,RS110 12V 1.2W W/O SOCKET,12V 1.4W |
90981-11018 |
from US $2.24 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[08.1981 - 07.1983] LS110,MS112,RS110 12V 3.4W,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[08.1981 - 07.1983] LS110,MS112,RS110 12V 3.4W,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83138-30550
Glass, Combination Meter
[08.1981 - 07.1983] MS112..RHD |
83138-30550 |
— | ||
|
83100G
|
83100G
83138-30860
Glass, Combination Meter
[09.1979 - 08.1981] MS11#..RHD W/TACHOMETER |
83138-30860 |
— | ||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[08.1981 - 07.1983] LS110,MS112,RS110 12V 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[09.1979 - 08.1981] LS110,MS11#,RS110 12V 1.4W |
83101-14040 |
US $3.02 |
||
|
83102
|
83102
83247-30130
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1981 - 07.1983] MS112,RS110 |
83247-30130 |
— | ||
|
83102
|
83102
83247-30880
Plate Sub-Assy, Combination Meter Circuit, No.1
[09.1979 - 08.1980] MS11#..DLX,ROY,SAL W/TACHOMETER |
83247-30880 |
— | ||
| replacement | |||||
|
83102
|
83102
83247-30871
Plate Sub-Assy, Combination Meter Circuit, No.1
[09.1979 - 08.1980] MS11#..DLX,ROY,SAL W/TACHOMETER |
83247-30871 |
— | ||
|
83102
|
83102
83247-30881
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1980 - 08.1981] MS112..DLX,ROY,SAL W/TACHOMETER |
83247-30881 |
— | ||
| replacement | |||||
|
83102
|
83102
83247-30871
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1980 - 08.1981] MS112..DLX,ROY,SAL W/TACHOMETER |
83247-30871 |
— | ||
|
83110
|
83110
83110-30690 Speedometer Assy[08.1980 - 08.1981] MS112..RHD..CBR KM,W/TACHOMETER |
83110-30690 |
US $356.72 |
||
|
83110
|
83110
83110-30700
Speedometer Assy
[09.1979 - 08.1981] MS11#..RHD..(EUR,GEN) MILE & KM,W/TACHOMETER |
83110-30700 |
— | ||
|
83110
|
83110
83110-3A030 Speedometer Assy[08.1981 - 07.1983] MS112..LHD..DLX..CBR MILE & KM; MS112..RHD..(EUR,GEN) MILE & KM |
83110-3A030 |
US $317.41 |
||
|
83128
|
83128
83128-10260
Knob, Trip Counter
[09.1979 - 07.1983] LS110,MS11#,RS110 |
83128-10260 |
— | ||
|
83132
|
83132
83132-30110
Case, Combination Meter
[08.1981 - 07.1983] MS112..RHD..(EUR,GEN) |
83132-30110 |
— | ||
|
83132
|
83132
83132-30870
Case, Combination Meter
[09.1979 - 08.1980] MS11#..RHD W/TACHOMETER |
83132-30870 |
— | ||
| replacement | |||||
|
83132
|
83132
83132-30871
Case, Combination Meter
[09.1979 - 08.1980] MS11#..RHD W/TACHOMETER |
83132-30871 |
— | ||
|
83132
|
83132
83132-30871
Case, Combination Meter
[08.1980 - 08.1981] MS112..RHD W/TACHOMETER |
83132-30871 |
— | ||
|
83133
|
83133
83133-30050
Plate, Combination Meter, No.1
[08.1981 - 07.1983] LS110,MS112,RS110..RHD |
83133-30050 |
— | ||
|
83133
|
83133
83133-30890
Plate, Combination Meter, No.1
[09.1979 - 08.1981] MS11#..RHD..(EUR,GEN) W/TACHOMETER |
83133-30890 |
— | ||
|
83270
|
83270
83242-30020
Tachometer Assy, Engine
[09.1979 - 08.1981] MS11#..DLX,ROY,SAL |
83242-30020 |
— | ||
|
83270
|
83270
83242-30050
Tachometer Assy, Engine
[08.1981 - 07.1983] MS112 |
83242-30050 |
— | ||
|
83310
|
83310
83243-30810 Gage Assy, Fuel ReceiverFUEL RECEIVER [09.1979 - 08.1981] MS11#..DLX,ROY,SAL W/TACHOMETER |
83243-30810 |
US $119.39 |
||
|
83310
|
83310
83243-30870
Gage Assy, Fuel Receiver
[08.1981 - 07.1983] LS110,MS112,RS110 |
83243-30870 |
— | ||
|
83909
|
83909
83909-30250 Knob, ClockCLOCK [09.1979 - 08.1981] LS110,MS11#,RS110..DLX,ROY,SAL DIGITAL |
83909-30250 |
US $6.12 |
||
| replacement | |||||
|
83909
|
83909
83909-12230
Knob, Clock
[09.1979 - 08.1981] LS110,MS11#,RS110..DLX,ROY,SAL DIGITAL |
83909-12230 |
— | ||
|
83910
|
83910
83910-30240
Clock Assy
[09.1979 - 08.1981] LS110,MS11#,RS110..BTP,DLX,SAL |
83910-30240 |
— | ||
|
83910
|
83910
83910-30250
Clock Assy
[09.1979 - 08.1981] LS110,MS11#,RS110..DLX,ROY,SAL DIGITAL |
83910-30250 |
— | ||
|
83919
|
83919
83919-30250
Screw, Clock
[09.1979 - 08.1981] LS110,MS11#,RS110..DLX,ROY,SAL DIGITAL |
83919-30250 |
— | ||
|
9009210481
|
9009210481
90092-10481
New Genuine Part
|
90092-10481 |
— | ||
|
9009300416
|
9009300416
90093-00416
New Genuine Part
|
90093-00416 |
— | ||
|
9009900888
|
9009900888
90099-00888
New Genuine Part
|
90099-00888 |
— | ||
|
9009900929
|
9009900929
90099-00929
New Genuine Part
|
90099-00929 |
— | ||
|
9009900935
|
9009900935
90099-00935
New Genuine Part
|
90099-00935 |
— | ||
|
9016750003
|
9016750003
90167-50003 New Genuine Part |
90167-50003 |
US $1.75 |
||
| replacement | |||||
|
9016750003
|
9016750003
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
|
9331514025
|
9331514025
93315-14025 New Genuine Part |
93315-14025 |
US $1.16 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
