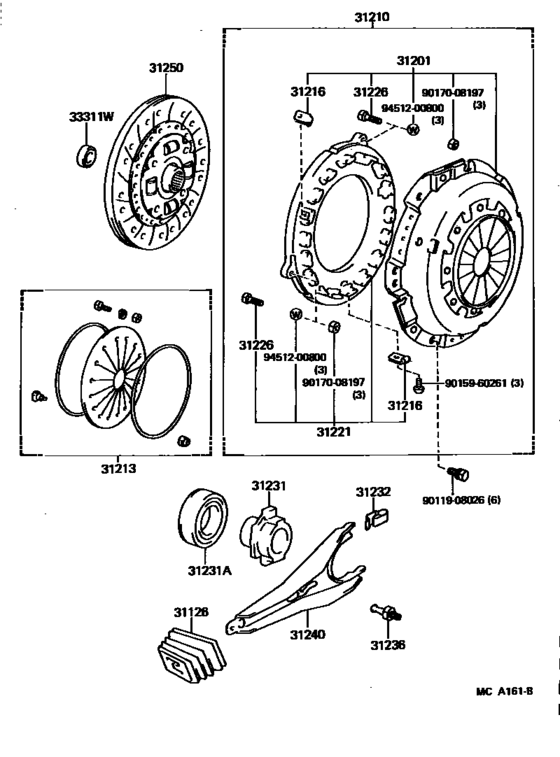

Clutch & Release Fork ([08.1983 - ] (8308- )MS120..4H) Diagram Toyota CROWN/ MAJESTA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- MS120
- grade
- DLX
- body
- SED
- ENGINE
- MPU
- TRANSMISSION
- MTM
- Model
- CROWN
- From
- 08.1983
- To
- 08.1987
- Gear Shift Type
- 4H
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-20070 Boot, Clutch Release Fork[08.1983 - 08.1987] GS12#,LS12#,MS120..MTM |
31126-20070 |
from US $14.70 |
||
|
31201
|
31201
31201-39126 Cover Sub-Assy, Clutch[08.1983 - 08.1987] MS120..4H; LS120..4H..STD TAXI SPEC |
31201-39126 |
US $224.22 |
||
| replacement | |||||
|
31201
|
31201
31201-30111 Cover Sub-Assy, Clutch[08.1983 - 08.1987] MS120..4H; LS120..4H..STD TAXI SPEC |
31201-30111 |
US $160.16 |
||
|
31210
|
31210
31210-30200 Cover Assy, Clutch[08.1983 - 08.1987] MS120..4H; LS120..4H..STD TAXI SPEC |
31210-30200 |
US $264.99 |
||
| replacement | |||||
|
31210
|
31210
31210-30221 Cover Assy, Clutch[08.1983 - 08.1987] MS120..4H; LS120..4H..STD TAXI SPEC |
31210-30221 |
US $199.47 |
||
|
31213
|
31213
31213-39055 Spring, Clutch Diaphragm[08.1983 - 08.1987] MS120..4H; LS120..4H..STD TAXI SPEC |
31213-39055 |
US $104.83 |
||
|
31216
|
31216
31216-30010
Spring, Clutch Retracting
[08.1983 - 09.1985] GS12#,LS12#,MS120..MTM |
31216-30010 |
— | ||
|
31221
|
31221
31221-39105 Plate, Clutch Pressure[08.1983 - 08.1987] MS120..4H; LS120..4H..STD TAXI SPEC |
31221-39105 |
US $68 |
||
| replacement | |||||
|
31221
|
31221
31221-30090 Plate, Clutch Pressure[08.1983 - 08.1987] MS120..4H; LS120..4H..STD TAXI SPEC |
31221-30090 |
US $122.30 |
||
|
31226
|
31226
90101-08022
Bolt, Clutch Pressure Plate
[08.1983 - 08.1987] GS12#,LS12#,MS120,YS120..MTM |
90101-08022 |
— | ||
|
31231
|
31231
31231-36070 Hub, Clutch Release Bearing[08.1983 - 01.1987] GS12#,MS120,YS120..MTM |
31231-36070 |
from US $26.60 |
||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[08.1983 - 08.1987] GS12#,LS12#,MS120,YS120..MTM |
90363-40022 |
US $41.80 |
||
|
31232
|
31232
31232-22010 Clip Or Spring, Release Bearing Hub[08.1983 - 01.1987] GS12#,LS12#,MS120,YS120..MTM |
31232-22010 |
from US $0.82 |
||
|
31236
|
31236
31236-30060 Ball, Release Fork[08.1983 - 08.1987] GS12#,LS12#,MS120,YS120..MTM |
31236-30060 |
from US $10.24 |
||
|
31240
|
31240
31204-20080 Fork Sub-Assy, Clutch Release[08.1983 - 08.1987] MS120..4H |
31204-20080 |
US $32.98 |
||
|
31250
|
31250
31250-20130 Disc Assy, Clutch[10.1983 - 06.1985] MS120..4H |
31250-20130 |
US $129.58 |
||
| replacement | |||||
|
31250
|
31250
31250-20242 Disc Assy, Clutch[10.1983 - 06.1985] MS120..4H |
31250-20242 |
from US $147.52 |
||
|
31250
|
31250
31250-26090
Disc Assy, Clutch
[06.1985 - 08.1987] MS120..4H |
31250-26090 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-20242 Disc Assy, Clutch[06.1985 - 08.1987] MS120..4H |
31250-20242 |
from US $147.52 |
||
|
31250
|
31250
31250-30280
Disc Assy, Clutch
[08.1983 - 10.1983] MS120..4H |
31250-30280 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-20242 Disc Assy, Clutch[08.1983 - 10.1983] MS120..4H |
31250-20242 |
from US $147.52 |
||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[08.1983 - 08.1987] LS12#,MS120,YS120..MTM |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[08.1983 - 08.1987] LS12#,MS120,YS120..MTM |
90363-12024 |
from US $5.91 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
|
9015960261
|
9015960261
90159-60261 New Genuine Part |
90159-60261 |
US $1.46 |
||
|
9017008197
|
9017008197
90170-08197
New Genuine Part
|
90170-08197 |
— | ||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
