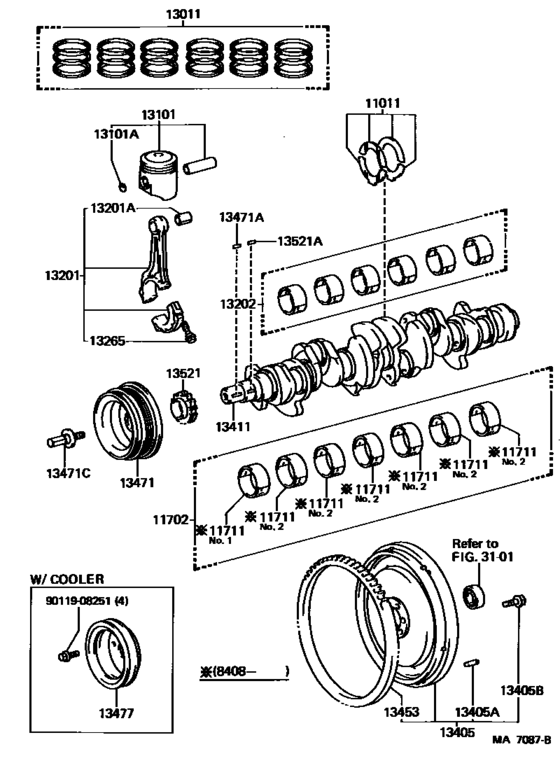

Crankshaft & Piston ([08.1983 - ] (8308- )MPU,MTEU) Diagram Toyota CROWN/ MAJESTA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- MS120
- grade
- SDX
- body
- SED
- ENGINE
- MPU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1983
- To
- 08.1987
- Gear Shift Type
- 4FC
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-43010 Washer Set, Crankshaft Thrust[08.1983 - 08.1987] 5MGEU,6MGEU,MPU,MTEU..MS12# ＳＴＤ,STD |
11011-43010 |
US $26.56 |
||
|
11011
|
11011
11012-43010
Washer Set, Crankshaft Thrust
[08.1983 - 08.1987] 5MGEU,6MGEU,MPU,MTEU..MS12# Ｏ／Ｓ ０．１２５,O/S 0.125 |
11012-43010 |
— | ||
|
11011
|
11011
11013-43010
Washer Set, Crankshaft Thrust
[08.1983 - 08.1987] 5MGEU,6MGEU,MPU,MTEU..MS12# Ｏ／Ｓ ０．２５０,O/S 0.25 |
11013-43010 |
— | ||
|
11702
|
11702
11702-45011
Bearing Set, Crankshaft
[08.1983 - 08.1984] 5MGEU,MPU,MTEU..MS12# ＳＴＤ,STD |
11702-45011 |
— | ||
|
11702
|
11702
11703-45011 Bearing Set, Crankshaft[08.1983 - 08.1984] 5MGEU,MPU,MTEU..MS12# Ｕ／Ｓ ０．０５,U/S 0.05 |
11703-45011 |
US $301.39 |
||
|
11702
|
11702
11704-43010
Bearing Set, Crankshaft
[08.1984 - 08.1987] 6MGEU,MPU,MTEU..MS12# Ｕ／Ｓ ０．２５,U/S 0.25 |
11704-43010 |
— | ||
|
11702
|
11702
11704-45011
Bearing Set, Crankshaft
[08.1983 - 08.1984] 5MGEU,MPU,MTEU..MS12# Ｕ／Ｓ ０．２５,U/S 0.25 |
11704-45011 |
— | ||
|
11702
|
11702
11705-43010 Bearing Set, Crankshaft[08.1984 - 08.1987] 6MGEU,MPU,MTEU..MS12# Ｕ／Ｓ ０．５０,U/S 0.50 |
11705-43010 |
from US $126.40 |
||
|
11702
|
11702
11705-45011
Bearing Set, Crankshaft
[08.1983 - 08.1984] 5MGEU,MPU,MTEU..MS12# Ｕ／Ｓ ０．５０,U/S 0.50 |
11705-45011 |
— | ||
|
11711
|
11711
11071-43010-01
Bearing, Crankshaft
[08.1984 - 08.1987] 6MGEU,MPU,MTEU..MS12# NO.1,MARK"1",MARK 1 |
11071-43010-01 |
— | ||
|
11711
|
11711
11071-43010-02
Bearing, Crankshaft
[08.1984 - 08.1987] 6MGEU,MPU,MTEU..MS12# NO.1,MARK"2",MARK 2 |
11071-43010-02 |
— | ||
|
11711
|
11711
11071-43010-03
Bearing, Crankshaft
[08.1984 - 08.1987] 6MGEU,MPU,MTEU..MS12# NO.1,MARK"3",MARK 3 |
11071-43010-03 |
— | ||
|
11711
|
11711
11071-43010-04
Bearing, Crankshaft
[08.1984 - 08.1987] 6MGEU,MPU,MTEU..MS12# NO.1,MARK"4",MARK 4 |
11071-43010-04 |
— | ||
|
11711
|
11711
11071-43010-05
Bearing, Crankshaft
[08.1984 - 08.1987] 6MGEU,MPU,MTEU..MS12# NO.1,MARK"5",MARK 5 |
11071-43010-05 |
— | ||
|
11711
|
11711
11701-43010-01
Bearing, Crankshaft
[08.1984 - 08.1987] 6MGEU,MPU,MTEU..MS12# NO.2,MARK"1",MARK 1 |
11701-43010-01 |
— | ||
|
11711
|
11711
11701-43010-02
Bearing, Crankshaft
[08.1984 - 08.1987] 6MGEU,MPU,MTEU..MS12# NO.2,MARK"2",MARK 2 |
11701-43010-02 |
— | ||
|
11711
|
11711
11701-43010-03
Bearing, Crankshaft
[08.1984 - 08.1987] 6MGEU,MPU,MTEU..MS12# NO.2,MARK"3",MARK 3 |
11701-43010-03 |
— | ||
|
11711
|
11711
11701-43010-04
Bearing, Crankshaft
[08.1984 - 08.1987] 6MGEU,MPU,MTEU..MS12# NO.2,MARK"4",MARK 4 |
11701-43010-04 |
— | ||
|
11711
|
11711
11701-43010-05 Bearing, Crankshaft[08.1984 - 08.1987] 6MGEU,MPU,MTEU..MS12# NO.2,MARK"5",MARK 5 |
11701-43010-05 |
US $17.88 |
||
|
13011
|
13011
13011-41015 Ring Set, Piston[08.1983 - 08.1987] MPU,MTEU..MS120 ＳＴＤ,STD |
13011-41015 |
US $248.98 |
||
|
13011
|
13011
13013-41015
Ring Set, Piston
[08.1983 - 08.1987] MPU,MTEU..MS120 Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-41015 |
— | ||
|
13011
|
13011
13014-41015 Ring Set, Piston[08.1983 - 08.1987] MPU,MTEU..MS120 Ｏ／Ｓ ０．７５,O/S 0.75 |
13014-41015 |
US $248.98 |
||
|
13011
|
13011
13015-41015 Ring Set, Piston[08.1983 - 08.1987] MPU,MTEU..MS120 Ｏ／Ｓ １．００,O/S 1.00 |
13015-41015 |
US $248.98 |
||
|
13101
|
13101
13101-41070 Piston Sub-Assy, W/pin[08.1983 - 07.1984] MPU..MS120 STD |
13101-41070 |
US $91.73 |
||
| replacement | |||||
|
13101
|
13101
13101-41071-02 Piston Sub-Assy, W/pin[08.1983 - 07.1984] MPU..MS120 STD |
13101-41071-02 |
US $90.27 |
||
|
13101
|
13101
13101-41071 Piston Sub-Assy, W/pin[07.1984 - 08.1987] MPU..MS120 ＳＴＤ,STD |
13101-41071 |
US $90.27 |
||
| replacement | |||||
|
13101
|
13101
13101-41071-02 Piston Sub-Assy, W/pin[07.1984 - 08.1987] MPU..MS120 ＳＴＤ,STD |
13101-41071-02 |
US $90.27 |
||
|
13101
|
13101
13103-41070 Piston Sub-Assy, W/pin[08.1983 - 07.1984] MPU..MS120 O/S 0.50 |
13103-41070 |
US $91.73 |
||
| replacement | |||||
|
13101
|
13101
13103-41071 Piston Sub-Assy, W/pin[08.1983 - 07.1984] MPU..MS120 O/S 0.50 |
13103-41071 |
US $90.27 |
||
|
13101
|
13101
13103-41071 Piston Sub-Assy, W/pin[07.1984 - 08.1987] MPU..MS120 Ｏ／Ｓ ０．５０,O/S 0.50 |
13103-41071 |
US $90.27 |
||
|
13101
|
13101
13104-41070 Piston Sub-Assy, W/pin[08.1983 - 07.1984] MPU..MS120 O/S 0.75 |
13104-41070 |
US $91.73 |
||
| replacement | |||||
|
13101
|
13101
13104-41071 Piston Sub-Assy, W/pin[08.1983 - 07.1984] MPU..MS120 O/S 0.75 |
13104-41071 |
US $90.27 |
||
|
13101
|
13101
13104-41071 Piston Sub-Assy, W/pin[07.1984 - 08.1987] MPU..MS120 Ｏ／Ｓ ０．７５,O/S 0.75 |
13104-41071 |
US $90.27 |
||
|
13101
|
13101
13105-41070 Piston Sub-Assy, W/pin[08.1983 - 07.1984] MPU..MS120 O/S 1.00 |
13105-41070 |
US $91.73 |
||
| replacement | |||||
|
13101
|
13101
13105-41071 Piston Sub-Assy, W/pin[08.1983 - 07.1984] MPU..MS120 O/S 1.00 |
13105-41071 |
US $90.27 |
||
|
13101
|
13101
13105-41071 Piston Sub-Assy, W/pin[07.1984 - 08.1987] MPU..MS120 Ｏ／Ｓ １．００,O/S 1.00 |
13105-41071 |
US $90.27 |
||
|
13101A
|
13101A
90521-25001
Ring, Hole Snap(For Piston Pin)
[07.1984 - 08.1987] 5MGEU,6MGEU,MPU,MTEU..MS12# |
90521-25001 |
— | ||
|
13101A
|
13101A
90521-25052 Ring, Hole Snap(For Piston Pin)[08.1983 - 07.1984] 5MGEU,MPU,MTEU..MS12# |
90521-25052 |
US $2.48 |
||
|
13201
|
13201
13201-41011 Rod Sub-Assy, Connecting[08.1983 - 08.1987] MPU,MTEU..MS120 |
13201-41011 |
US $179.09 |
||
|
13201A
|
13201A
90999-73066 Bush(For Connecting Rod Small End)[08.1983 - 08.1987] 5MGEU,6MGEU,MPU,MTEU..MS12# |
90999-73066 |
US $7.16 |
||
|
13202
|
13202
13202-45011
Bearing, Connecting Rod
[08.1983 - 07.1984] 5MGEU,MPU,MTEU..MS12# ＳＴＤ,STD |
13202-45011 |
— | ||
|
13202
|
13202
13203-45011 Bearing Set, Connecting Rod[08.1983 - 07.1984] 5MGEU,MPU,MTEU..MS12# Ｕ／Ｓ ０．０５,U/S 0.05 |
13203-45011 |
US $160.16 |
||
|
13202
|
13202
13204-45011
Bearing Set, Connecting Rod
[08.1983 - 07.1984] 5MGEU,MPU,MTEU..MS12# Ｕ／Ｓ ０．２５,U/S 0.25 |
13204-45011 |
— | ||
|
13202
|
13202
13205-45011
Bearing Set, Connecting Rod
[08.1983 - 07.1984] 5MGEU,MPU,MTEU..MS12# Ｕ／Ｓ ０．５０,U/S 0.50 |
13205-45011 |
— | ||
|
13265
|
13265
90910-02044 Bolt, Connecting Rod[08.1983 - 08.1987] MPU,MTEU..MS120 |
90910-02044 |
US $3.35 |
||
|
13411
|
13411
13411-41015 Crankshaft[08.1983 - 08.1984] MPU,MTEU..MS120 |
13411-41015 |
US $1,587.04 |
||
| replacements | |||||
|
13411
|
13411
13411-41016 Crankshaft[08.1983 - 08.1984] MPU,MTEU..MS120 |
13411-41016 |
US $1,601.60 |
||
|
13411
|
13411
90280-05003 Key, Crankshaft(For Crankshaft Pulley Set)[08.1983 - 08.1984] MPU,MTEU..MS120 |
90280-05003 |
US $1.49 |
||
|
13411
|
13411
13411-41016 Crankshaft[08.1984 - 08.1987] MPU,MTEU..MS120 |
13411-41016 |
US $1,601.60 |
||
|
13471
|
13471
13407-41030
Pulley, Crankshaft
[08.1983 - 08.1987] MPU,MTEU..MS120 |
13407-41030 |
— | ||
|
13471A
|
13471A
90280-05001 Key, Crankshaft(For Crankshaft Pulley Set)[08.1983 - 08.1984] 5MGEU,MPU,MTEU..MS12# |
90280-05001 |
US $3.32 |
||
|
13471A
|
13471A
90280-05003 Key, Crankshaft(For Crankshaft Pulley Set)[08.1984 - 08.1987] 6MGEU,MPU,MTEU..MS12# |
90280-05003 |
US $1.49 |
||
|
13471C
|
13471C
90105-16011
Bolt(For Crankshaft Pulley Set)
[08.1983 - 08.1987] 5MGEU,MPU,MTEU..MS120,123 |
90105-16011 |
— | ||
|
13477
|
13477
88451-22052 Pulley, Crankshaft, No.2[08.1983 - 08.1987] MPU..MS120 W/COOLER |
88451-22052 |
US $45.72 |
||
|
13521
|
13521
13521-41011 Gear Or Sprocket, Crankshaft Timing[08.1983 - 08.1987] MPU,MTEU..MS120 N=20 |
13521-41011 |
US $50.38 |
||
|
13521A
|
13521A
90280-05003 Key, Crankshaft(For Crankshaft Pulley Set)[08.1984 - 08.1987] 6MGEU,MPU,MTEU..MS12# |
90280-05003 |
US $1.49 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[08.1983 - 09.1986] 5MGEU,MPU,MTEU..MS120,123; 3YPU..YS120 |
90280-05010 |
from US $1.74 |
||
|
9011908251
|
9011908251
90119-08251 BOLT |
90119-08251 |
from US $1.23 |
||
