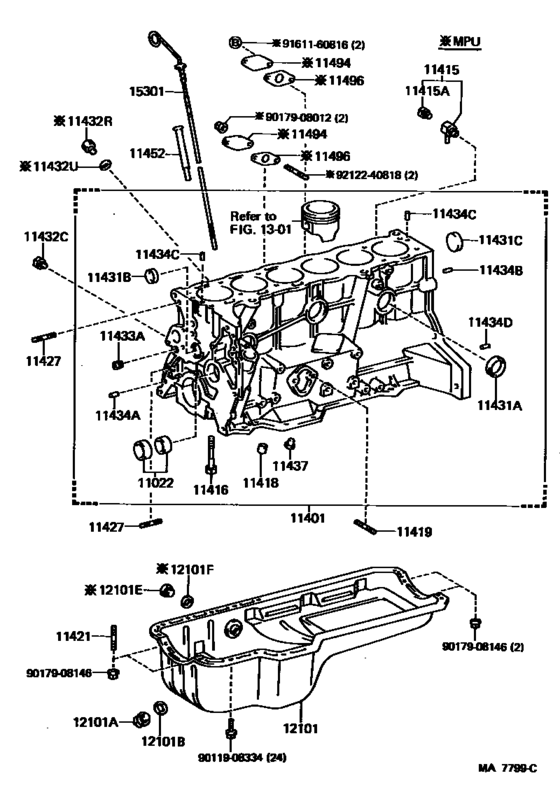

Cylinder Block ([08.1984 - ] (8408- )MPU,MTEU) Diagram Toyota CROWN/ MAJESTA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- MS120
- grade
- SDX
- body
- SED
- ENGINE
- MPU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1983
- To
- 08.1987
- Gear Shift Type
- 4FC
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11022
|
11022
11022-41010
Bearing Set, Pump Drive Shaft
[08.1983 - 08.1987] 5MGEU,6MGEU,MPU,MTEU..MS12# |
11022-41010 |
— | ||
|
11401
|
11401
11401-49355 Block Sub-Assy, Cylinder[08.1983 - 04.1984] MPU..MS120 |
11401-49355 |
US $3,508.96 |
||
| replacements | |||||
|
11401
|
11401
11071-43010-01
Bearing, Crankshaft
[08.1983 - 04.1984] MPU..MS120 |
11071-43010-01 |
— | ||
|
11401
|
11401
15473-42010 Gasket, Turbo Oil Outlet, No.2[08.1983 - 04.1984] MPU..MS120 |
15473-42010 |
US $8.96 |
||
|
11401
|
11401
11494-41010 Plate, Oil Hole Cover[08.1983 - 04.1984] MPU..MS120 |
11494-41010 |
US $7.86 |
||
|
11401
|
11401
90179-08012 NUT[08.1983 - 04.1984] MPU..MS120 |
90179-08012 |
from US $2.03 |
||
|
11401
|
11401
90341-12011 Plug, W/head Straight Screw, No.1(For Cylinder Block)[08.1983 - 04.1984] MPU..MS120 |
90341-12011 |
US $3.06 |
||
|
11401
|
11401
90345-51006 Plug, W/head Taper Screw, No.2[08.1983 - 04.1984] MPU..MS120 |
90345-51006 |
from US $0.87 |
||
|
11401
|
11401
90430-12010 Gasket(For Water Hole)[08.1983 - 04.1984] MPU..MS120 |
90430-12010 |
US $3.58 |
||
|
11401
|
11401
92122-40818 Bolt, Stud(For Oil Pan)[08.1983 - 04.1984] MPU..MS120 |
92122-40818 |
US $2.18 |
||
|
11401
|
11401
90179-10132 Nut[08.1983 - 04.1984] MPU..MS120 |
90179-10132 |
from US $0.94 |
||
|
11401
|
11401
11071-43010-02
Bearing, Crankshaft
[08.1983 - 04.1984] MPU..MS120 |
11071-43010-02 |
— | ||
|
11401
|
11401
11071-43010-03
Bearing, Crankshaft
[08.1983 - 04.1984] MPU..MS120 |
11071-43010-03 |
— | ||
|
11401
|
11401
11071-43010-04
Bearing, Crankshaft
[08.1983 - 04.1984] MPU..MS120 |
11071-43010-04 |
— | ||
|
11401
|
11401
11071-43010-05
Bearing, Crankshaft
[08.1983 - 04.1984] MPU..MS120 |
11071-43010-05 |
— | ||
|
11401
|
11401
11401-49505 Block Sub-Assy, Cylinder[08.1983 - 04.1984] MPU..MS120 |
11401-49505 |
US $3,523.52 |
||
|
11401
|
11401
90116-10097 New Genuine Part[08.1983 - 04.1984] MPU..MS120 |
90116-10097 |
US $2.33 |
||
|
11401
|
11401
11401-49395
Block Sub-Assy, Cylinder
[04.1984 - 08.1984] MPU..MS120 |
11401-49395 |
— | ||
| replacements | |||||
|
11401
|
11401
90179-10132 Nut[04.1984 - 08.1984] MPU..MS120 |
90179-10132 |
from US $0.94 |
||
|
11401
|
11401
11071-43010-01
Bearing, Crankshaft
[04.1984 - 08.1984] MPU..MS120 |
11071-43010-01 |
— | ||
|
11401
|
11401
11071-43010-02
Bearing, Crankshaft
[04.1984 - 08.1984] MPU..MS120 |
11071-43010-02 |
— | ||
|
11401
|
11401
11071-43010-03
Bearing, Crankshaft
[04.1984 - 08.1984] MPU..MS120 |
11071-43010-03 |
— | ||
|
11401
|
11401
11071-43010-04
Bearing, Crankshaft
[04.1984 - 08.1984] MPU..MS120 |
11071-43010-04 |
— | ||
|
11401
|
11401
11071-43010-05
Bearing, Crankshaft
[04.1984 - 08.1984] MPU..MS120 |
11071-43010-05 |
— | ||
|
11401
|
11401
11401-49505 Block Sub-Assy, Cylinder[04.1984 - 08.1984] MPU..MS120 |
11401-49505 |
US $3,523.52 |
||
|
11401
|
11401
90116-10097 New Genuine Part[04.1984 - 08.1984] MPU..MS120 |
90116-10097 |
US $2.33 |
||
|
11401
|
11401
11401-49505 Block Sub-Assy, Cylinder[08.1984 - 08.1987] MPU..MS120 |
11401-49505 |
US $3,523.52 |
||
|
11415
|
11415
90910-09070
Cock Sub-Assy, Water Drain(For Cylinder Block)
[08.1983 - 04.1985] 5MGEU,6MGEU,MPU,MTEU..MS12# |
90910-09070 |
— | ||
| replacement | |||||
|
11415
|
11415
96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)[08.1983 - 04.1985] 5MGEU,6MGEU,MPU,MTEU..MS12# |
96431-53828 |
US $8.12 |
||
|
11415
|
11415
96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)[04.1985 - 08.1987] 6MGEU,MPU,MTEU..MS12#; 3YPU..YS120; 2L,2LT#..LS12# |
96431-53828 |
US $8.12 |
||
|
11415A
|
11415A
90910-09072
Plug, Water Drain Cock(For Cylinder Block)
[08.1983 - 04.1985] 5MGEU,6MGEU,MPU,MTEU..MS12# |
90910-09072 |
— | ||
| replacement | |||||
|
11415A
|
11415A
96432-23814
Plug, Water Drain Cock(For Cylinder Block)
[08.1983 - 04.1985] 5MGEU,6MGEU,MPU,MTEU..MS12# |
96432-23814 |
— | ||
|
11415A
|
11415A
96432-23814
Plug, Water Drain Cock(For Cylinder Block)
[04.1985 - 08.1987] 3YPU..YS120; 6MGEU,MPU,MTEU..MS12# L=24; 2L,2LT#..LS12# L=24 |
96432-23814 |
— | ||
|
11416
|
11416
90910-02047
Bolt(For Crankshaft Bearing Cap Set)
[08.1983 - 08.1987] 5MGEU,6MGEU,MPU,MTEU..MS12# *12-1.25PX67-22 |
90910-02047 |
— | ||
|
11418
|
11418
90999-70056 Bush, Solid(For Distributor)[08.1983 - 08.1987] 5MGEU,6MGEU,MPU,MTEU..MS12# |
90999-70056 |
US $13.25 |
||
|
11419
|
11419
90116-08185 Bolt, Stud(For Fuel Pump)[08.1983 - 02.1984] 5MGEU,MPU,MTEU..MS12# L=39,S=25&9 |
90116-08185 |
US $3.35 |
||
|
11419
|
11419
90116-08191
Bolt, Stud(For Fuel Pump)
[02.1984 - 08.1987] 5MGEU,6MGEU,MPU,MTEU..MS12# |
90116-08191 |
— | ||
|
11421
|
11421
90116-08208 Bolt, Stud(For Engine Rear Oil Seal Retainer)[08.1984 - 08.1987] 6MGEU,MPU,MTEU..MS12# |
90116-08208 |
US $1.61 |
||
|
11427
|
11427
90116-08147 Bolt, Stud(For Timing Chain Cover Set)[08.1983 - 08.1987] 5MGEU,6MGEU,MPU,MTEU..MS12# L=68,S=12&24 |
90116-08147 |
US $1.49 |
||
|
11427
|
11427
90116-10010 Bolt, Stud(For Timing Chain Cover Set)[08.1983 - 08.1987] MPU,MTEU..MS120 L=80,S=12&26 |
90116-10010 |
US $2.77 |
||
|
11431A
|
11431A
96411-44000 Plug, Tight, No.1[08.1983 - 08.1987] 5MGEU,6MGEU,MPU,MTEU..MS12# OD=40 |
96411-44000 |
from US $4.02 |
||
|
11431B
|
11431B
96412-43500 Plug, Tight, No.2(For Cylinder Block)[08.1983 - 08.1987] 5MGEU,6MGEU,MPU,MTEU..MS12# OD=35 |
96412-43500 |
US $2.62 |
||
|
11431C
|
11431C
96411-43500 Plug, Tight, No.1[08.1983 - 08.1987] 5MGEU,6MGEU,MPU,MTEU..MS12# OD=35 |
96411-43500 |
from US $3.57 |
||
|
11432C
|
11432C
90345-51006 Plug, W/head Taper Screw, No.2[02.1984 - 08.1987] 5MGEU,6MGEU,MPU,MTEU..MS12# |
90345-51006 |
from US $0.87 |
||
|
11432C
|
11432C
90345-51025 Plug, W/head Taper Screw, No.2[08.1983 - 02.1984] 5MGEU,MPU,MTEU..MS12# |
90345-51025 |
US $3.76 |
||
|
11432R
|
11432R
90341-12011 Plug, W/head Straight Screw, No.1(For Cylinder Block)[04.1984 - 08.1987] MPU..MS120 |
90341-12011 |
US $3.06 |
||
|
11432U
|
11432U
90430-12010 Gasket(For Water Hole)[04.1984 - 08.1987] MPU..MS120 |
90430-12010 |
US $3.58 |
||
|
11433A
|
11433A
90344-53008 Plug, W/head Taper Screw, No.2[06.1986 - 08.1987] 6MGEU,MPU..MS12# |
90344-53008 |
US $1.97 |
||
|
11433A
|
11433A
90344-53015 Plug, W/head Taper Screw, No.1[08.1983 - 06.1986] 5MGEU,6MGEU,MPU,MTEU..MS12# |
90344-53015 |
US $5.38 |
||
|
11434A
|
11434A
90250-10192 Pin, Straight(For Timing Gear Cover Set)[08.1983 - 08.1987] 5MGEU,6MGEU,MPU,MTEU..MS12# 長さ＝２２，外径＝１０,L=22,OD=10 |
90250-10192 |
from US $0.99 |
||
|
11434B
|
11434B
90250-10192 Pin, Straight(For Timing Gear Cover Set)[08.1983 - 08.1987] 5MGEU,6MGEU,MPU,MTEU..MS12# 長さ＝２２，外径＝１０,L=22,OD=10 |
90250-10192 |
from US $0.99 |
||
|
11434C
|
11434C
90250-08112
Pin, Straight(For Timing Gear Case)
[08.1983 - 02.1984] 5MGEU,MPU,MTEU..MS12# 長さ＝１６，外径＝８,L=16,OD=8 |
90250-08112 |
— | ||
| replacement | |||||
|
11434C
|
11434C
90250-08120 Pin, Straight, No.1[08.1983 - 02.1984] 5MGEU,MPU,MTEU..MS12# 長さ＝１６，外径＝８,L=16,OD=8 |
90250-08120 |
from US $1.01 |
||
|
11434C
|
11434C
90250-08120 Pin, Straight, No.1[02.1984 - 08.1987] 5MGEU,6MGEU,MPU,MTEU..MS12# 長さ＝１８，外径＝８,L=18,OD=8 |
90250-08120 |
from US $1.01 |
||
|
11434D
|
11434D
90250-10192 Pin, Straight(For Timing Gear Cover Set)[08.1983 - 08.1987] 5MGEU,6MGEU,MPU,MTEU..MS12# 長さ＝２２，外径＝１０,L=22,OD=10 |
90250-10192 |
from US $0.99 |
||
|
11437
|
11437
11437-45010
Bush, Oil Pump Shaft Guide
[08.1983 - 08.1987] 5MGEU,6MGEU,MPU,MTEU..MS12# |
11437-45010 |
— | ||
|
11452
|
11452
11452-41020 Guide, Oil Level Gage[08.1983 - 08.1987] MPU..MS120 |
11452-41020 |
US $14.56 |
||
|
11494
|
11494
11494-41010 Plate, Oil Hole Cover[04.1984 - 08.1987] MPU..MS120 RR |
11494-41010 |
US $7.86 |
||
|
11494
|
11494
11494-45010
Plate, Oil Hole Cover
[08.1983 - 08.1987] 5MGEU,6MGEU,MPU..MS12# FR |
11494-45010 |
— | ||
|
11496
|
11496
15318-45011
Gasket, Oil Hole Cover Plate
[08.1983 - 08.1987] 5MGEU,6MGEU,MPU..MS12# FR |
15318-45011 |
— | ||
| replacement | |||||
|
11496
|
11496
15318-42011
Gasket, Oil Hole Cover Plate
[08.1983 - 08.1987] 5MGEU,6MGEU,MPU..MS12# FR |
15318-42011 |
— | ||
|
11496
|
11496
15473-41010
Gasket, Oil Hole Cover Plate
[04.1984 - 08.1987] MPU..MS120 RR |
15473-41010 |
— | ||
| replacement | |||||
|
11496
|
11496
15473-42010 Gasket, Turbo Oil Outlet, No.2[04.1984 - 08.1987] MPU..MS120 RR |
15473-42010 |
US $8.96 |
||
|
12101
|
12101
12101-42020 Pan Sub-Assy, Oil[08.1984 - 08.1987] 6MGEU,MPU,MTEU..MS12# |
12101-42020 |
US $477.57 |
||
|
12101
|
12101
12101-49265
Pan Sub-Assy, Oil
[08.1983 - 08.1984] 5MGEU,MPU..MS12# |
12101-49265 |
— | ||
| replacements | |||||
|
12101
|
12101
12101-45014 Pan Sub-Assy, Oil[08.1983 - 08.1984] 5MGEU,MPU..MS12# |
12101-45014 |
US $273.73 |
||
|
12101
|
12101
90341-14032 Plug, W/head Taper Screw, No.1[08.1983 - 08.1984] 5MGEU,MPU..MS12# |
90341-14032 |
US $2.61 |
||
|
12101
|
12101
90430-14235 Gasket, W/head Taper Screw Plug[08.1983 - 08.1984] 5MGEU,MPU..MS12# |
90430-14235 |
US $4.12 |
||
|
12101A
|
12101A
90341-18089
Plug(For Oil Pan Drain)
[08.1983 - 04.1985] 3YPU..YS120 *18-1.5PX12-10; 5MGEU,6MGEU,MPU,MTEU..MS12# *18-1.5PX12-10; 1G#..GS12# *18-1.5PX12-10; 2L,2LT#..LS12# *18-1.5PX12-10 |
90341-18089 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90033-41020 Plug(For Oil Pan Drain)[08.1983 - 04.1985] 3YPU..YS120 *18-1.5PX12-10; 5MGEU,6MGEU,MPU,MTEU..MS12# *18-1.5PX12-10; 1G#..GS12# *18-1.5PX12-10; 2L,2LT#..LS12# *18-1.5PX12-10 |
90033-41020 |
from US $2.18 |
||
|
12101B
|
12101B
90430-18013
Gasket(For Oil Pan Drain Plug)
[03.1986 - 08.1987] 6MGEU,MPU..MS12# ID=18 |
90430-18013 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-18023 Gasket(For Oil Pan)[03.1986 - 08.1987] 6MGEU,MPU..MS12# ID=18 |
90430-18023 |
from US $1.03 |
||
|
12101B
|
12101B
90430-18244
Gasket(For Oil Pan Drain Plug)
[08.1983 - 11.1984] 3YPU..YS120 ID=18; 5MGEU,6MGEU,MPU,MTEU..MS12# ID=18; 1G#..GS12# ID=18; 2L,2LT#..LS12# ID=18 |
90430-18244 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-18023 Gasket(For Oil Pan)[08.1983 - 11.1984] 3YPU..YS120 ID=18; 5MGEU,6MGEU,MPU,MTEU..MS12# ID=18; 1G#..GS12# ID=18; 2L,2LT#..LS12# ID=18 |
90430-18023 |
from US $1.03 |
||
|
12101E
|
12101E
90341-12004 Plug, Oil Pan(For Oil Cooler)[08.1984 - 12.1985] 6MGEU,MPU..MS12# |
90341-12004 |
US $2.51 |
||
|
12101E
|
12101E
90341-12012 Plug(For Oil Pan Drain)[12.1985 - 08.1987] 6MGEU,MPU..MS12# |
90341-12012 |
from US $2.87 |
||
| replacement | |||||
|
12101E
|
12101E
90341-T0004 Plug(For Oil Pan Drain)[12.1985 - 08.1987] 6MGEU,MPU..MS12# |
90341-T0004 |
US $3.59 |
||
|
12101F
|
12101F
90430-12009 Gasket(For Oil Pan Drain Plug)[08.1984 - 12.1985] 6MGEU,MPU..MS12# |
90430-12009 |
US $2.33 |
||
|
12101F
|
12101F
90430-12018
Gasket(For Oil Cooler)
[12.1985 - 08.1987] 6MGEU,MPU..MS12# |
90430-12018 |
— | ||
| replacement | |||||
|
12101F
|
12101F
90430-12031 Gasket (For Oil Pan Drain Plug)[12.1985 - 08.1987] 6MGEU,MPU..MS12# |
90430-12031 |
from US $0.84 |
||
|
15301
|
15301
15301-43030
Gage Sub-Assy, Oil Level
[08.1984 - 08.1987] MPU..MS120 |
15301-43030 |
— | ||
|
15301
|
15301
15301-45010 Gage Sub-Assy, Oil Level[08.1983 - 08.1984] MPU..MS120 |
15301-45010 |
US $13.54 |
||
|
9011908334
|
9011908334
90119-08334
New Genuine Part
|
90119-08334 |
— | ||
| replacement | |||||
|
9011908334
|
9011908334
90119-08378 New Genuine Part |
90119-08378 |
US $2.33 |
||
|
9017908012
|
9017908012
90179-08012 NUT |
90179-08012 |
from US $2.03 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9212240818
|
9212240818
92122-40818 Bolt, Stud(For Oil Pan) |
92122-40818 |
US $2.18 |
||
