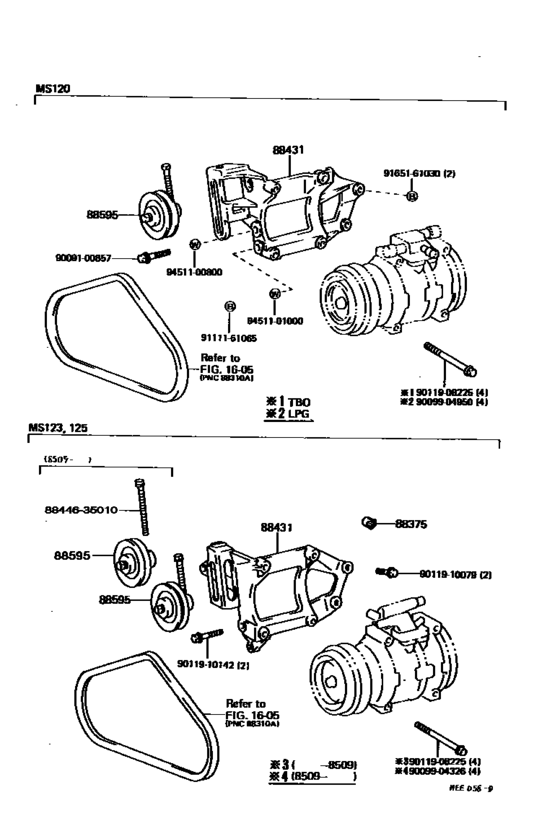

Heating & Air Conditioning - Compressor ([08.1983 - ] (8308- )MS12#) Diagram Toyota CROWN/ MAJESTA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- MS120
- grade
- SDX
- body
- SED
- ENGINE
- MPU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1983
- To
- 08.1987
- Gear Shift Type
- 4FC
- Fuel Induction
- LPG
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88431
|
88431
88431-24030
Bracket, Compressor Mounting, No.1
[08.1983 - 08.1987] MS120..LPG |
88431-24030 |
— | ||
|
88595
|
88595
88440-30250 Pulley Assy, Idle[08.1983 - 09.1985] MS12# |
88440-30250 |
US $78.62 |
||
| replacement | |||||
|
88595
|
88595
88440-28050
Pulley, Cooler Compressor Idle
[08.1983 - 09.1985] MS12# |
88440-28050 |
— | ||
|
8844635010
|
8844635010
88446-35010 Bolt, Idle Pulley |
88446-35010 |
from US $3.32 |
||
|
9009100857
|
9009100857
90091-00857
New Genuine Part
|
90091-00857 |
— | ||
|
9009904326
|
9009904326
90099-04326
New Genuine Part
|
90099-04326 |
— | ||
| replacement | |||||
|
9009904326
|
9009904326
90119-08C30 New Genuine Part |
90119-08C30 |
from US $0.89 |
||
|
9009904950
|
9009904950
90099-04950 BOLT |
90099-04950 |
from US $1.89 |
||
|
9011908225
|
9011908225
90119-08225
BOLT
|
90119-08225 |
— | ||
|
9011910079
|
9011910079
90119-10079 Bolt(For Front Suspension Lower Arm No.1 Rh) |
90119-10079 |
US $4.30 |
||
|
9011910142
|
9011910142
90119-10142
New Genuine Part
|
90119-10142 |
— | ||
|
9111161065
|
9111161065
91111-61065
New Genuine Part
|
91111-61065 |
— | ||
|
9165161030
|
9165161030
91651-61030 Bolt (For Transfer Case) |
91651-61030 |
from US $1.42 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.97 |
||
