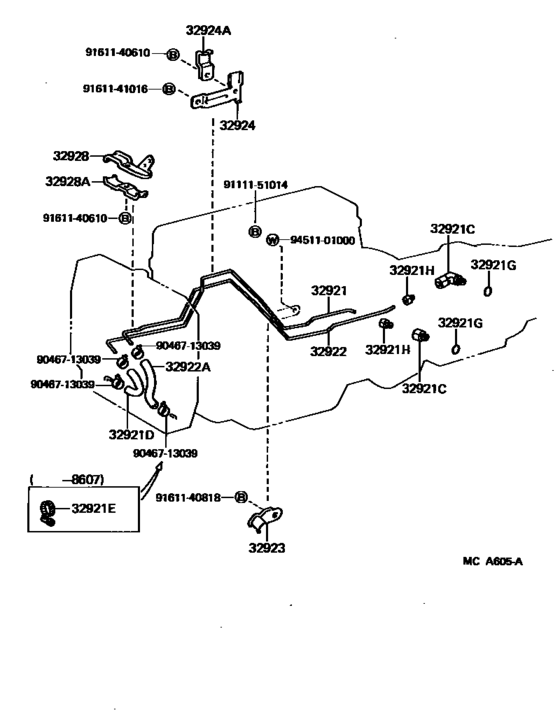

Oil Cooler & Tube (Atm) ([08.1983 - ] (8308- )MS120,123..ATM..LPG,TWC) Diagram Toyota CROWN/ MAJESTA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- MS120
- grade
- SDX
- body
- SED
- ENGINE
- MPU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1983
- To
- 08.1987
- Gear Shift Type
- 4FC
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32921
|
32921
32921-30270 Tube, Oil Cooler Inlet, No.1[08.1983 - 07.1986] MS120,123..ATM..(LPG,TWC) |
32921-30270 |
US $30.14 |
||
|
32921
|
32921
32921-30370 Tube, Oil Cooler Inlet, No.1[07.1986 - 08.1987] MS120..ATM |
32921-30370 |
US $25.63 |
||
|
32921C
|
32921C
90404-14007 Union(For Oil Cooler Tube)[08.1983 - 08.1987] GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) INLET |
90404-14007 |
US $5.23 |
||
|
32921C
|
32921C
90407-14003 Union(For Oil Cooler Tube)[08.1983 - 08.1987] GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) OUTLET |
90407-14003 |
US $17.11 |
||
|
32921D
|
32921D
32941-22020 Hose(For Oil Cooler Inlet)[08.1983 - 07.1986] MS120,123..ATM |
32941-22020 |
US $25.33 |
||
|
32921D
|
32921D
32941-30070 Hose(For Oil Cooler Inlet)[07.1986 - 08.1987] MS120..ATM |
32941-30070 |
US $25.33 |
||
| replacement | |||||
|
32921D
|
32921D
32941-30071 Hose(For Oil Cooler Outlet)[07.1986 - 08.1987] MS120..ATM |
32941-30071 |
US $24.90 |
||
|
32921E
|
32921E
90460-14085
Clamp, Hose(For Oil Cooler)
[08.1983 - 07.1986] GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
90460-14085 |
— | ||
| replacement | |||||
|
32921E
|
32921E
90460-20004 Clamp, Hose(For Oil Cooler)[08.1983 - 07.1986] GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
90460-20004 |
US $3.14 |
||
|
32921G
|
32921G
90301-10189 Ring, O(For Oil Cooler Tube Union)[08.1983 - 08.1987] GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
90301-10189 |
from US $2.63 |
||
|
32921H
|
32921H
90402-14004 Nut, Union(For Oil Cooler Tube)[08.1983 - 08.1987] GS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC) |
90402-14004 |
US $3.32 |
||
|
32922
|
32922
32922-30270 Tube, Oil Cooler Outlet, No.1[08.1983 - 07.1986] MS120,123..ATM..(LPG,TWC) |
32922-30270 |
US $32.32 |
||
|
32922
|
32922
32922-30370 Tube, Oil Cooler Outlet, No.1[07.1986 - 08.1987] MS120 |
32922-30370 |
US $29.70 |
||
|
32922A
|
32922A
32942-22010 Hose(For Oil Cooler Inlet)[08.1983 - 07.1986] MS120,123..ATM |
32942-22010 |
US $21.11 |
||
|
32922A
|
32922A
32942-22060 Hose(For Oil Cooler Inlet)[07.1986 - 08.1987] MS120..ATM |
32942-22060 |
US $25.63 |
||
| replacement | |||||
|
32922A
|
32922A
32942-22061 Hose(For Oil Cooler Outlet)[07.1986 - 08.1987] MS120..ATM |
32942-22061 |
US $25.19 |
||
|
32923
|
32923
32923-30080 Clamp, Automatic Transmission Oil Cooler Tube[08.1983 - 08.1987] GS120,121,MS120,123..ATM..(EFI,LPG,TWC) |
32923-30080 |
US $4.22 |
||
|
32924
|
32924
32924-22040 Clamp, Oil Cooler Tube, No.2[08.1983 - 08.1987] MS120,123..ATM |
32924-22040 |
US $18.64 |
||
|
32924A
|
32924A
32929-30060 Clamp, Automatic Transmission Oil Cooler Tube[08.1983 - 08.1987] MS120,123..ATM |
32929-30060 |
US $7.28 |
||
|
32928
|
32928
15781-45012 Clamp, Flexible Hose, No.1[08.1983 - 08.1987] MS120,123..ATM |
15781-45012 |
US $8.01 |
||
|
32928A
|
32928A
90461-12028 Clamp(For Flexible Hose Clamp)[08.1983 - 08.1987] MS120,123..ATM |
90461-12028 |
US $4.22 |
||
|
9046713039
|
9046713039
90467-13039
Clamp, Hose
|
90467-13039 |
— | ||
| replacement | |||||
|
9046713039
|
9046713039
96135-51300 Clamp, Hose |
96135-51300 |
from US $2.13 |
||
|
9111151014
|
9111151014
91111-51014
New Genuine Part
|
91111-51014 |
— | ||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.80 |
||
|
9161140818
|
9161140818
91611-40818
Bolt(for Oil Receiver Pipe)
|
91611-40818 |
— | ||
| replacement | |||||
|
9161140818
|
9161140818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.79 |
||
|
9161141016
|
9161141016
91611-41016 Bolt(for Dust Cover To Steering Knuckle Arm Setting) |
91611-41016 |
US $2.91 |
||
| replacement | |||||
|
9161141016
|
9161141016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.51 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.97 |
||
