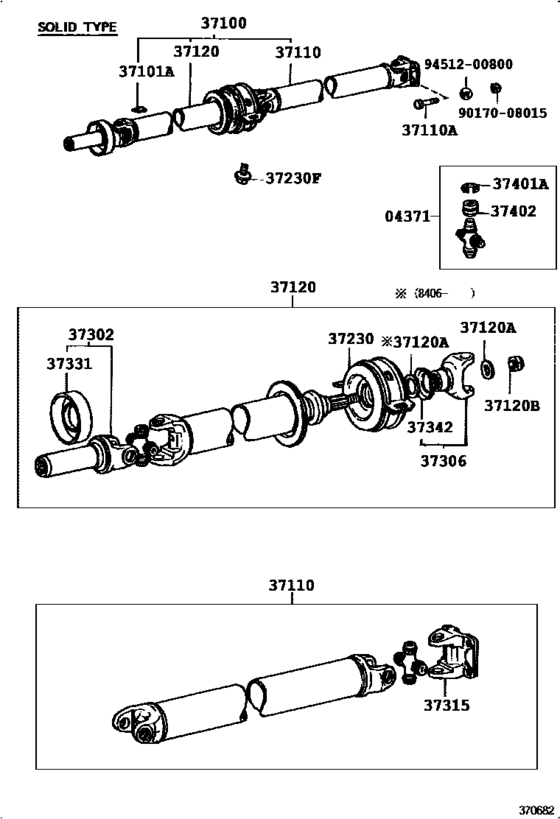

Propeller Shaft & Universal Joint ([08.1983 - ] (8308-8412)GS120..4H..DLX ; (8308- )YS120..5F ; (8308- )LS120..4H..STD ; (830 8- )MS120,YS12 0..DLX,SDX) Diagram Toyota CROWN/ MAJESTA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- MS120
- grade
- SDX
- body
- SED
- ENGINE
- MPU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1983
- To
- 08.1987
- Gear Shift Type
- 4FC
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04371
|
04371
04371-22010 Spider Kit, Universal Joint(For Propeller Shaft)[08.1983 - 08.1987] MS120,YS120..LPG |
04371-22010 |
from US $38.94 |
||
|
37100
|
37100
37100-30160 Shaft Assy, Propeller W/center Bearing[08.1983 - 08.1987] MS120..ATM..LPG |
37100-30160 |
US $1,323.50 |
||
|
37101A
|
37101A
90937-01132 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 １０Ｇ，長さ＝２０．７,10G |
90937-01132 |
US $3.94 |
||
|
37101A
|
37101A
90937-01136 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] GS12#,LS12#,MS12#,YS120 ２０Ｇ，長さ＝４１．４,20G |
90937-01136 |
US $3.20 |
||
|
37101A
|
37101A
90937-01140 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] GS12#,LS12#,MS12#,YS120 ３０Ｇ，長さ＝６２．２,30G |
90937-01140 |
US $3.49 |
||
|
37101A
|
37101A
90937-01147 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 ２Ｇ，厚さ＝２．０,2G |
90937-01147 |
US $2.04 |
||
|
37101A
|
37101A
90937-01148 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 ４Ｇ，厚さ＝２．０,4G |
90937-01148 |
US $2.51 |
||
|
37101A
|
37101A
90937-01149 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 ６Ｇ，長さ＝１２．４,6G |
90937-01149 |
US $2.51 |
||
|
37101A
|
37101A
90937-01150 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 ８Ｇ，長さ＝１６．６,8G |
90937-01150 |
US $2.51 |
||
|
37101A
|
37101A
90937-01151 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 １２Ｇ，長さ＝２４．９,12G |
90937-01151 |
US $2.69 |
||
|
37101A
|
37101A
90937-01152 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 １４Ｇ，長さ＝２９．０,14G |
90937-01152 |
US $2.51 |
||
|
37101A
|
37101A
90937-01153 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] GS12#,LS12#,MS12#,YS120 １６Ｇ，長さ＝３３．２,16G |
90937-01153 |
US $1.31 |
||
|
37101A
|
37101A
90937-01154 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] GS12#,LS12#,MS12#,YS120 １８Ｇ，長さ＝３７．３,18G |
90937-01154 |
US $1.75 |
||
|
37101A
|
37101A
90937-01155 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] GS12#,LS12#,MS12#,YS120 ２２Ｇ，長さ＝４５．６,22G |
90937-01155 |
US $1.75 |
||
|
37101A
|
37101A
90937-01156 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] GS12#,LS12#,MS12#,YS120 ２４Ｇ，長さ＝４９．７,24G |
90937-01156 |
US $1.75 |
||
|
37101A
|
37101A
90937-01157 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] GS12#,LS12#,MS12#,YS120 ２６Ｇ，長さ＝５３．９,26G |
90937-01157 |
US $1.75 |
||
|
37101A
|
37101A
90937-01158 Piece, Balance, No.1 (For Propeller Shaft)[08.1983 - 08.1986] GS12#,LS12#,MS12#,YS120 ２８Ｇ，長さ＝５８．１,28G |
90937-01158 |
US $1.75 |
||
|
37110
|
37110
37110-30080 Shaft Assy, Propeller[08.1983 - 08.1987] YS120..5F;MS120,YS120..DLX,SDX |
37110-30080 |
US $595.50 |
||
|
37110A
|
37110A
90101-08082 Bolt, No.1 (For Propeller Shaft & Differential Setting)[08.1983 - 08.1987] GS12#,LS12#,MS120,123,YS120..DSL,EFI,LPG,TBO,TD,TDE,TWC ＊８−１．２５ＰＸ２５−１２ |
90101-08082 |
from US $1.01 |
||
|
37120
|
37120
37120-30160 Shaft Assy, Propeller Intermediate[08.1983 - 08.1987] MS120..ATM..LPG |
37120-30160 |
US $739.65 |
||
|
37120A
|
37120A
90201-18182 Washer, Plate (For Propeller Intermediate Shaft Set)[08.1983 - 08.1987] YS120..5F;YS120..DLX;GS12#,LS12#,MS12# 外径＝３３．５，厚さ＝４．０,OD=33.5,T=4 |
90201-18182 |
from US $3.23 |
||
|
37120A
|
37120A
90201-26005 Washer, Plate (For Propeller Intermediate Shaft Set)[06.1984 - 08.1987] YS120..5F;YS120..DLX;GS12#,LS12#,MS12# 外径＝３６．６，厚さ＝０．８,OD=36.6,T=0.8 |
90201-26005 |
from US $3.05 |
||
|
37120B
|
37120B
90179-18009 Nut (For Propeller Intermediate Shaft Setting)[06.1984 - 08.1987] YS120..5F;YS120..DLX;GS12#,LS12#,MS12# |
90179-18009 |
from US $1.62 |
||
|
37120B
|
37120B
90179-18060
Nut (For Propeller Intermediate Shaft Setting)
[08.1983 - 06.1984] YS120..5F;YS120..DLX;GS12#,LS12#,MS12# |
90179-18060 |
— | ||
| replacement | |||||
|
37120B
|
37120B
90179-18001 Nut (For Transfer Gear)[08.1983 - 06.1984] YS120..5F;YS120..DLX;GS12#,LS12#,MS12# |
90179-18001 |
from US $4.48 |
||
|
37230
|
37230
37230-30040
Bearing Assy, Center Support, No.1
[08.1983 - 08.1987] YS120..5F;YS120..DLX;GS12#,LS12#,MS12# SOLID TYPE |
37230-30040 |
— | ||
|
37230F
|
37230F
90119-10046 Bolt, No.1 (For Center Support Bearing)[08.1983 - 08.1987] YS120..5F;YS120..DLX;GS12#,LS12#,MS12# |
90119-10046 |
US $2.15 |
||
|
37302
|
37302
37302-20040 Yoke Sub-Assy, Universal Joint Sleeve[08.1983 - 08.1987] MS120,YS120..LPG |
37302-20040 |
US $115.32 |
||
|
37306
|
37306
37306-20010 Yoke Sub-Assy, Universal Joint, Center[08.1983 - 06.1984] YS120..5F;MS120,YS120..DLX,SDX; GS120..4H..DLX;LS120..4H..STD TAXI SPEC |
37306-20010 |
US $80.08 |
||
| replacement | |||||
|
37306
|
37306
37306-20H00 Yoke Sub-Assy, Universal Joint, Center[08.1983 - 06.1984] YS120..5F;MS120,YS120..DLX,SDX; GS120..4H..DLX;LS120..4H..STD TAXI SPEC |
37306-20H00 |
US $90.27 |
||
|
37306
|
37306
37306-20011 Yoke Sub-Assy, Universal Joint, Center[06.1984 - 08.1987] YS120..5F;MS120,YS120..DLX,SDX |
37306-20011 |
US $80.08 |
||
|
37315
|
37315
37315-20020 Yoke, Universal Joint Flange[08.1983 - 08.1987] MS120,YS120..LPG |
37315-20020 |
US $49.97 |
||
|
37331
|
37331
37331-30010 Cover, Sliding Shaft Dust[08.1983 - 08.1987] GS12#,LS12#,MS120,123,YS120..DSL,EFI,LPG,TBO,TD,TDE,TWC |
37331-30010 |
US $7.71 |
||
|
37342
|
37342
37342-30010 Deflector, Propeller Shaft Dust, No.2[08.1983 - 08.1987] YS120..5F;MS120,YS120..DLX,SDX |
37342-30010 |
US $6.84 |
||
|
37401A
|
37401A
90521-29070 Ring, Hole Snap (For Spider Bearing)[08.1983 - 08.1987] MS120,YS120..LPG 厚さ＝２．３７５−２．４２５,T=2.40 |
90521-29070 |
US $3.06 |
||
|
37401A
|
37401A
90521-29071 Ring, Hole Snap (For Spider Bearing)[08.1983 - 08.1987] MS120,YS120..LPG 厚さ＝２．４２５−２．４７５,T=2.45 |
90521-29071 |
US $3.06 |
||
|
37401A
|
37401A
90521-29072 Ring, Hole Snap (For Spider Bearing)[08.1983 - 08.1987] MS120,YS120..LPG 厚さ＝２．４７５−２．５２５,T=2.50 |
90521-29072 |
US $3.06 |
||
|
37401A
|
37401A
90521-29073 Ring, Hole Snap (For Spider Bearing)[08.1983 - 08.1987] MS120,YS120..LPG 厚さ＝２．５２５−２．５７５,T=2.55 |
90521-29073 |
US $3.06 |
||
|
37402
|
37402
37402-22020
Bearing Sub-Assy, Universal Joint Spider
[08.1983 - 08.1987] MS120,YS120..LPG RED PAINTED |
37402-22020 |
— | ||
|
9017008015
|
9017008015
90170-08015 Nut, No.1 (For Propeller Shaft & Differential Setting) |
90170-08015 |
from US $0.76 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
