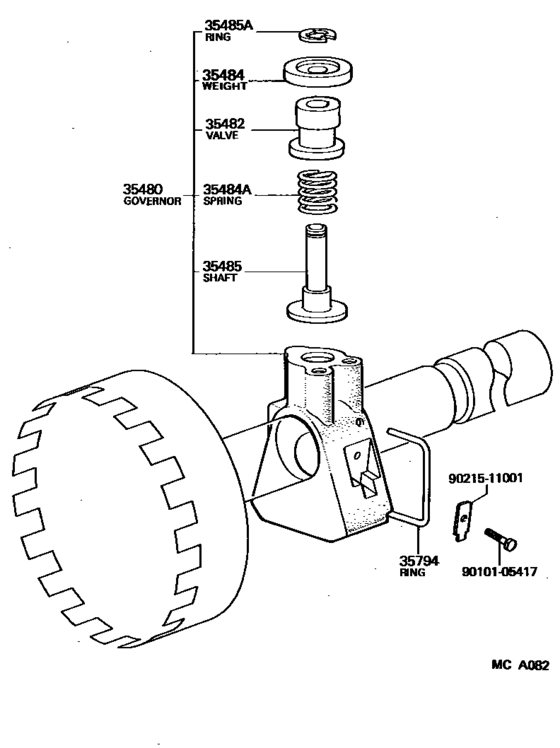

Rear Oil Pump & Governor (Atm) ([08.1983 - ] (8308- )ATM..DSL,EFI,LPG,TDE) Diagram Toyota CROWN/ MAJESTA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- MS120
- grade
- SDX
- body
- SED
- ENGINE
- MPU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1983
- To
- 08.1987
- Gear Shift Type
- 4FC
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35480
|
35480
35480-30060
Governor
[08.1983 - 08.1987] GS120,MS120..ATM..(EFI,LPG) |
35480-30060 |
— | ||
|
35482
|
35482
35482-22010 Valve, Governor[08.1983 - 08.1987] GS120,MS120..ATM..(EFI,LPG) |
35482-22010 |
US $26.21 |
||
|
35484
|
35484
35484-22010 Weight, Governor, Outer[08.1983 - 08.1987] GS120,MS120..ATM..(EFI,LPG) |
35484-22010 |
US $10.05 |
||
|
35484A
|
35484A
90501-09673 Spring, Compression (For Governor Weight)[08.1983 - 08.1987] GS120,MS120..ATM..(EFI,LPG) |
90501-09673 |
US $2.62 |
||
|
35485
|
35485
35485-22010 Shaft, Governor Valve[08.1983 - 08.1987] GS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE) |
35485-22010 |
US $16.45 |
||
|
35485A
|
35485A
90523-05020 Ring, E (For Governor Valve Shaft)[08.1983 - 08.1987] GS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE) |
90523-05020 |
US $2.48 |
||
|
35794
|
35794
35794-22010 Ring, Governor Retaining[08.1983 - 08.1987] GS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE) |
35794-22010 |
US $7.43 |
||
|
9010105417
|
9010105417
90101-05417 Bolt (For Pressure Regulator Valve No.2) |
90101-05417 |
US $1.75 |
||
| replacement | |||||
|
9010105417
|
9010105417
90105-05014 Bolt (For Pressure Regulator Valve No.2) |
90105-05014 |
US $1.60 |
||
|
9021511001
|
9021511001
90215-11001 New Genuine Part |
90215-11001 |
US $1.60 |
||
