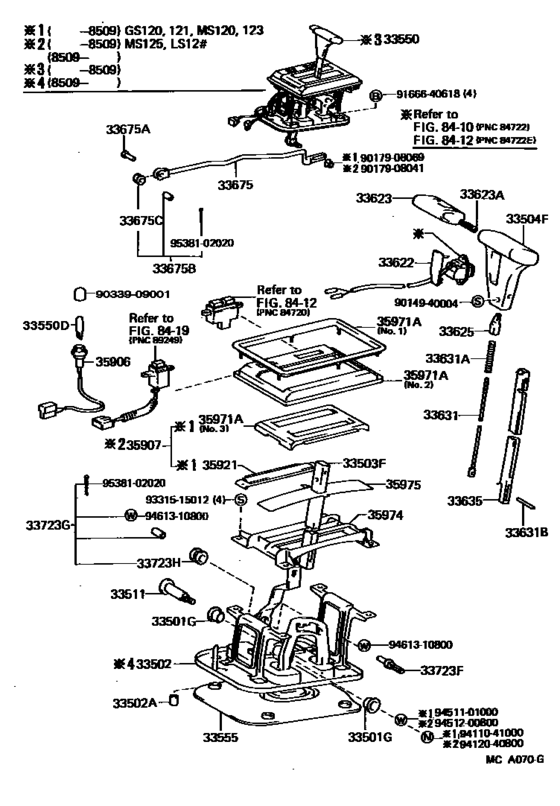

Shift Lever & Retainer ([08.1983 - ] (8308- )4FC) Diagram Toyota CROWN/ MAJESTA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- MS120
- grade
- SDX
- body
- SED
- ENGINE
- MPU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1983
- To
- 08.1987
- Gear Shift Type
- 4FC
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33501G
|
33501G
90385-11003 Bush(For Control Shaft)[08.1983 - 08.1987] GS120,121,LS12#,MS12#..4FC |
90385-11003 |
from US $1.21 |
||
|
33502
|
33502
33502-30142 Plate Sub-Assy, Shift Lever[09.1985 - 08.1987] GS120,121,LS12#,MS12#..4FC |
33502-30142 |
US $54.89 |
||
|
33502A
|
33502A
90387-06065 Collar (For Floor Shift Setting)[08.1983 - 08.1987] GS120,121,LS12#,MS12#..4FC 外径＝８．８ |
90387-06065 |
US $3.23 |
||
|
33503F
|
33503F
33503-30120 Lever Sub-Assy, Shift(For Floor Shift)[08.1983 - 01.1985] GS120,121,LS12#,MS12#..4FC |
33503-30120 |
US $36.55 |
||
|
33503F
|
33503F
33503-30121 Lever Sub-Assy, Shift(For Floor Shift)[01.1985 - 08.1987] GS120,121,LS12#,MS12#..4FC |
33503-30121 |
US $68.43 |
||
|
33504F
|
33504F
33542-30130-04 Knob Sub-Assy, Shift Lever[08.1983 - 04.1986] GS120,121,LS12#,MS12#..4FC BLUE,BLUE,TRIM8# |
33542-30130-04 |
US $63.92 |
||
| replacement | |||||
|
33504F
|
33504F
33542-30130-11
Knob Sub-Assy, Shift Lever
[08.1983 - 04.1986] GS120,121,LS12#,MS12#..4FC BLUE,BLUE,TRIM8# |
33542-30130-11 |
— | ||
|
33504F
|
33504F
33542-30130-14
Knob Sub-Assy, Shift Lever
[04.1986 - 08.1987] GS120,121,LS12#,MS12#..4FC BLUE,BLUE,TRIM8# |
33542-30130-14 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33542-30130-11
Knob Sub-Assy, Shift Lever
[04.1986 - 08.1987] GS120,121,LS12#,MS12#..4FC BLUE,BLUE,TRIM8# |
33542-30130-11 |
— | ||
|
33511
|
33511
33511-30340 Shaft, Control (For Floor Shift)[08.1983 - 01.1985] GS120,121,LS12#,MS12#..4FC |
33511-30340 |
US $7.28 |
||
|
33511
|
33511
33511-30341 Shaft, Control (For Floor Shift)[01.1985 - 08.1987] GS120,121,LS12#,MS12#..4FC |
33511-30341 |
US $7.72 |
||
|
33550
|
33550
33550-30110-04 Floor Shift Assy, Transmission[08.1983 - 01.1985] GS120,LS12#,MS120..4FC..(DSL,EFI,LPG,TDE) BLUE,BLUE,TRIM8# |
33550-30110-04 |
US $722.18 |
||
| replacement | |||||
|
33550
|
33550
33550-30111-04 Floor Shift Assy, Transmission[08.1983 - 01.1985] GS120,LS12#,MS120..4FC..(DSL,EFI,LPG,TDE) BLUE,BLUE,TRIM8# |
33550-30111-04 |
US $722.18 |
||
|
33550
|
33550
33550-30111-04 Floor Shift Assy, Transmission[01.1985 - 09.1985] GS120,LS12#,MS120..4FC..(DSL,EFI,LPG,TDE) BLUE,BLUE,TRIM8# |
33550-30111-04 |
US $722.18 |
||
|
33550D
|
33550D
99132-12034 Bulb, Position Indicator Lamp[08.1983 - 08.1987] GS120,121,LS12#,MS12#..4FC １２Ｖ ３．４Ｗ,12V 3.4W |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
33550D
|
33550D
00234-00158 Bulb, Position Indicator Lamp[08.1983 - 08.1987] GS120,121,LS12#,MS12#..4FC １２Ｖ ３．４Ｗ,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
33555
|
33555
33555-30150 Boot, Shift Lever[08.1983 - 08.1987] GS120,121,LS12#,MS12#..4FC |
33555-30150 |
US $53.14 |
||
|
33622
|
33622
33622-30040-04 Cover, Shift Lever Knob, No.1[08.1983 - 04.1986] GS120,121,LS12#,MS12#..4FC BLUE,BLUE,TRIM8# |
33622-30040-04 |
US $10.48 |
||
| replacement | |||||
|
33622
|
33622
33622-30040-11 Cover, Shift Lever Knob, No.1[08.1983 - 04.1986] GS120,121,LS12#,MS12#..4FC BLUE,BLUE,TRIM8# |
33622-30040-11 |
US $10.48 |
||
|
33622
|
33622
33622-30040-14
Cover, Shift Lever Knob, No.1
[04.1986 - 08.1987] GS120,121,LS12#,MS12#..4FC BLUE,BLUE,TRIM8# |
33622-30040-14 |
— | ||
| replacement | |||||
|
33622
|
33622
33622-30040-11 Cover, Shift Lever Knob, No.1[04.1986 - 08.1987] GS120,121,LS12#,MS12#..4FC BLUE,BLUE,TRIM8# |
33622-30040-11 |
US $10.48 |
||
|
33623
|
33623
33623-30050-04 Button, Shift Lever Knob[08.1983 - 04.1986] GS120,121,LS12#,MS12#..4FC BLUE,BLUE,TRIM8# |
33623-30050-04 |
US $19.22 |
||
| replacement | |||||
|
33623
|
33623
33623-30050-11 Button, Shift Lever Knob[08.1983 - 04.1986] GS120,121,LS12#,MS12#..4FC BLUE,BLUE,TRIM8# |
33623-30050-11 |
US $19.22 |
||
|
33623
|
33623
33623-30050-14
Button, Shift Lever Knob
[04.1986 - 08.1987] GS120,121,LS12#,MS12#..4FC BLUE,BLUE,TRIM8# |
33623-30050-14 |
— | ||
| replacement | |||||
|
33623
|
33623
33623-30050-11 Button, Shift Lever Knob[04.1986 - 08.1987] GS120,121,LS12#,MS12#..4FC BLUE,BLUE,TRIM8# |
33623-30050-11 |
US $19.22 |
||
|
33623A
|
33623A
90501-07009 Spring, Compression (For Shift Lever Knob)[08.1983 - 08.1987] GS120,121,LS12#,MS12#..4FC |
90501-07009 |
from US $4.49 |
||
|
33625
|
33625
33625-32010 Sleeve, Shift Lever Knob[08.1983 - 08.1987] GS120,121,LS12#,MS12#..4FC |
33625-32010 |
US $10.05 |
||
|
33631
|
33631
33631-30060 Rod, Detent[08.1983 - 08.1987] GS120,121,LS12#,MS12#..4FC |
33631-30060 |
US $13.25 |
||
|
33631A
|
33631A
90501-08017 Spring, Compression (For Shift Lever Knob Button)[08.1983 - 08.1987] GS120,121,LS12#,MS12#..4FC |
90501-08017 |
US $4.95 |
||
|
33631B
|
33631B
90256-04003 Pin, Slotted Spring (For Detent Rod)[08.1983 - 08.1987] GS120,121,LS12#,MS12#..4FC |
90256-04003 |
US $2.97 |
||
|
33635
|
33635
33635-30020 Guide, Wire (For Shift Lever)[08.1983 - 08.1987] GS120,121,LS12#,MS12#..4FC |
33635-30020 |
US $8.74 |
||
|
33675
|
33675
33702-30090 Rod, Transmission Control (For Floor Shift)[08.1983 - 08.1987] GS121..4FC..TWC; GS120,MS120,123..4FC |
33702-30090 |
US $22.57 |
||
|
33675A
|
33675A
90240-08120 Pin, W/hole (For Transmission Control Rod)[08.1983 - 08.1987] GS120,121,LS12#,MS12#..4FC |
90240-08120 |
US $1.93 |
||
|
33675B
|
33675B
90999-99017 Bush (For Transmission Control Rod)[08.1983 - 08.1987] GS120,121,LS12#,MS12#..4FC |
90999-99017 |
from US $3.10 |
||
|
33675C
|
33675C
90480-17177 Grommet (For Transmission Control Rod)[08.1983 - 08.1987] GS120,121,LS12#,MS12#..4FC |
90480-17177 |
from US $2.07 |
||
|
33723F
|
33723F
33723-30060 Swivel, Connecting Rod (For Floor Shift)[08.1983 - 08.1987] GS120,121,LS12#,MS12#..4FC |
33723-30060 |
US $8.74 |
||
|
33723G
|
33723G
90999-99017 Bush (For Transmission Control Rod)[08.1983 - 08.1987] GS120,121,LS12#,MS12#..4FC |
90999-99017 |
from US $3.10 |
||
|
33723H
|
33723H
90480-17177 Grommet (For Transmission Control Rod)[08.1983 - 08.1987] GS120,121,LS12#,MS12#..4FC |
90480-17177 |
from US $2.07 |
||
|
35906
|
35906
35906-32010 Wire Sub-Assy, Indicator Lamp[08.1983 - 08.1987] GS120,121,LS12#,MS12#..4FC |
35906-32010 |
US $14.41 |
||
| replacement | |||||
|
35906
|
35906
35906-32030 Wire Sub-Assy, Indicator Lamp[08.1983 - 08.1987] GS120,121,LS12#,MS12#..4FC |
35906-32030 |
US $15.29 |
||
|
35907
|
35907
35907-30231 Housing Sub-Assy, Position Indicator (For Floor Shift)[01.1985 - 08.1987] GS120,LS12#,MS120..4FC..(DSL,EFI,LPG,TDE) |
35907-30231 |
US $39.31 |
||
|
35921
|
35921
35921-30290 Plate, Control Position Indicator[08.1983 - 01.1985] GS120,LS12#,MS120..4FC..(DSL,EFI,LPG,TDE) |
35921-30290 |
US $28.25 |
||
|
35971A
|
35971A
35971-30130 Housing, Position Indicator, Upper[08.1983 - 01.1985] GS120,LS12#,MS120..4FC..(DSL,EFI,LPG,TDE) NO.2 |
35971-30130 |
US $16.74 |
||
|
35971A
|
35971A
35971-30131
Housing, Position Indicator, Upper
[01.1985 - 08.1987] GS120,LS12#,MS120..4FC..(DSL,EFI,LPG,TDE) NO.2 |
35971-30131 |
— | ||
|
35971A
|
35971A
35971-30140 Housing, Position Indicator, Upper[08.1983 - 01.1985] GS120,121,LS12#,MS12#..4FC NO.3 |
35971-30140 |
US $12.23 |
||
|
35971A
|
35971A
35971-30150-04 Housing, Position Indicator, Upper[08.1983 - 01.1985] GS120,121,LS12#,MS12#..4FC NO.1,BLUE,BLUE,TRIM8# |
35971-30150-04 |
US $10.34 |
||
| replacement | |||||
|
35971A
|
35971A
35973-30020-04 Housing, Position Indicator, Upper[08.1983 - 01.1985] GS120,121,LS12#,MS12#..4FC NO.1,BLUE,BLUE,TRIM8# |
35973-30020-04 |
US $10.34 |
||
|
35971A
|
35971A
35973-30020-04 Housing, Position Indicator, Upper[01.1985 - 09.1985] GS120,121,LS12#,MS12#..4FC NO.1,BLUE,BLUE,TRIM8# |
35973-30020-04 |
US $10.34 |
||
|
35971A
|
35971A
35973-30021
Housing, Position Indicator, Upper
[09.1985 - 08.1987] GS120,121,LS12#,MS12#..4FC NO.1 |
35973-30021 |
— | ||
|
35974
|
35974
35974-30050 Housing, Position Indicator, Lower[08.1983 - 01.1985] GS120,121,LS12#,MS12#..4FC |
35974-30050 |
US $31.89 |
||
|
35974
|
35974
35974-30051
Housing, Position Indicator, Lower
[01.1985 - 08.1987] GS120,121,LS12#,MS12#..4FC |
35974-30051 |
— | ||
|
35975
|
35975
35975-30080 Cover, Slide (For Position Indicator)[08.1983 - 01.1985] GS120,121,LS12#,MS12#..4FC |
35975-30080 |
US $19.22 |
||
|
35975
|
35975
35975-30081
Cover, Slide (For Position Indicator)
[01.1985 - 08.1987] GS120,121,LS12#,MS12#..4FC |
35975-30081 |
— | ||
|
9014940004
|
9014940004
90149-40004 Bolt Or Pin (For Shift Lever Knob Setting) |
90149-40004 |
US $1.49 |
||
|
9017908041
|
9017908041
90179-08041
NUT
|
90179-08041 |
— | ||
| replacement | |||||
|
9017908041
|
9017908041
90179-08017 NUT |
90179-08017 |
from US $0.78 |
||
|
9017908069
|
9017908069
90179-08069 New Genuine Part |
90179-08069 |
US $1.75 |
||
|
9033909001
|
9033909001
90339-09001 Cap, Position Indicator Lamp |
90339-09001 |
US $2.15 |
||
|
9166640618
|
9166640618
91666-40618
New Genuine Part
|
91666-40618 |
— | ||
| replacement | |||||
|
9166640618
|
9166640618
91661-60616 BOLT |
91661-60616 |
from US $0.70 |
||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.76 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.97 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
|
9538102020
|
9538102020
95381-02020 PIN |
95381-02020 |
US $1.08 |
||
