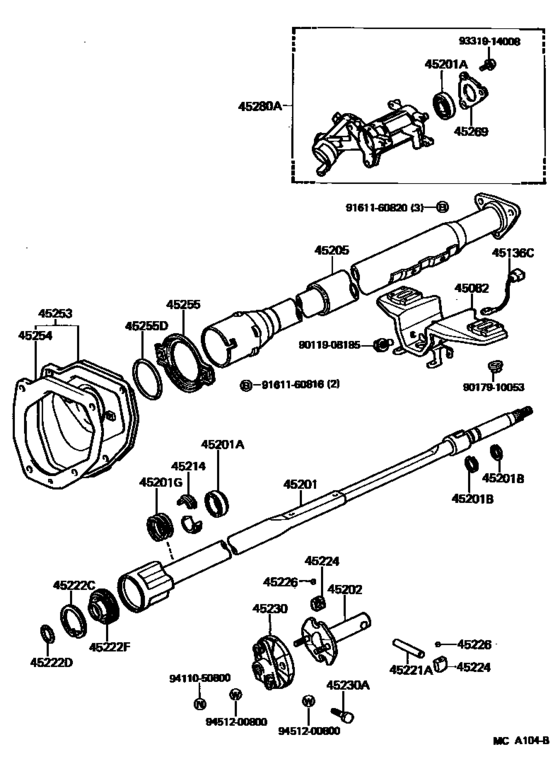

Steering Column & Shaft ([08.1983 - ] (8308- )WG..SDX ; (8308- )LS120..DLX,STD ; (8308- )GS120..4HC..SDX ; (8308 - )GS126,MS120 ,YS120 ; (8308- )GS120..4FC,5F..DLX,STD) Diagram Toyota CROWN/ MAJESTA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- MS120
- grade
- SDX
- body
- SED
- ENGINE
- MPU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1983
- To
- 08.1987
- Gear Shift Type
- 4FC
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45082
|
45082
45082-30050 Bracket Sub-Assy, Break Away W/capsule[08.1983 - 08.1987] LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H |
45082-30050 |
US $34.94 |
||
|
45201
|
45201
45210-30050 Shaft Sub-Assy, Steering Main[08.1983 - 08.1987] GS120,LS120..WG..SDX; LS120..DLX,STD;GS120..4HC..SDX;GS120..(4FC,5F)..(DLX,STD);GS126,LS126,MS120,YS120. .DSL,EFI,LPG;GS120,121,MS123,125..(4H,4HC)..(DLX,ROY,SAL,STD) |
45210-30050 |
US $88.82 |
||
|
45201A
|
45201A
90363-18038 Bearing(For Steering Main Shaft)[08.1983 - 08.1987] GS120,LS120..WG..SDX UPR; LS120..DLX,STD;GS120..4HC..SDX;GS120..(4FC,5F)..(DLX,STD);GS126,LS126,MS120,YS120. .DSL,EFI,LPG;GS120,121,MS123,125..(4H,4HC)..(DLX,ROY,SAL,STD) UPR |
90363-18038 |
from US $6.69 |
||
|
45201A
|
45201A
90369-43004
Bearing(For Steering Main Shaft)
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 LWR |
90369-43004 |
— | ||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[08.1983 - 08.1987] GS120,LS120..WG..SDX 厚さ＝１．２０,T=1.2; LS120..DLX,STD;GS120..4HC..SDX;GS120..(4FC,5F)..(DLX,STD);GS126,LS126,MS120,YS120. .DSL,EFI,LPG;GS120,121,MS123,125..(4H,4HC)..(DLX,ROY,SAL,STD) 厚さ＝１．２０,T=1.2 |
90520-17042 |
from US $0.82 |
||
|
45201B
|
45201B
90520-17196 Ring, Shaft Snap(For Steering Main Shaft)[08.1983 - 08.1987] GS120,LS120..WG..SDX 厚さ＝１．３５−１．４５,T=1.4; LS120..DLX,STD;GS120..4HC..SDX;GS120..(4FC,5F)..(DLX,STD);GS126,LS126,MS120,YS120. .DSL,EFI,LPG;GS120,121,MS123,125..(4H,4HC)..(DLX,ROY,SAL,STD) 厚さ＝１．３５−１．４５,T=1.4 |
90520-17196 |
US $2.97 |
||
|
45201G
|
45201G
90501-29388
Spring, Compression(For Steering Main Shaft)
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 LWR |
90501-29388 |
— | ||
|
45202
|
45202
45220-30040 Shaft Sub-Assy, Steering Intermediate[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
45220-30040 |
US $47.47 |
||
|
45205
|
45205
45870-30150 Tube Sub-Assy, Steering Column[08.1983 - 08.1987] GS120,LS120..WG..SDX; LS120..DLX,STD;GS120..4HC..SDX;GS120..(4FC,5F)..(DLX,STD);GS126,LS126,MS120,YS120. .DSL,EFI,LPG;GS120,121,MS123,125..(4H,4HC)..(DLX,ROY,SAL,STD) |
45870-30150 |
US $144.14 |
||
|
45214
|
45214
45214-30040
Retainer, Main Shaft Spring
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
45214-30040 |
— | ||
|
45221A
|
45221A
90250-10059 Pin(For Steering Intermediate Shaft)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
90250-10059 |
US $9.05 |
||
|
45222C
|
45222C
90521-52003 Ring, Hole Snap(For Dust Cover)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
90521-52003 |
US $3.32 |
||
|
45222D
|
45222D
90301-23054 Ring, O(For Dust Cover)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
90301-23054 |
from US $3.37 |
||
|
45222F
|
45222F
45222-30030 Cover, Steering Gear Dust[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
45222-30030 |
from US $9.73 |
||
|
45224
|
45224
45224-30040 Block, Bearing(For Steering Flexible Coupling)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 １５．９７−１６．００,L=15.97-16.00 |
45224-30040 |
from US $8.53 |
||
|
45224
|
45224
45225-30040 Block, Bearing(For Steering Flexible Coupling)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 １６．００−１６．０３,L=16.00-16.03 |
45225-30040 |
US $12.01 |
||
|
45226
|
45226
45226-30020
Anti-Rattle(For Steering Flexible Coupling)
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
45226-30020 |
— | ||
| replacement | |||||
|
45226
|
45226
45226-30021 Anti-Rattle(For Steering Flexible Coupling)[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
45226-30021 |
from US $4.86 |
||
|
45230
|
45230
45230-30100
Coupling Assy, Flexible
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
45230-30100 |
— | ||
|
45230A
|
45230A
90101-08230
Bolt, Hexagon(For Steering Flexible Copling Set)
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
90101-08230 |
— | ||
|
45253
|
45253
45025-30100 Cover, Steering Column Hole[08.1983 - 09.1985] GS12#,LS12#,MS12#,YS120..4FC,5F |
45025-30100 |
US $40.62 |
||
|
45253
|
45253
45025-30150 Cover, Steering Column Hole[09.1985 - 08.1987] GS12#,LS12#,MS12#,YS120..4FC,5F |
45025-30150 |
US $49.21 |
||
|
45254
|
45254
45254-30090
Shield, Steering Column Hole
[08.1983 - 08.1985] GS12#,LS12#,MS12#,YS120 |
45254-30090 |
— | ||
|
45254
|
45254
45254-30110 Shield, Steering Column Hole[08.1985 - 08.1987] GS12#,LS12#,MS12#,YS120 |
45254-30110 |
US $8.59 |
||
|
45255
|
45255
45255-30040 Plate, Steering Column Hole Cover[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
45255-30040 |
US $8.30 |
||
|
45255D
|
45255D
90301-59001 Grommet Or Ring, O(For Steering Column Clamp)[02.1984 - 08.1987] GS12#,LS12#,MS12#,YS120 |
90301-59001 |
US $8.30 |
||
|
45255D
|
45255D
90301-60122 Grommet Or Ring, O(For Steering Column Clamp)[08.1983 - 02.1984] GS12#,LS12#,MS12#,YS120 |
90301-60122 |
US $8.91 |
||
|
45269
|
45269
45269-10010 Retainer, Main Shaft Bearing[08.1983 - 08.1987] GS120,LS120..WG..SDX; LS120..DLX,STD;GS120..4HC..SDX;GS120..(4FC,5F)..(DLX,STD);GS126,LS126,MS120,YS120. .DSL,EFI,LPG;GS120,121,MS123,125..(4H,4HC)..(DLX,ROY,SAL,STD) |
45269-10010 |
US $6.41 |
||
|
45280A
|
45280A
45280-30330 Bracket Assy, Steering Column, Upper[08.1983 - 08.1987] GS126,LS126..4FC,5F; MS120..4FC..LPG; GS120,LS120..WG..(4FC,5F)..SDX; GS120,LS120,YS120..(4FC,5F)..(DLX,STD) |
45280-30330 |
US $281.01 |
||
|
9011908185
|
9011908185
90119-08185 New Genuine Part |
90119-08185 |
US $1.75 |
||
| replacement | |||||
|
9011908185
|
9011908185
90119-08165 New Genuine Part |
90119-08165 |
US $2.62 |
||
|
9017910053
|
9017910053
90179-10053 New Genuine Part |
90179-10053 |
US $2.04 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.43 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.43 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
