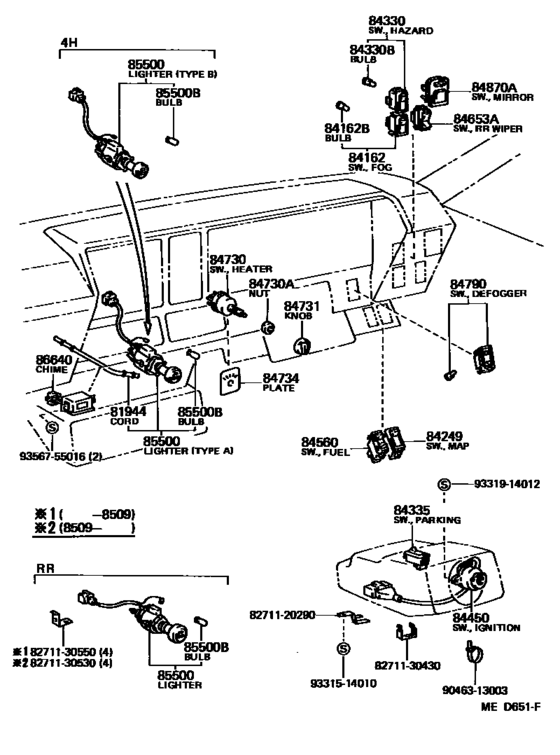

Switch & Relay & Computer ([08.1983 - ] (8308- )LPG ; (8308- )LS120..STD ; (8308- )GS120..5F..STD ; (8308- )LS1 20..4H..DLX ; (83 08- )GS120,126,LS126..4H) Diagram Toyota CROWN/ MAJESTA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- MS120
- grade
- SDX
- body
- SED
- ENGINE
- MPU
- TRANSMISSION
- ATM
- Model
- CROWN
- From
- 08.1983
- To
- 08.1987
- Gear Shift Type
- 4FC
- Fuel Induction
- LPG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81944
|
81944
81944-20021
Cord, Optical Fiber
[08.1983 - 08.1987] GS120,LS120..4H..(DLX,SDX);GS126,MS120,YS120..(4FC,4H,4HC)..(DLX,SDX) |
81944-20021 |
— | ||
|
84162
|
84162
84162-30070 Switch, Front Fog Lamp[08.1983 - 08.1987] MS120..SDX;GS120..4H..SDX |
84162-30070 |
US $54.31 |
||
| replacement | |||||
|
84162
|
84162
84160-95J02 Switch, Front Fog Lamp[08.1983 - 08.1987] MS120..SDX;GS120..4H..SDX |
84160-95J02 |
US $54.16 |
||
|
84162B
|
84162B
84999-10110 Bulb, Indicator Lamp[08.1983 - 08.1987] MS120..SDX;GS120..4H..SDX １２Ｖ １．１２Ｗ,12V 1.1W |
84999-10110 |
US $8.06 |
||
|
84249
|
84249
84249-30020 Switch, Map Lamp[08.1983 - 09.1985] GS120..4H..DLX;LS120..4H..STD;MS120,YS120..LPG |
84249-30020 |
US $54.31 |
||
|
84330
|
84330
84332-30140 Switch Assy, Hazard Warning Signal[08.1983 - 08.1987] LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H |
84332-30140 |
US $46.30 |
||
| replacement | |||||
|
84330
|
84330
84332-20190 Switch Assy, Hazard Warning Signal[08.1983 - 08.1987] LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H |
84332-20190 |
US $54.16 |
||
|
84330B
|
84330B
84999-10110 Bulb, Indicator Lamp[08.1983 - 08.1987] LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H １２Ｖ １．１２Ｗ,12V 1.12W |
84999-10110 |
US $8.06 |
||
|
84335
|
84335
84330-30100 Switch Assy, Parking Lamp[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
84330-30100 |
US $38.29 |
||
|
84450
|
84450
84450-10090
Switch Assy, Ignition Or Starter
[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120 |
84450-10090 |
— | ||
|
84560
|
84560
84560-30040 Switch Assy, Fuel Valve Control[08.1983 - 08.1987] MS120,YS120..LPG |
84560-30040 |
US $77.17 |
||
|
84730
|
84730
84732-30160 Switch Assy, Heater Blower[08.1983 - 09.1985] LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H |
84732-30160 |
US $39.60 |
||
|
84730
|
84730
84732-30190 Switch Assy, Heater Blower[08.1983 - 09.1985] LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H W/COOLER |
84732-30190 |
US $42.52 |
||
|
84730
|
84730
84732-30200 Switch Assy, Heater Blower[09.1985 - 08.1987] LS120..STD;MS120,YS120;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H |
84732-30200 |
US $56.06 |
||
|
84730
|
84730
84732-30210 Switch Assy, Heater Blower[09.1985 - 08.1987] LS120..STD;MS120,YS120;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H W/COOLER |
84732-30210 |
US $56.06 |
||
|
84730A
|
84730A
90170-11206 Nut, Heater Blower Switch[08.1983 - 08.1987] LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H |
90170-11206 |
US $1.93 |
||
|
84731
|
84731
84731-12032 Knob, Cooler Switch[08.1983 - 08.1987] LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H W/COOLER |
84731-12032 |
from US $6.38 |
||
|
84731
|
84731
84731-20030 Knob, Cooler Switch[08.1983 - 08.1987] LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H |
84731-20030 |
US $5.50 |
||
| replacement | |||||
|
84731
|
84731
84731-60060 KNOB[08.1983 - 08.1987] LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H |
84731-60060 |
from US $4.43 |
||
|
84734
|
84734
55523-30050 Plate, Heater Blower Switch Caution[08.1983 - 09.1985] LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H |
55523-30050 |
US $7.43 |
||
|
84734
|
84734
55523-30070 Plate, Heater Blower Switch Caution[09.1985 - 08.1987] LS120..STD;MS120,YS120;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H |
55523-30070 |
US $7.43 |
||
|
84734
|
84734
81942-30020
Plate, Heater Blower Switch Caution
[08.1983 - 09.1985] LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H W/COOLER |
81942-30020 |
— | ||
|
84734
|
84734
81942-30050 Plate, Heater Blower Switch Caution[09.1985 - 08.1987] LS120..STD;MS120,YS120;GS120..5F..STD;LS120..4H..DLX;GS120,126,LS126..4H W/COOLER |
81942-30050 |
US $5.39 |
||
|
84790
|
84790
84790-30160 Switch Assy, Rear Window Defogger[08.1983 - 08.1987] GS120..4H;LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG |
84790-30160 |
US $100.46 |
||
|
84870A
|
84870A
84870-30050 Switch Assy, Outer Mirror[08.1983 - 08.1987] MS123,125..4HC;GS120,121..HT..4HC;MS123,125..SED..4FC;GS121,126..(SED,V)..(ROY,SDX );GS120,LS120,MS120,YS120..(SED,WG)..(DLX,SAL,SDX) FENDER,*RCM |
84870-30050 |
US $72.65 |
||
| replacement | |||||
|
84870A
|
84870A
84870-24020 Switch Assy, Outer Mirror[08.1983 - 08.1987] MS123,125..4HC;GS120,121..HT..4HC;MS123,125..SED..4FC;GS121,126..(SED,V)..(ROY,SDX );GS120,LS120,MS120,YS120..(SED,WG)..(DLX,SAL,SDX) FENDER,*RCM |
84870-24020 |
US $85.90 |
||
|
85500
|
85500
85500-30311 Lighter Assy, Cigarette[08.1983 - 08.1987] GS12#,LS12#,MS12#,YS120..4FC,5F RR |
85500-30311 |
US $51.83 |
||
|
85500
|
85500
85500-30370 Lighter Assy, Cigarette[08.1983 - 08.1987] GS120,LS120..4H..(DLX,SDX);GS126,MS120,YS120..(4FC,4H,4HC)..(DLX,SDX) FR,W/LIGHTING,TYPE A |
85500-30370 |
US $66.68 |
||
|
85500B
|
85500B
90981-11014 Bulb, Position Indicator Lamp[08.1983 - 08.1987] GS126..4H..DLX １４Ｖ １．４Ｗ,FR,W/LIGHTING,TYPE B,12V 1.4W; GS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL)..(DSL,EFI,SPC,TBO,TD,TD E,TWC) １４Ｖ １．４Ｗ,FR,W/LIGHTING,12V 1.4W; GS120,LS120..4H..(DLX,SDX);GS126,MS120,YS120..(4FC,4H,4HC |
90981-11014 |
from US $2.15 |
||
|
86640
|
86640
86640-30060
Chime Assy
[08.1983 - 08.1987] LS120..STD;GS120..5F..STD;LS120..4H..DLX;MS120,YS120..LPG;GS120,126,LS126..4H |
86640-30060 |
— | ||
|
8271120290
|
8271120290
82711-20290 Wire, Fuse To Fuse(for Combustion Heater) |
82711-20290 |
US $8.74 |
||
|
8271130430
|
8271130430
82711-30430 Wire, Fuse To Fuse(for Combustion Heater) |
82711-30430 |
US $12.67 |
||
|
8271130530
|
8271130530
82711-30530 Wire, Fuse To Fuse(for Combustion Heater) |
82711-30530 |
US $3.49 |
||
|
8271130550
|
8271130550
82711-30550 Wire, Fuse To Fuse(for Combustion Heater) |
82711-30550 |
US $2.33 |
||
|
9046313003
|
9046313003
90463-13003 Clamp, Hood Lock Control Wire |
90463-13003 |
US $3.23 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.76 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.25 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
