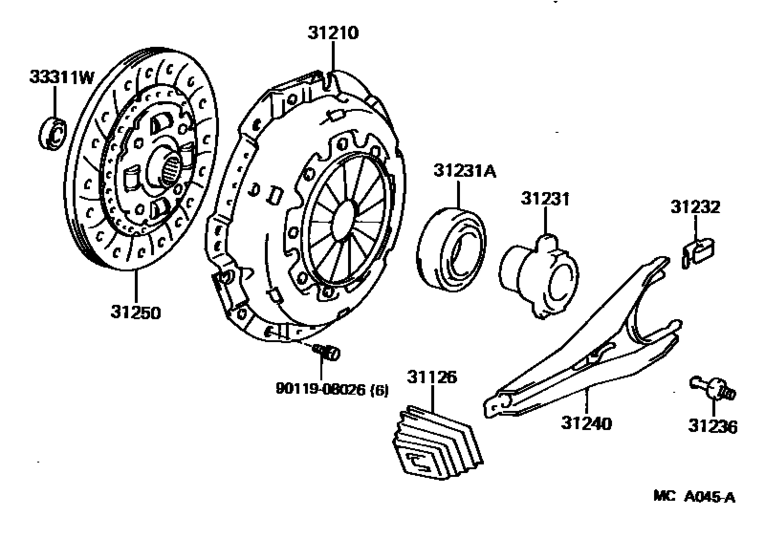

Clutch & Release Fork ([08.1983 - ] (8308- )MS122,123..MTM) Diagram Toyota CROWN/ MAJESTA
- Year
- 1983 - 1987
- Sales region
- Europe
- Frame
- MS122
- grade
- SAL
- body
- SED
- ENGINE
- 5M
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 08.1983
- To
- 08.1987
- Gear Shift Type
- 5F
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-20070 Boot, Clutch Release Fork[08.1983 - 08.1987] LS120,MS122,123..MTM |
31126-20070 |
from US $14.70 |
||
|
31210
|
31210
31210-14121 Cover Assy, Clutch[08.1983 - 08.1987] MS122,123..MTM |
31210-14121 |
US $248.98 |
||
| replacement | |||||
|
31210
|
31210
31210-35281 Cover Assy, Clutch[08.1983 - 08.1987] MS122,123..MTM |
31210-35281 |
from US $191.52 |
||
|
31231
|
31231
31231-36070 Hub, Clutch Release Bearing[08.1983 - 08.1987] MS122,123,YS120..MTM |
31231-36070 |
from US $26.60 |
||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[08.1983 - 08.1987] LS120,MS122,123,YS120..MTM |
90363-40022 |
from US $41.80 |
||
|
31232
|
31232
31232-22010 Clip Or Spring, Release Bearing Hub[08.1983 - 08.1987] LS120,MS122,123,YS120..MTM |
31232-22010 |
from US $0.82 |
||
|
31236
|
31236
31236-30060 Ball, Release Fork[08.1983 - 08.1987] LS120,MS122,123,YS120..MTM |
31236-30060 |
from US $10.24 |
||
|
31240
|
31240
31204-20080 Fork Sub-Assy, Clutch Release[08.1983 - 08.1987] MS122,123..MTM |
31204-20080 |
from US $32.98 |
||
|
31250
|
31250
31250-14130
Disc Assy, Clutch
[08.1983 - 08.1987] MS122,123..MTM |
31250-14130 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-36293 Disc Assy, Clutch[08.1983 - 08.1987] MS122,123..MTM |
31250-36293 |
from US $164.87 |
||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[08.1983 - 08.1987] LS120,MS122,123,YS120..MTM |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[08.1983 - 08.1987] LS120,MS122,123,YS120..MTM |
90363-12024 |
from US $5.91 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.66 |
||
