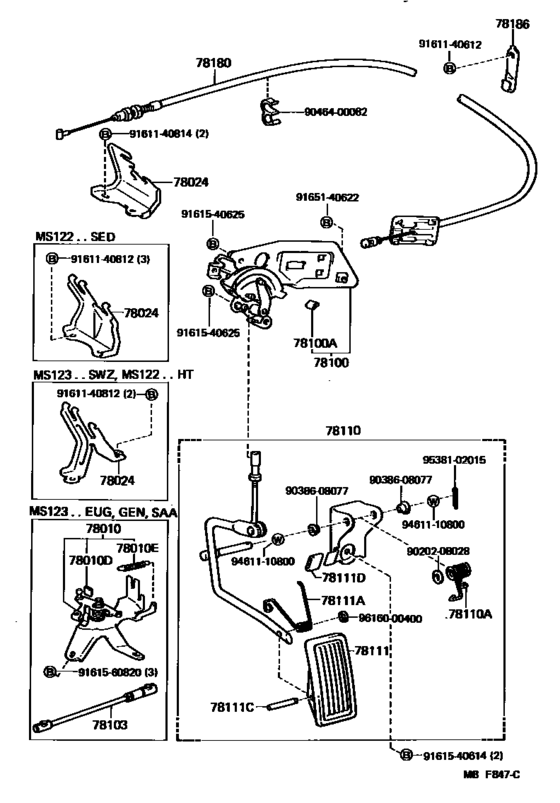

Accelerator Link ([08.1983 - ] (8308- )MS12#,YS120..LHD) Diagram Toyota CROWN/ MAJESTA
- Year
- 1983 - 1987
- Sales region
- Europe
- Frame
- MS122
- grade
- SAL
- body
- SED
- ENGINE
- 5M
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- Model
- CROWN
- From
- 08.1983
- To
- 08.1987
- Gear Shift Type
- 4FC
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-30010 Bracket Sub-Assy, Accelerator Control Cable[08.1983 - 08.1987] MS122..SED |
78024-30010 |
US $35.53 |
||
|
78100
|
78100
78100-30500 Link Assy, AcceleratorACCELERATOR [08.1983 - 08.1987] MS12#,YS120..LHD |
78100-30500 |
US $60.42 |
||
|
78100A
|
78100A
78119-30050 Stopper (For Accelerator Pedal)[08.1983 - 08.1987] LS120,MS12#,YS120..LHD |
78119-30050 |
US $2.77 |
||
|
78110
|
78110
78120-30390
Rod Assy, Accelerator Pedal
[08.1983 - 08.1987] MS123,125..LHD; MS122..LHD..4FC |
78120-30390 |
— | ||
|
78110A
|
78110A
90508-23025 Spring (For Accelerator Pedal Rod)[08.1983 - 08.1987] MS123,125..LHD; MS122..LHD..4FC |
90508-23025 |
US $4.22 |
||
|
78111
|
78111
78111-12100 Pedal, Accelerator[08.1983 - 08.1987] LS120,MS12#,YS120..LHD |
78111-12100 |
from US $18.54 |
||
|
78111A
|
78111A
90508-16064 Spring (For Accelerator Pedal)[08.1983 - 08.1987] LS120,MS12#,YS120..LHD |
90508-16064 |
US $2.77 |
||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[08.1983 - 08.1987] LS120,MS12#,YS120..LHD |
90249-05001 |
US $3.32 |
||
|
78111D
|
78111D
78119-30040 Stopper (For Accelerator Pedal)[08.1983 - 08.1987] LS120,MS12#,YS120..LHD |
78119-30040 |
US $3.49 |
||
|
78180
|
78180
78180-30490 Wire Assy, AcceleratorACCELERATOR [08.1983 - 08.1987] MS122..(SED,WG)..LHD |
78180-30490 |
US $41.35 |
||
|
9020208028
|
9020208028
90202-08028 New Genuine Part |
90202-08028 |
US $0.96 |
||
|
9038608077
|
9038608077
90386-08077 Bush (For Throttle Cam Shaft) |
90386-08077 |
from US $1.44 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.60 |
||
|
9161140612
|
9161140612
91611-40612
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91611-40612 |
— | ||
| replacement | |||||
|
9161140612
|
9161140612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9161540614
|
9161540614
91615-40614 Screw Or Bolt(for Valve Rocker Shaft Lock) |
91615-40614 |
US $1.89 |
||
| replacement | |||||
|
9161540614
|
9161540614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
|
9161540625
|
9161540625
91615-40625 Bolt, W/washer (for Parking Cove & Case) |
91615-40625 |
US $1.89 |
||
| replacement | |||||
|
9161540625
|
9161540625
91611-B0625 Bolt (For Automatic Transmission Oil Pan) |
91611-B0625 |
from US $0.38 |
||
|
9161560820
|
9161560820
91615-60820
Bolt (For Transmission Control Cable Bracket)
|
91615-60820 |
— | ||
| replacement | |||||
|
9161560820
|
9161560820
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9165140622
|
9165140622
91651-40622 New Genuine Part |
91651-40622 |
US $0.67 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
US $1.28 |
||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $1.60 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
